B2496

B2496

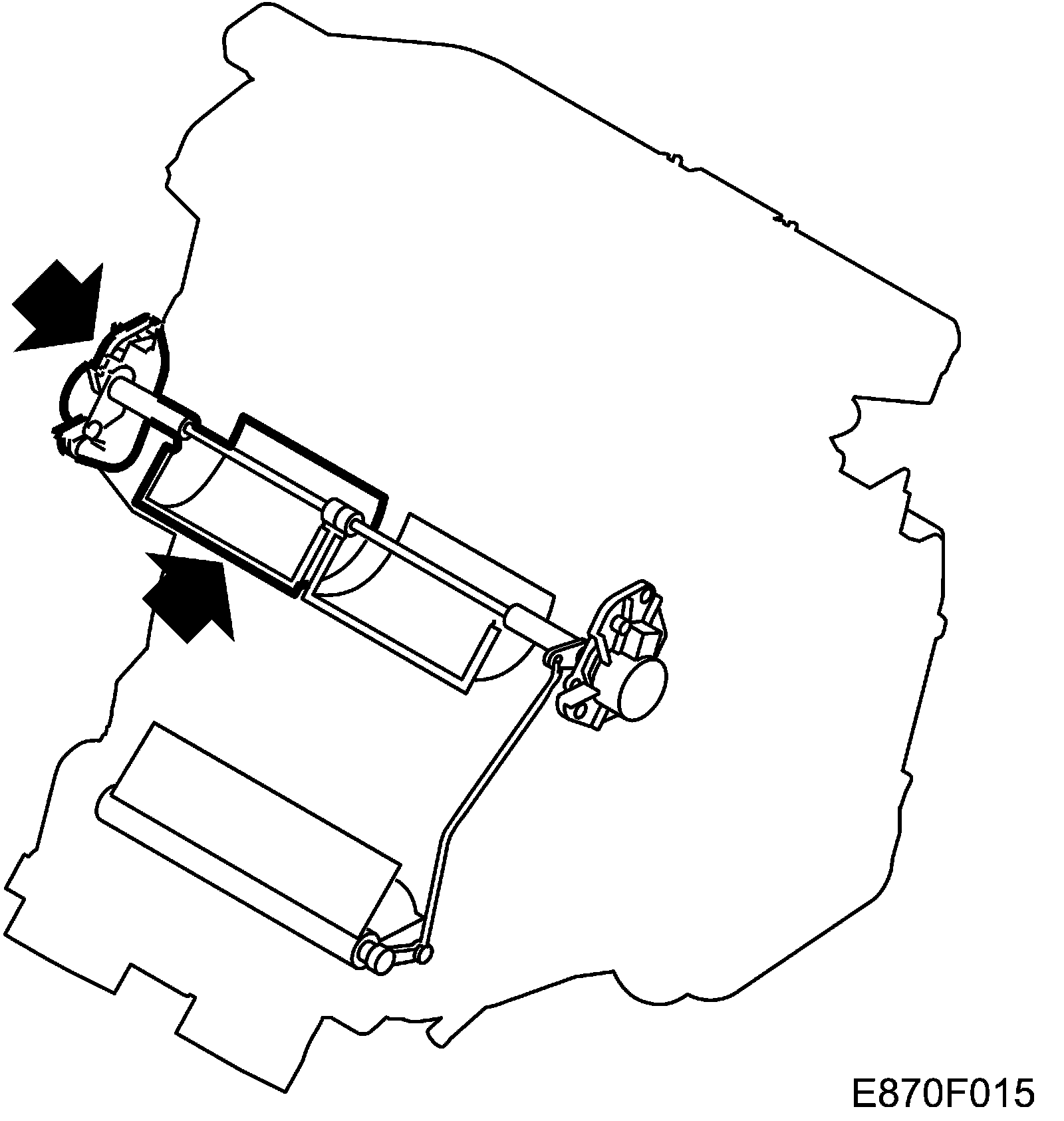

Heater Flap Motor Left. Flap Jammed. Note: May set if not calibrated.












Fault symptoms
Perceived temperature in cabin too high or too low compared to the set temperature.

Conditions
The following conditions apply:

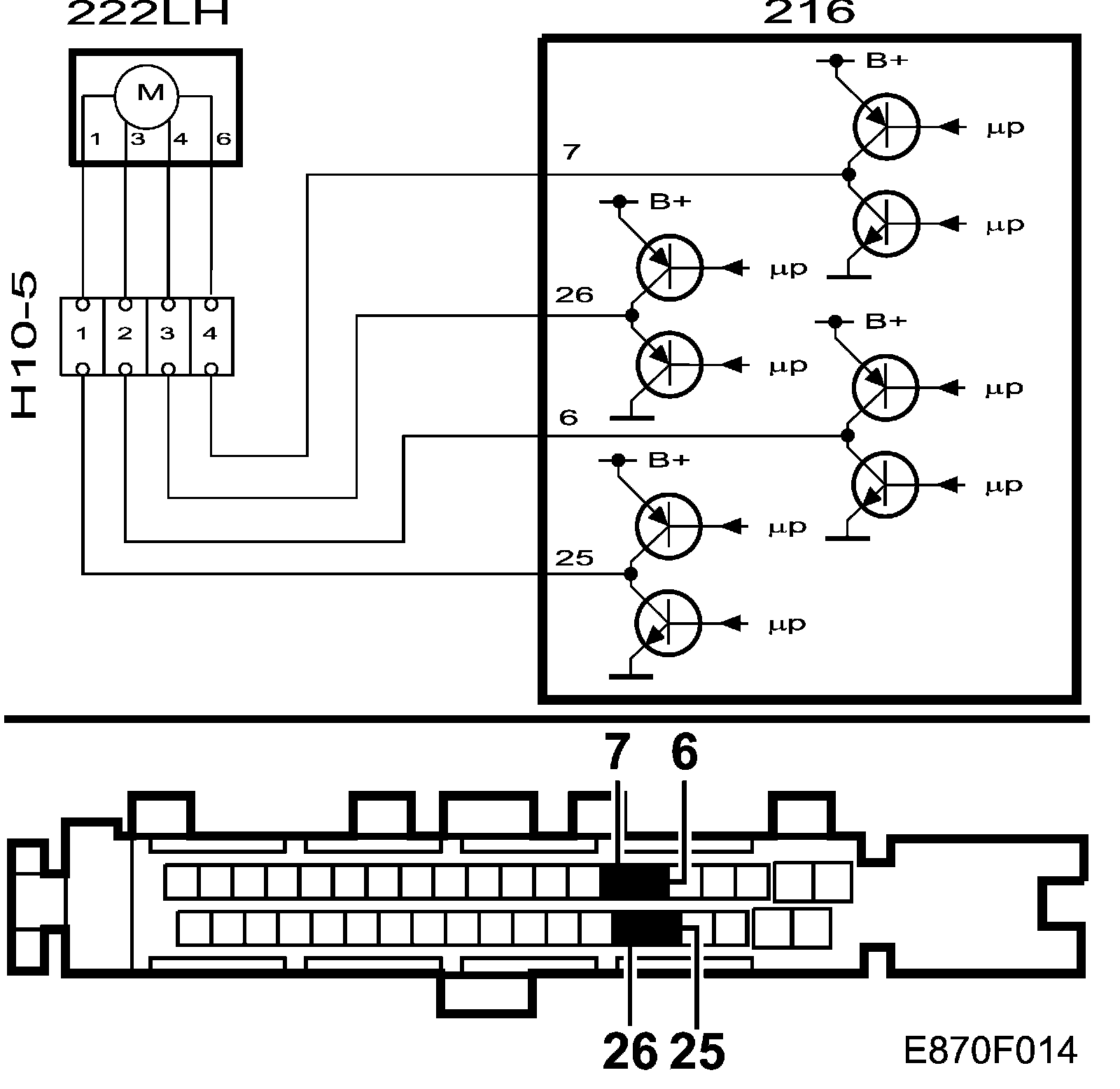

- When the stepping motor operates in the range 10-90 % of its total range (which is 0-100 %), the control module senses if the power consumption is above a certain value, and if this is the case, sets the diagnostic trouble code for jammed flap.
- The diagnostic trouble code can be set if the control module has not been calibrated.
- Continuous monitoring and when calibrating.

Fault Diagnosis Procedure
