B2495

B2495

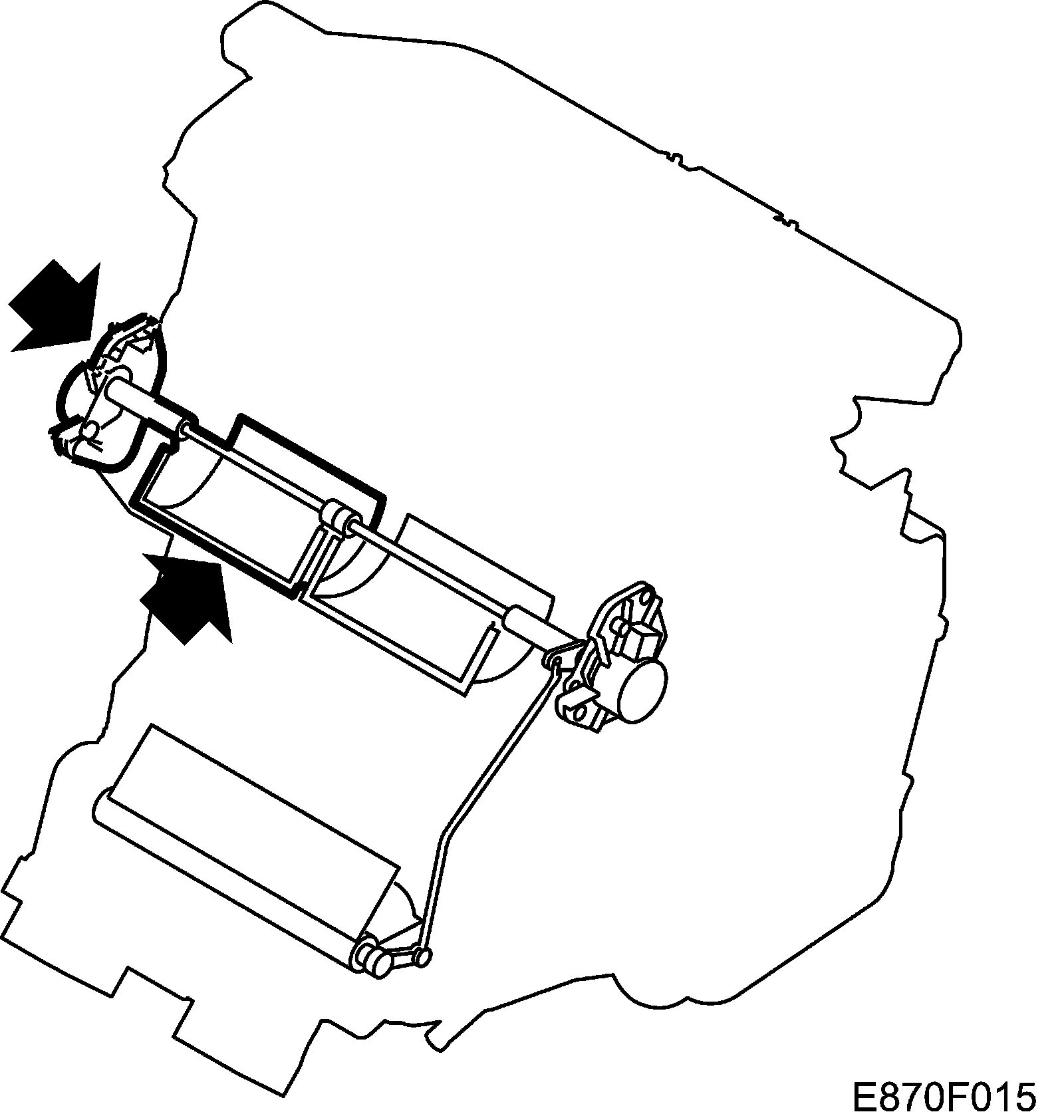

Heater Flap Motor Left. Flap Loose. Note: May set if not calibrated.












Fault symptoms
Perceived temperature in cabin too high or too low compared to the set temperature.

Conditions
The following conditions apply:
- When the control module runs the stepping motor towards an end position and the stepping motor continues more than 20% past the expected end position, the diagnostic trouble code for loose flap is set.
- The diagnostic trouble code can be set if the control module has not been calibrated.
- Continuous monitoring and when calibrating.

Fault Diagnosis Procedure
