B2490

B2490

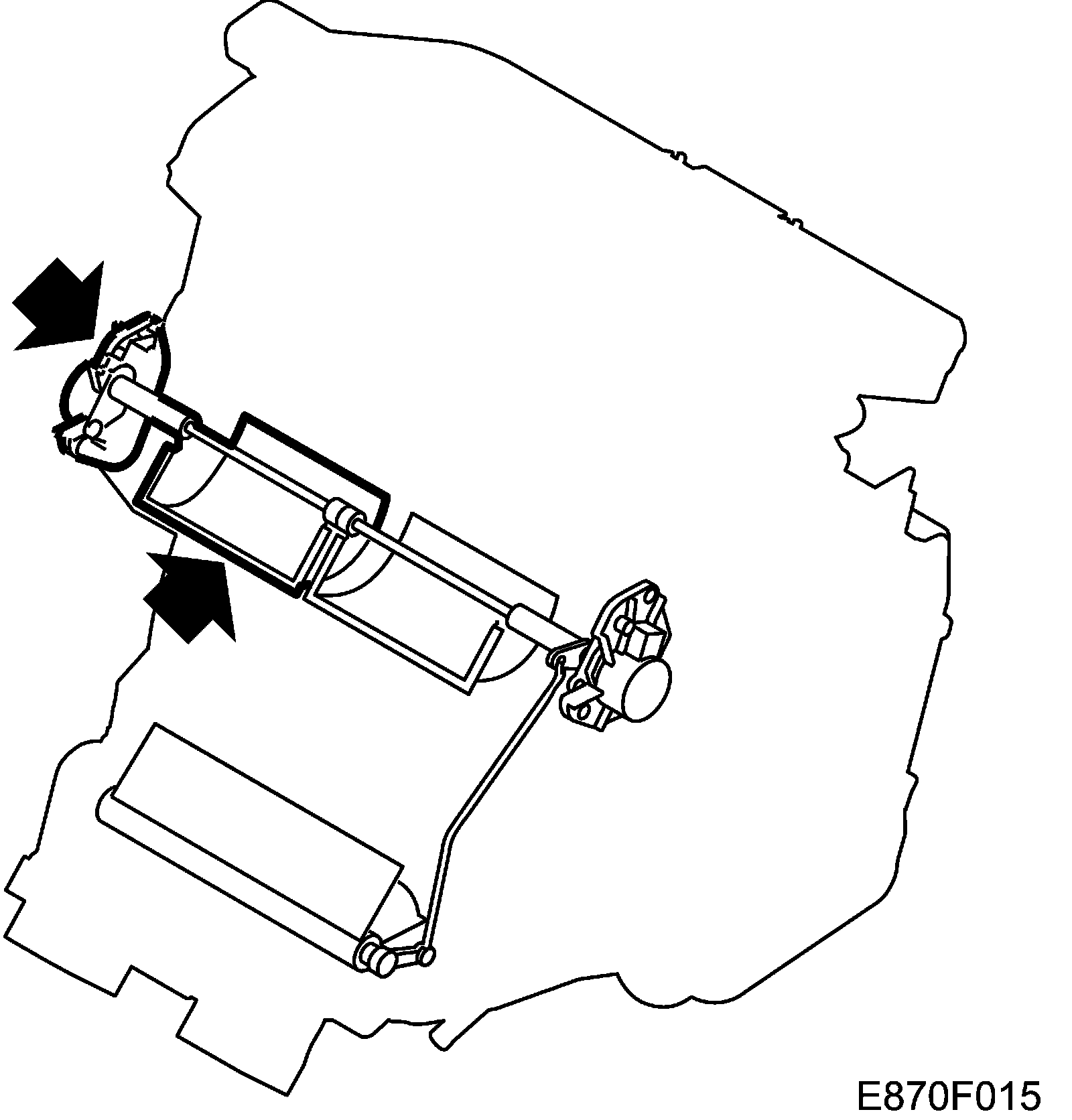

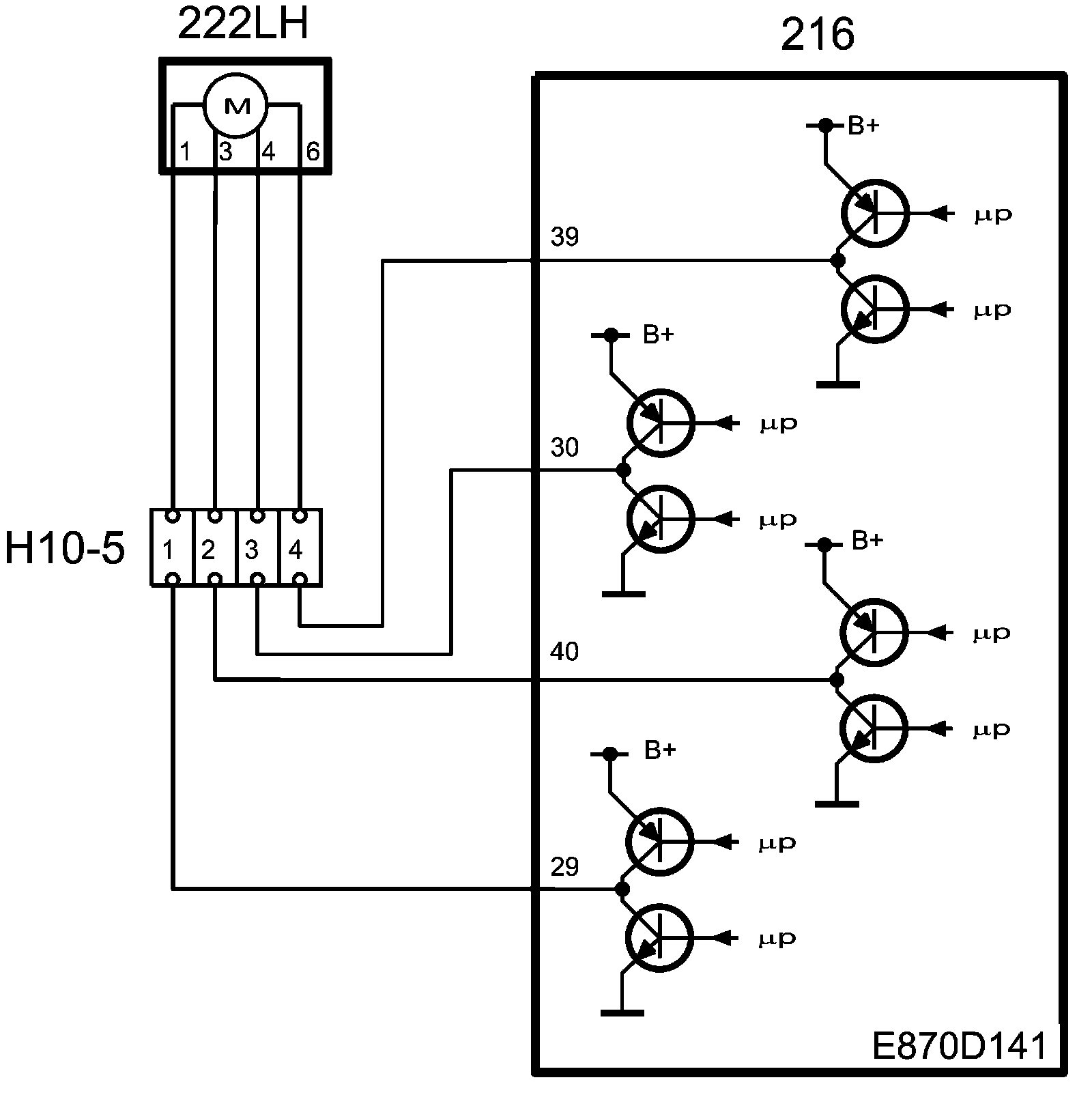

Heater Flap Motor Left. Open Circuit

Heater Flap Motor Left. Short Circuit












Fault symptoms
Perceived temperature in cabin too high or too low compared to the set temperature.

Conditions
The following conditions apply:
- Ignition ON
- If the voltage from the motor is below 0.2 V or exceeds 3 V when the motor is activated.
- Continuous monitoring and with calibration.

Fault Diagnosis Procedure
