B2429

B2429

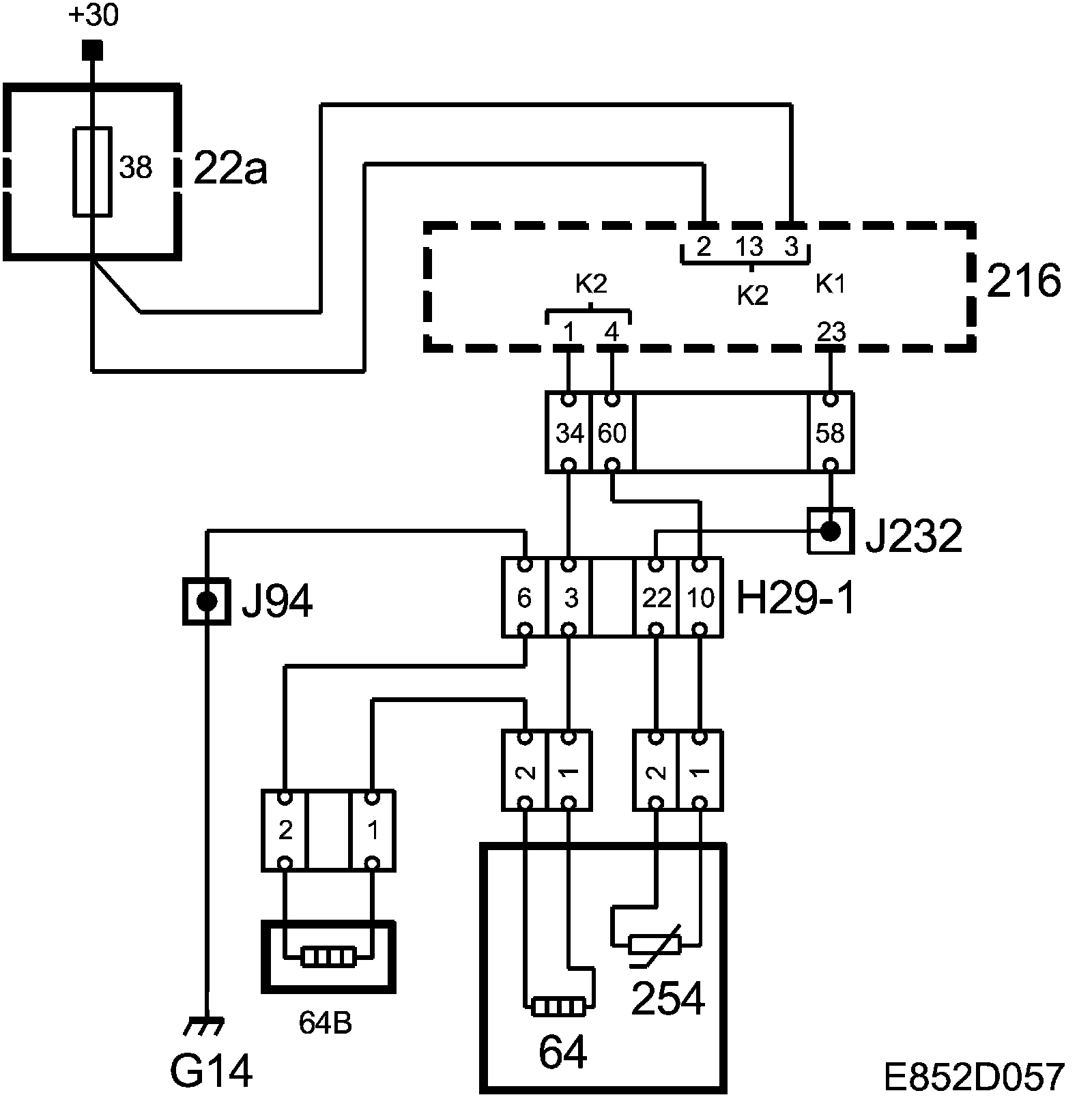

Seat Heating Left Circuit, Open.







Fault symptoms
- No heat in the seat.

Input conditions:
- Ignition ON

Fault criteria:
- The control module receives a signal that is too high when the output is not activated.

Check the wiring
Faults in the control module's female connector could be the cause of the diagnostic trouble code. Check the connector for oxidation, dislodged pins and pin clamping force.

Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short circuits in the wiring harness. Monitor the multimeter, the diagnostic tool or test lamp during the check. In addition, check contacts, connectors and crimp connections for oxidation, dislodged pins and pin clamping force.

Fault Diagnosis Procedure
