B1620

B1620

Airbag ECU, not configured.







Fault symptom
Airbag warning lamp on.

Conditions
Ignition on.

Fault criteria
The control module is not configured

System reaction to a fault
Control module functionality is switched off until it is properly configured.

Diagnostic help

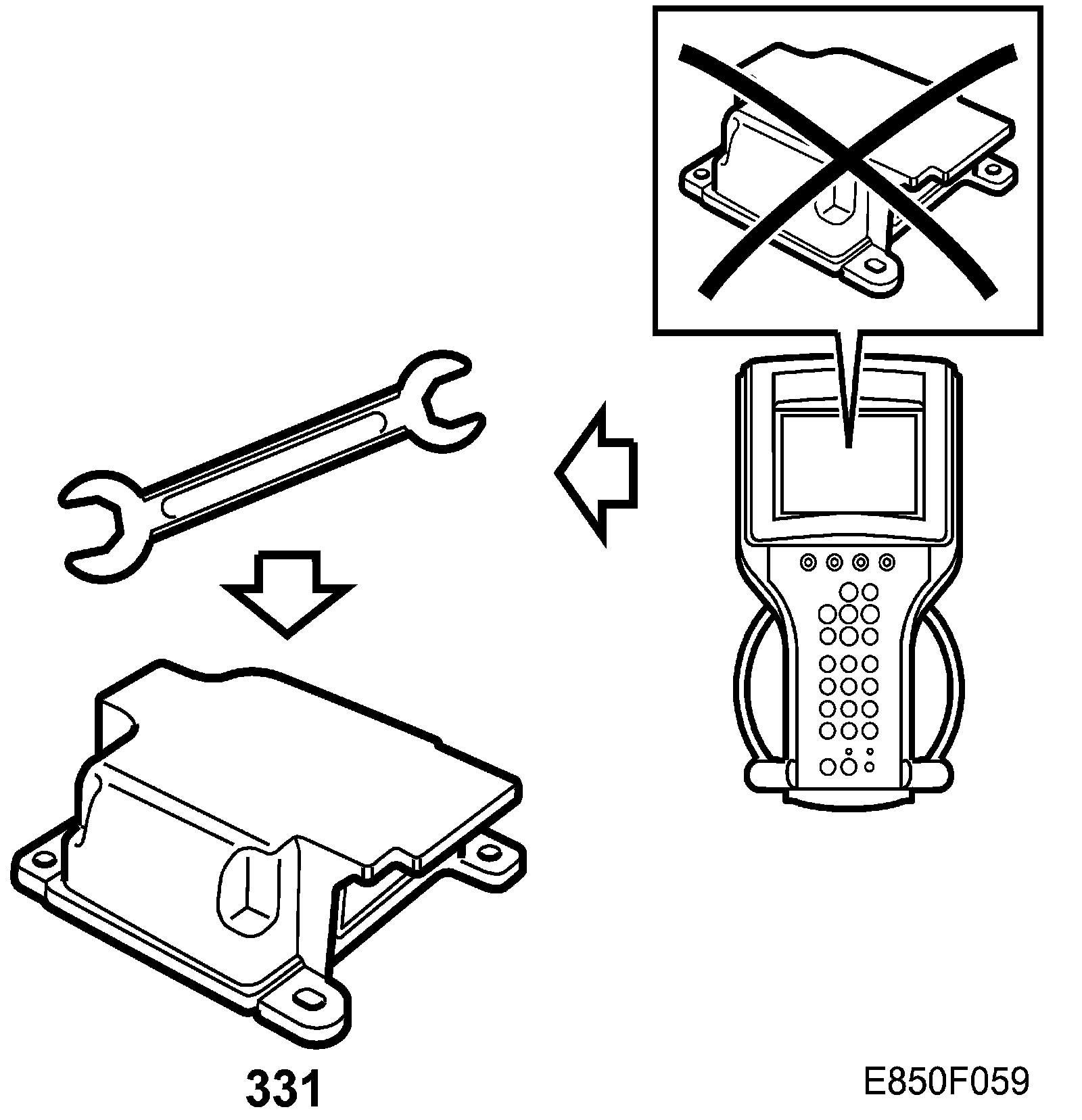

Perform a configuration.
