B1515

B1515
Signal Ground. Missing






Fault symptoms
Malfunction

Condition

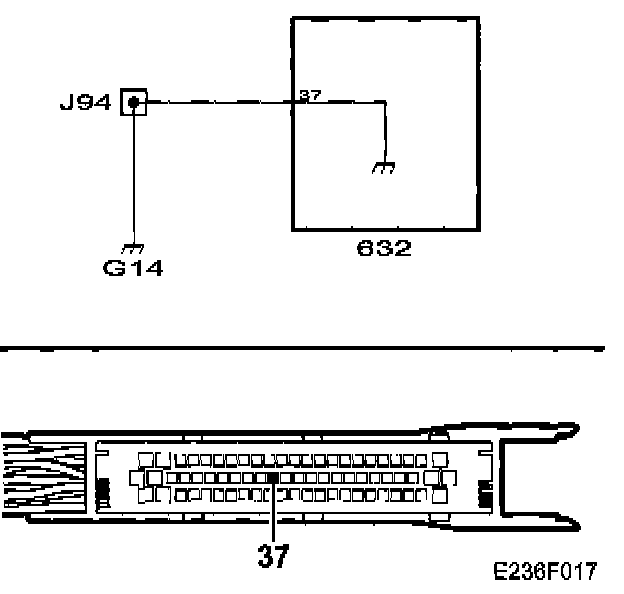

No ground connection at pin 37.

Check wiring harness
Touch and move the wiring harness at several points and in different directions to reveal intermittent breaks and short-circuits in the harness. Monitor the multimeter, test lamp or diagnostic instrument during the test.
