Audio System With Navigation




B1327
Battery Voltage. Too Low

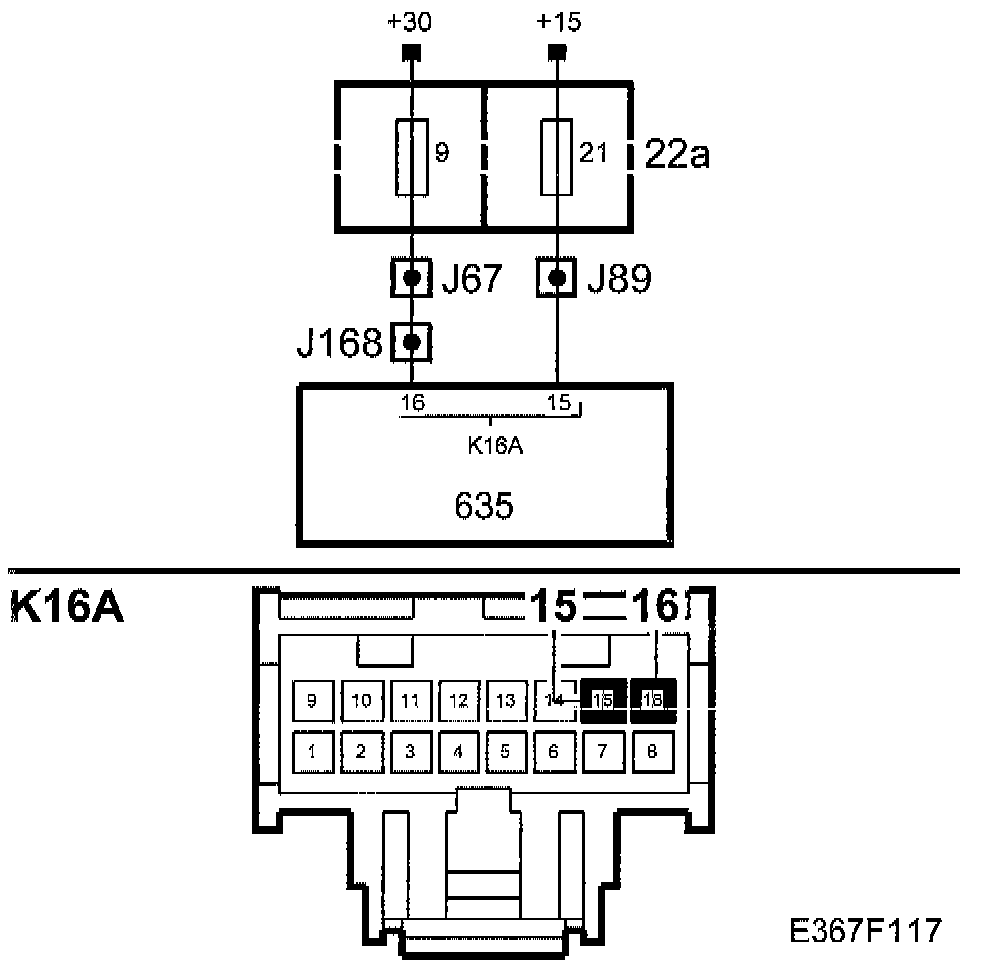

Diagram:






Type of Diagnosis
Continuous

Enable Criteria
Ignition ON.

Fault Criteria
Voltage < 9 V for 1.2 seconds.

System Reaction To A Fault
None
