B1160

B1160

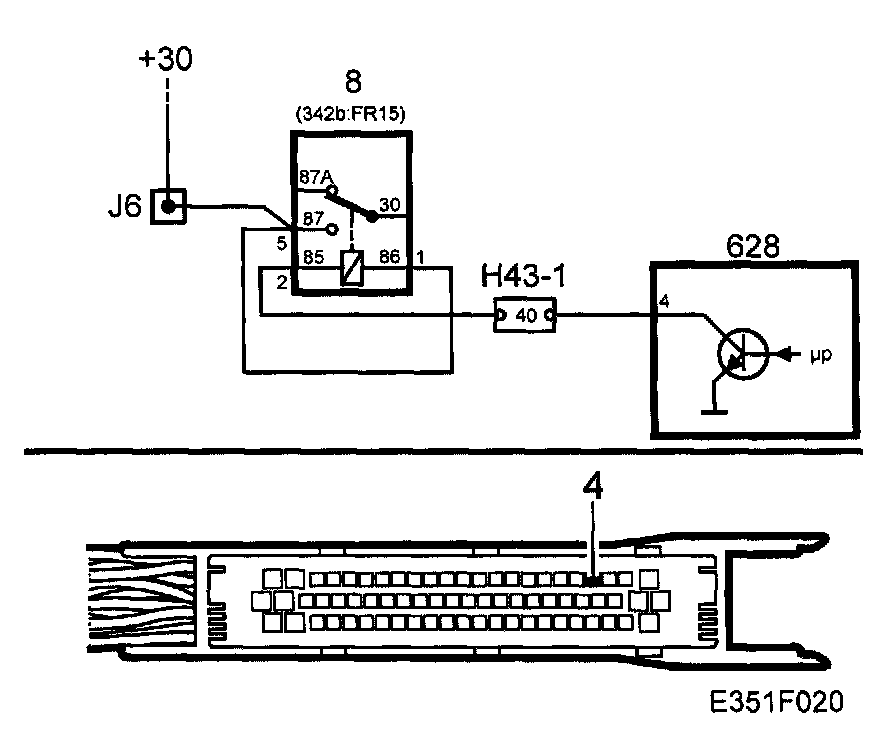

Dipped beam relay







Fault symptoms
Dipped beam does not work.
Dipped beam malfunction

Condition
The control module output is monitored and a DTC generated if there is a:
^ Open/short circuit to ground.
^ Shorting to battery positive B+.

DTCs are not generated if the voltage is below 11 V or during diagnostic communication.

Diagnostic help
The output from DICE can be activated with the diagnostic tool.

DTCs are not generated if the voltage is below 11 V or during diagnostic communication with DICE.
