B1115

B1115

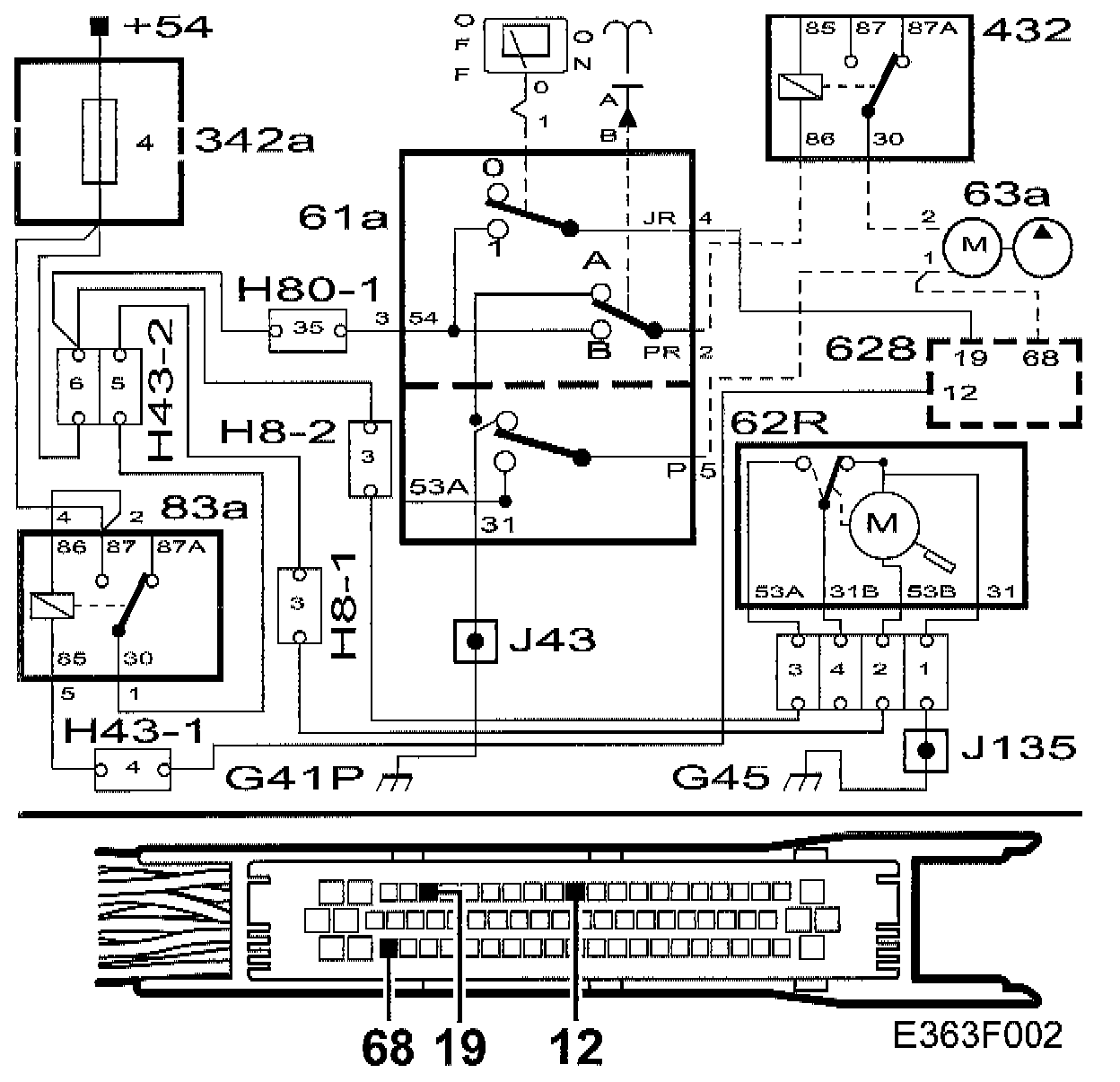

Rear Window Wiper Relay






Fault symptoms
Rear window wiper not working.

Conditions
The control module output is monitored and a DTC generated if there is a:
^ Break/short circuit to ground.
^ Short circuit to B+.

DTCs are not generated if the voltage is below 11 V and the diagnostic communication is in use.

Diagnostic help
The output from DICE can be activated with the diagnostic tool.
