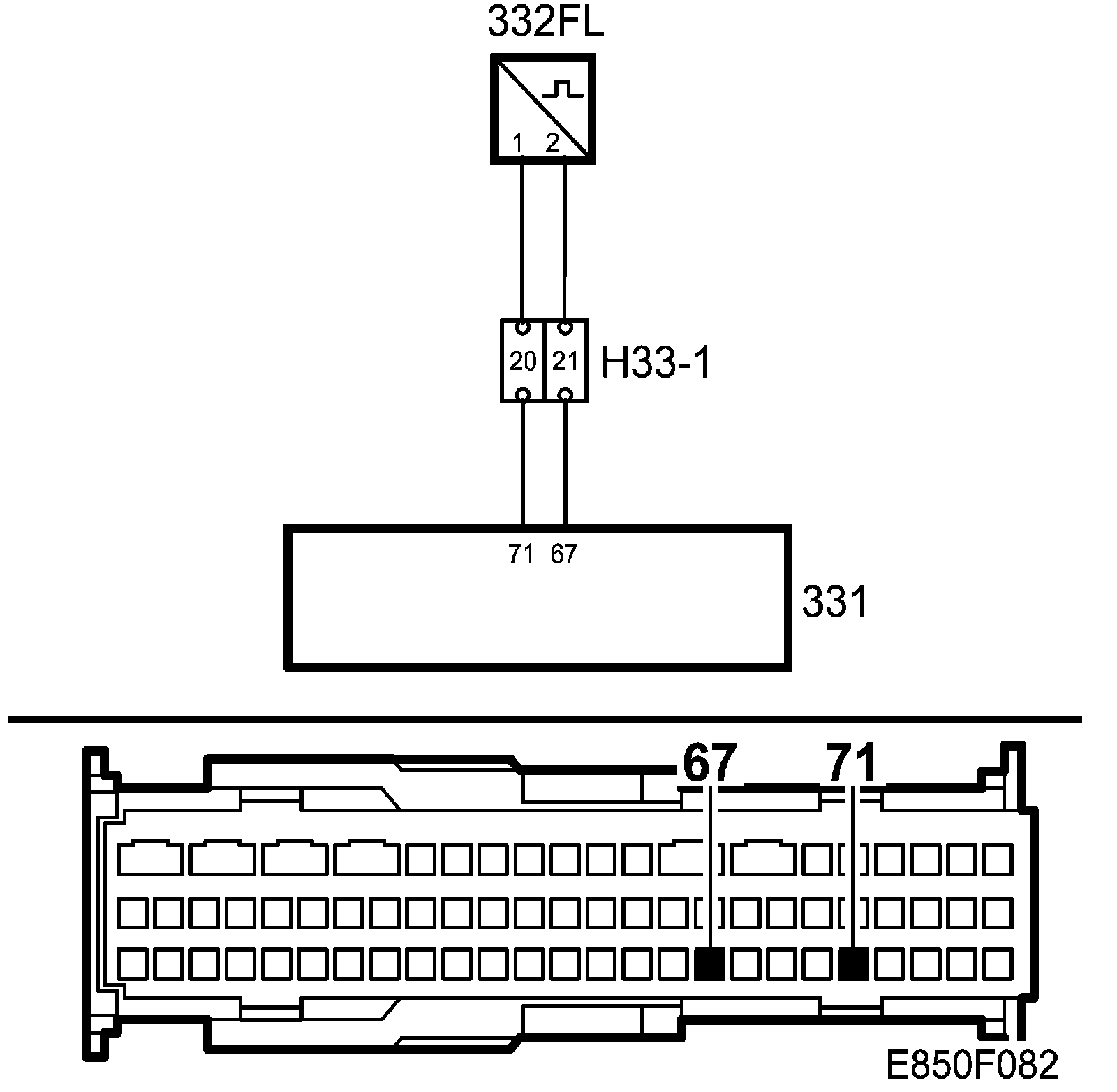

B0100 Front Collision Sensor Left, open circuit or short to ground/B+







Fault symptom
Airbag warning lamp on.

Conditions
Ignition on

Fault criteria
The control module has detected a fault in communication with the front left impact sensor.

System reaction to a fault
The control module ignores all signals from the impact sensor as long as the fault is present.

Diagnostic help
Fault Diagnosis Procedure
