B0077

B0077

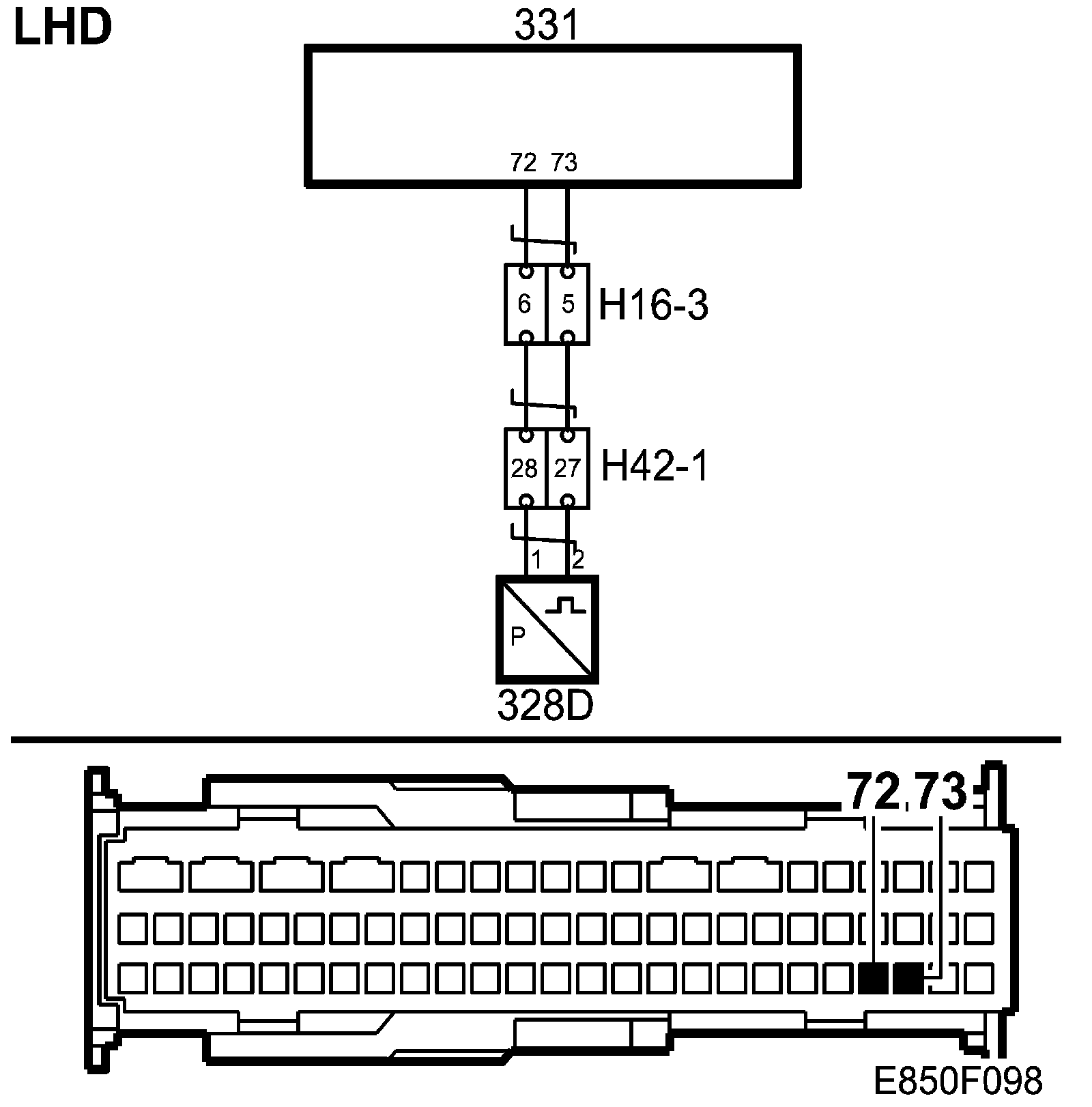

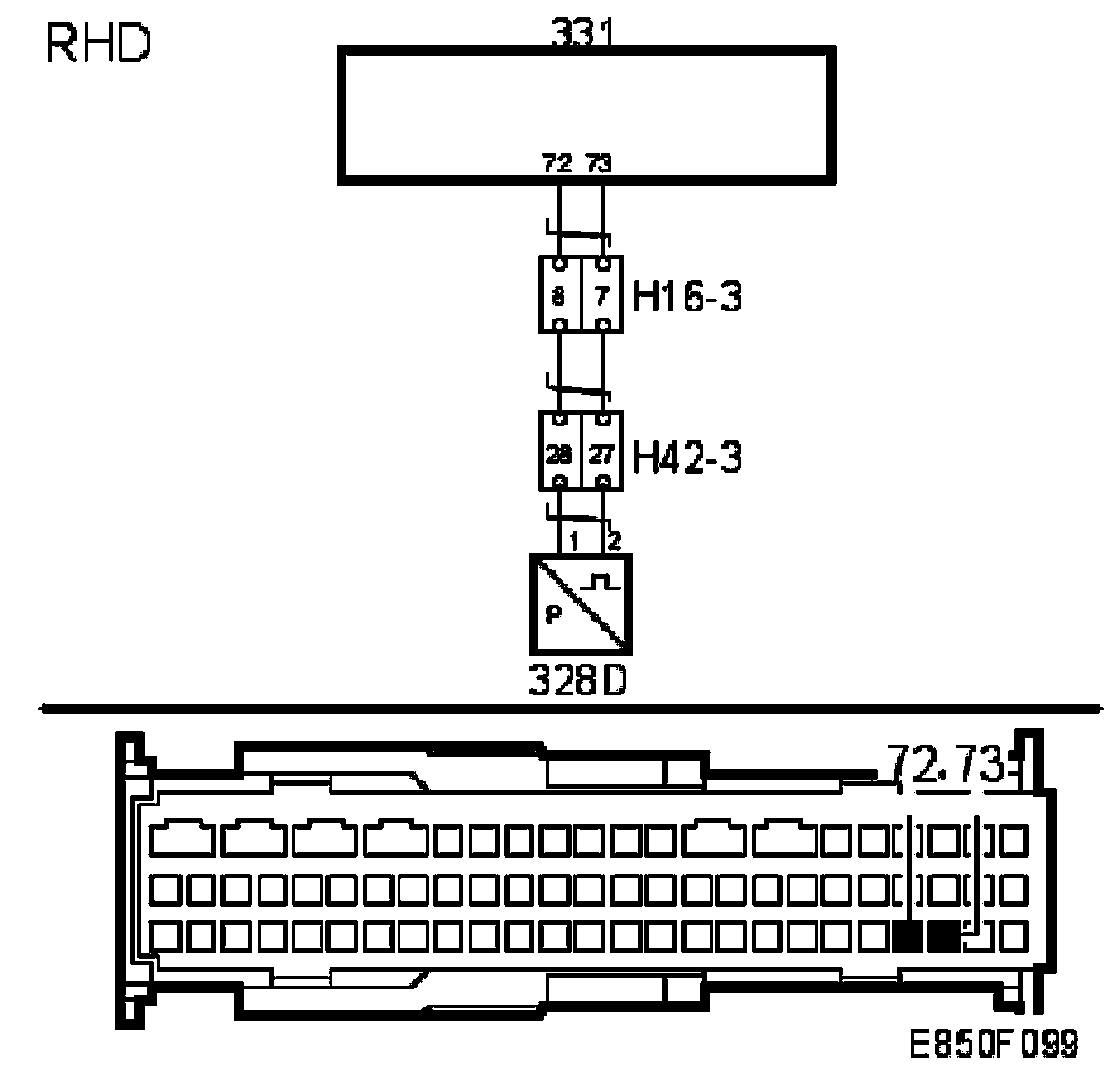

B0077 Driver Side Airbag Sensor, Open circuit or short to ground/B+.










Fault symptoms
Airbag warning lamp on.

Conditions
Ignition ON

Fault criteria
Upon ignition, the control module will check that the correct side impact sensor is mounted. If the control module detects that a side impact sensor for the passenger side is mounted on the driver's side, a DTC is set.

System reaction to a fault
The control module ignores all signal from the impact sensor as long as the fault is present.

Diagnostic help

Fault Diagnosis Procedure
