Rear Door Window Motor: Service and Repair

Window Lift Motor, Rear

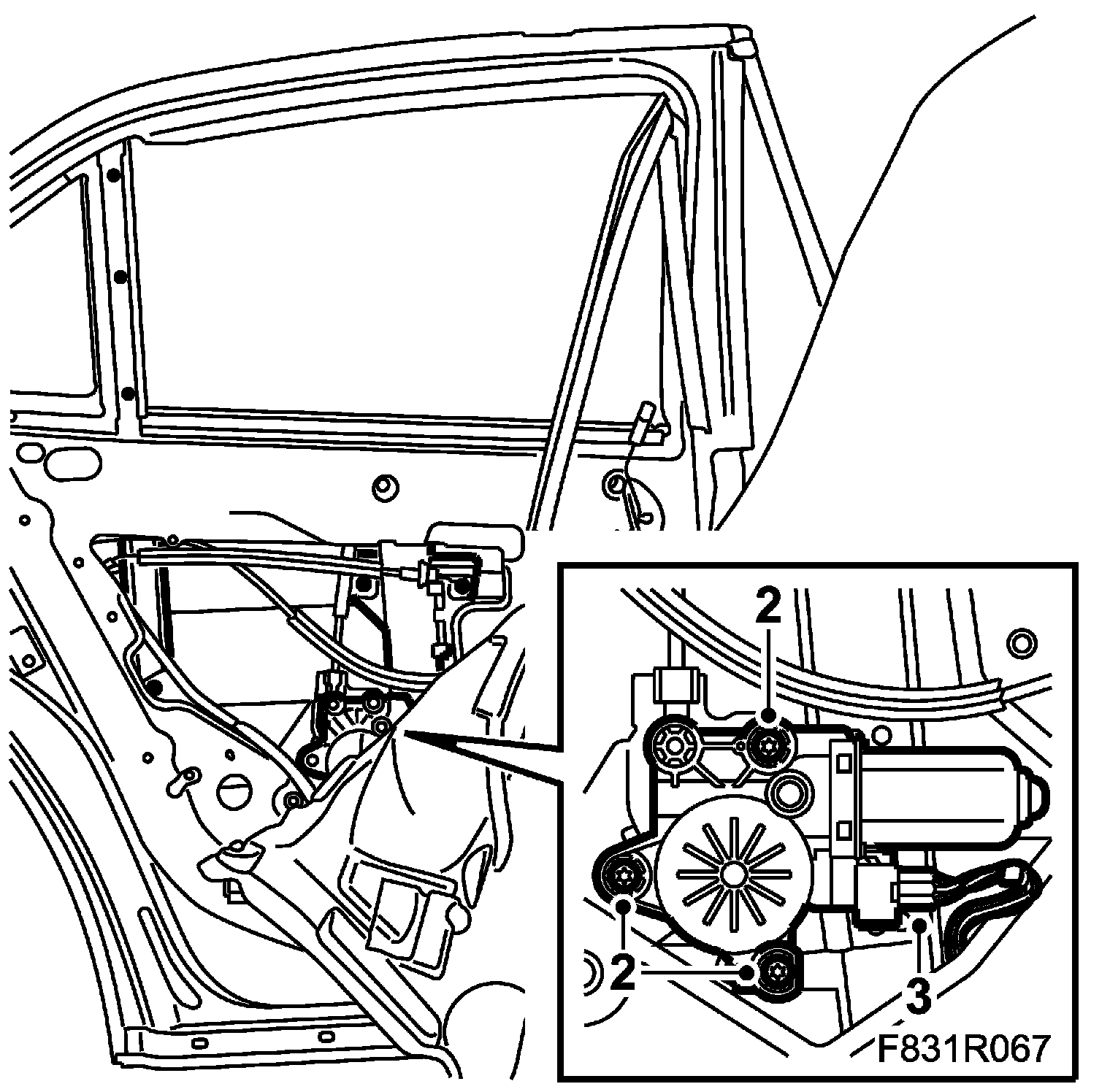

To remove

1. Remove Door trim, rear and the water barrier.
2. Remove the bolts securing the electric motor.





3. Lift out and unplug the motor.

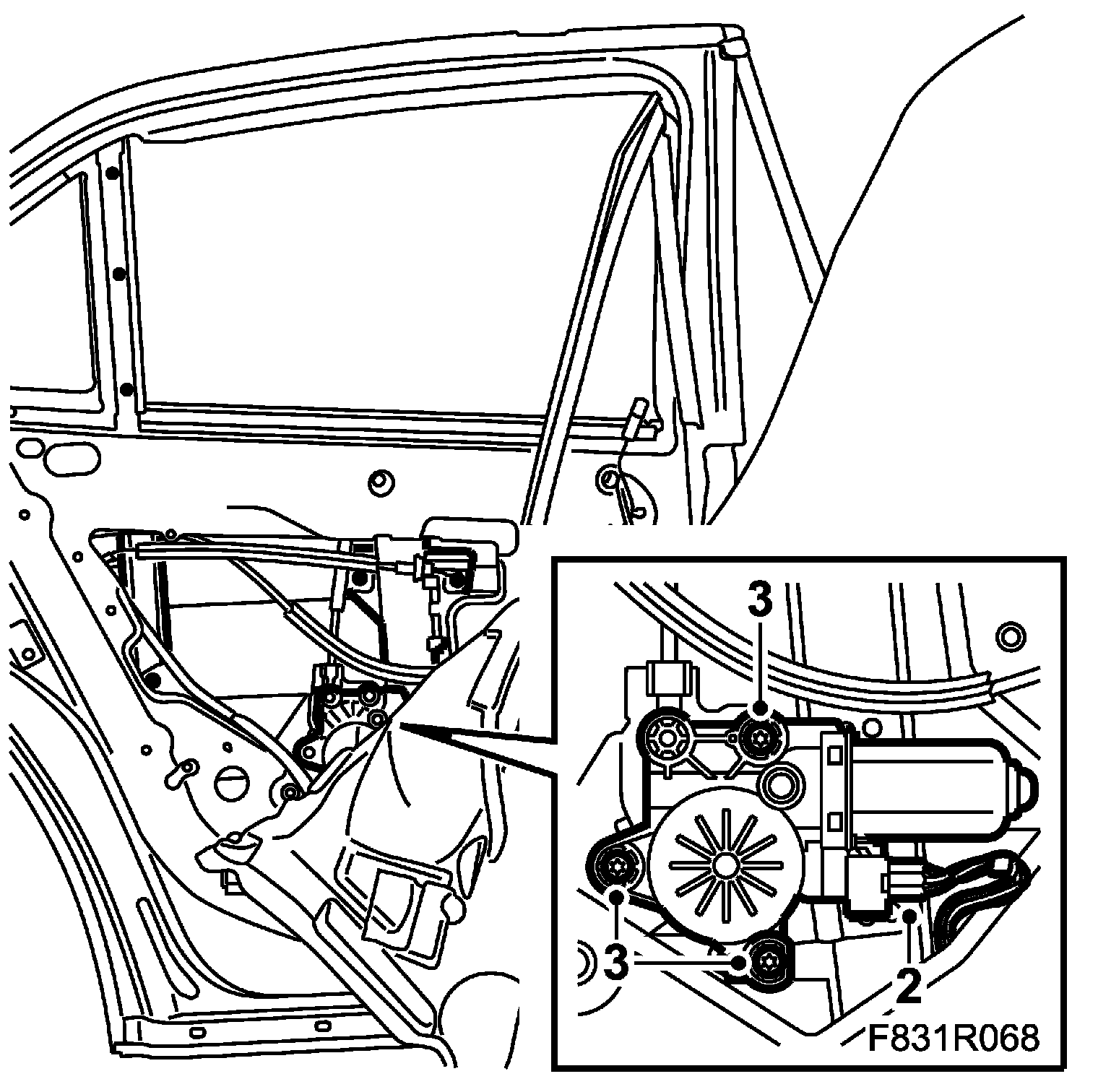

To fit

1. Guide in the motor using the locating pins.
2. Plug in the connector.





3. Fit the bolts securing the motor.
4. Check the operation of the window lift.
5. Fit the water barrier and Door trim, rear.
Cars with pinch protection: Perform Calibration of pinch protection.
