Part 4

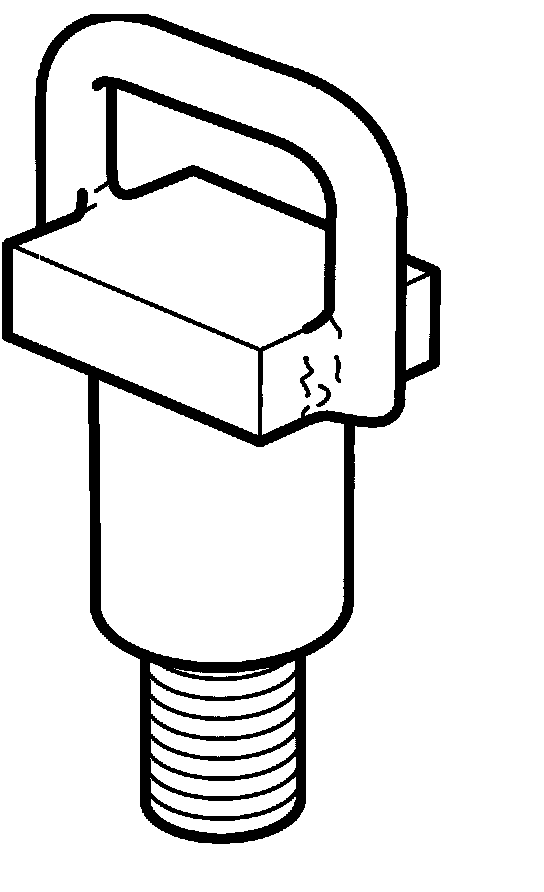

Attachment eye, puller (x 2)
For removing the gearcase
86 12 830 Toolboard T4 Manual Gearbox

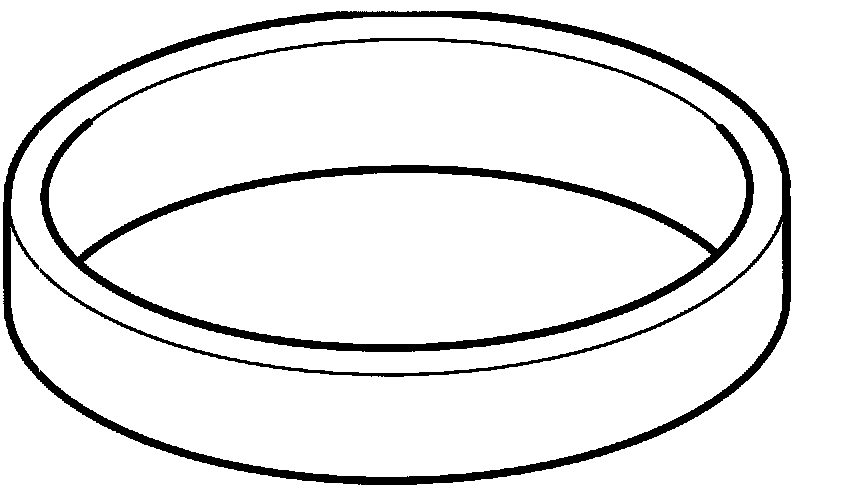

Bearing race, ground
For adjusting differential bearing pre-tension
86 12 830 Toolboard T4 Manual Gearbox
Used together with 87 92 095 Weight, differential bearing

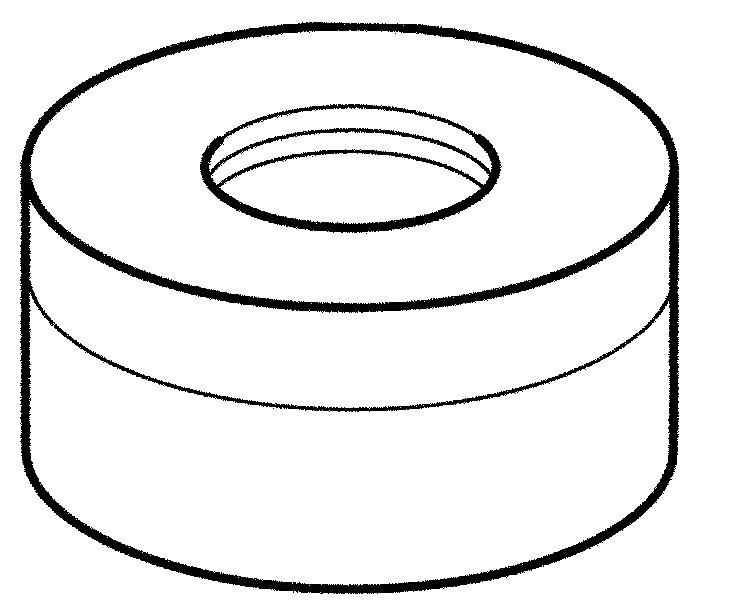

Puller
Input shaft bearing
86 12 830 Toolboard T4 Manual Gearbox
Used together with 87 91 642 Basic tool

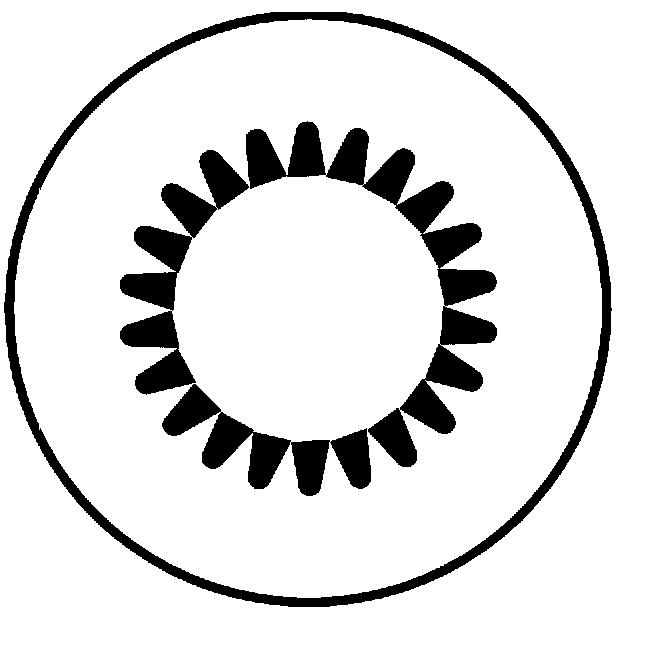

Puller ring, 22 teeth
Pinion bearing
86 12 830 Toolboard T4 Manual Gearbox
Used together with 87 90 636 Fixture

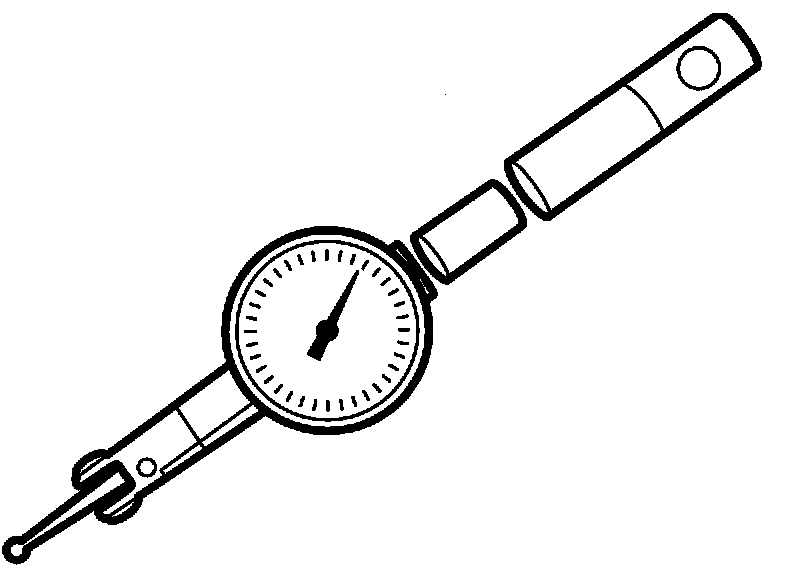

87 92 194 Dial gauge kit
