Part 5

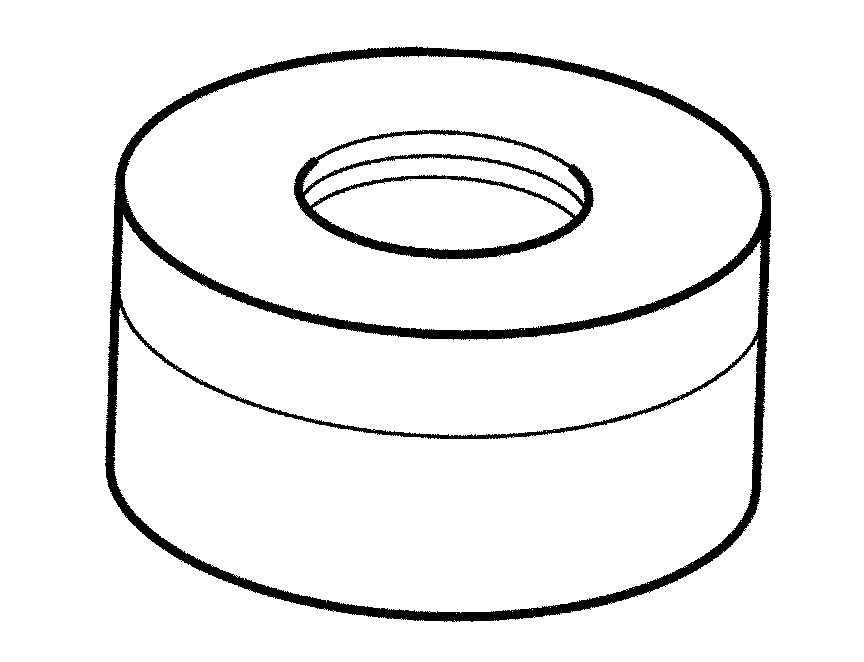

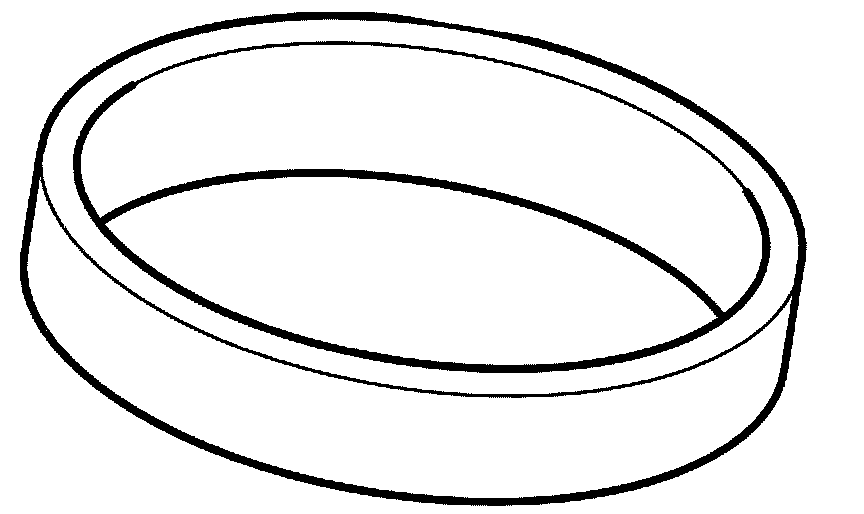

Bearing race, ground
For adjusting differential bearing pre-tension
86 12 830 Toolboard T4 Manual Gearbox
Used together with 87 92 095 Weight, differential bearing

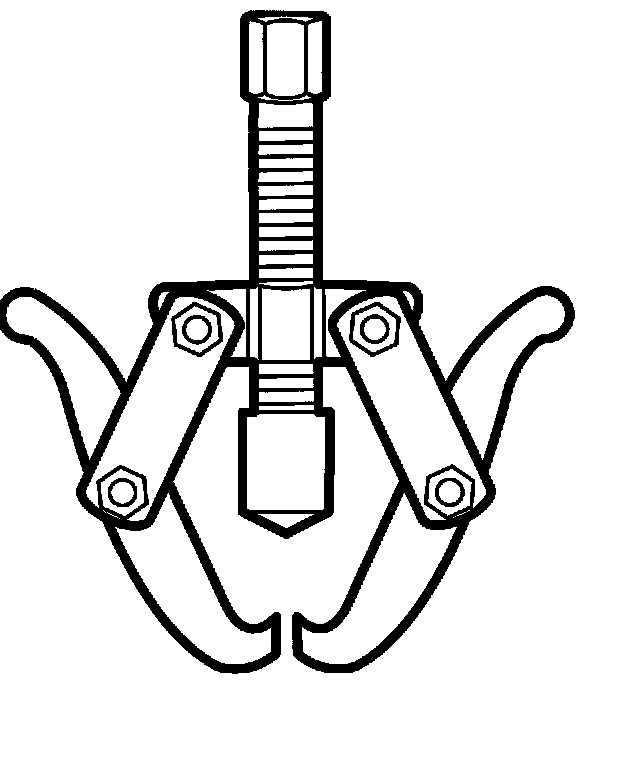

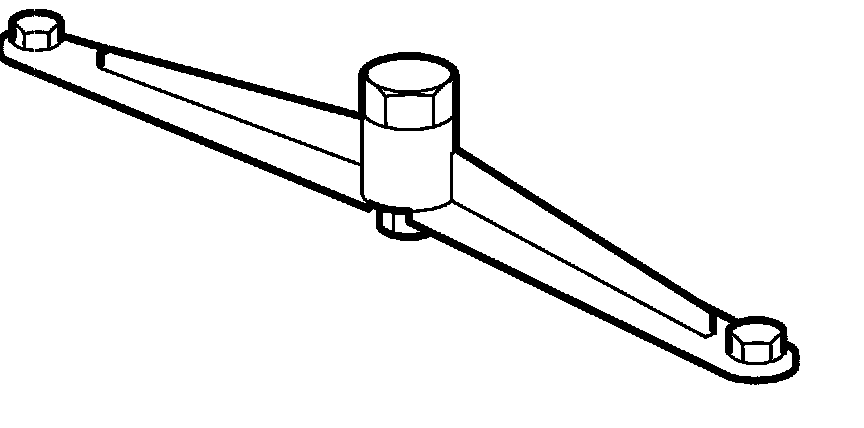

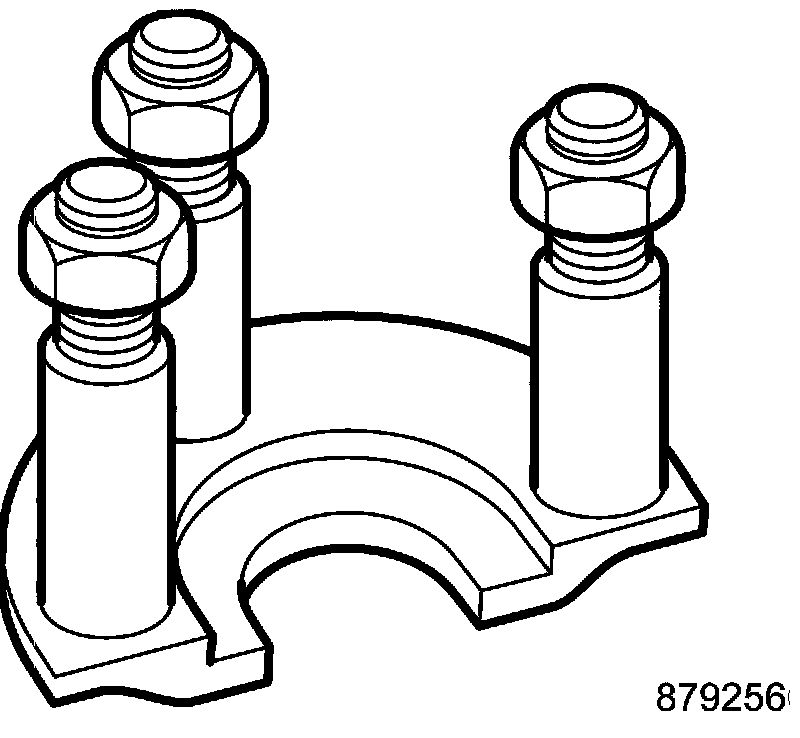

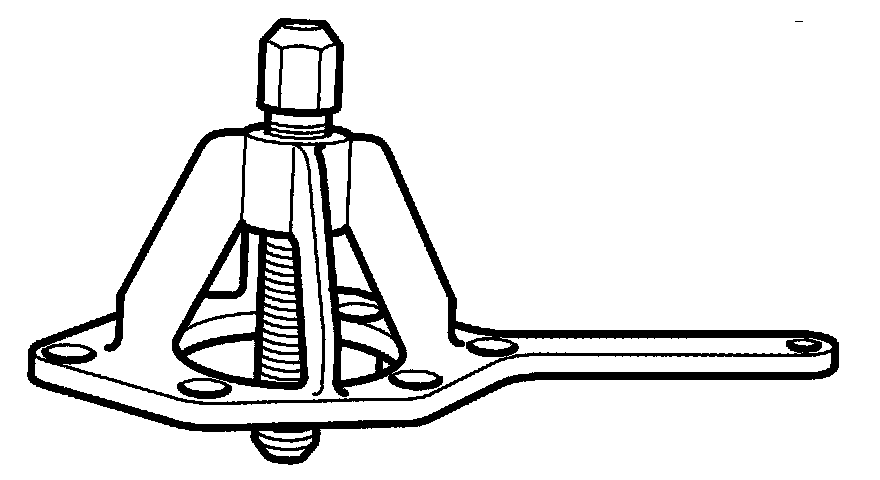

Puller
Input shaft bearing
86 12 830 Toolboard T4 Manual Gearbox
Used together with 87 91 642 Basic tool

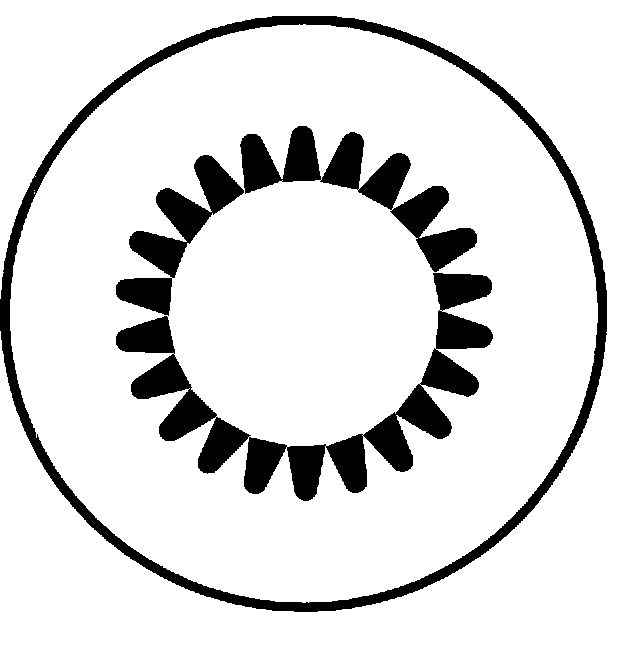

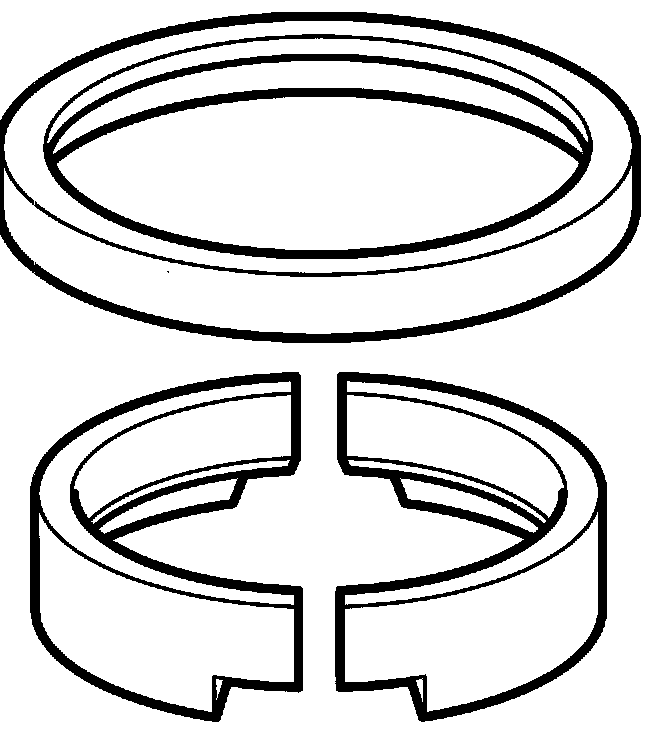

Puller ring, 22 teeth
Pinion bearing
86 12 830 Toolboard T4 Manual Gearbox
Used together with 87 90 636 Fixture

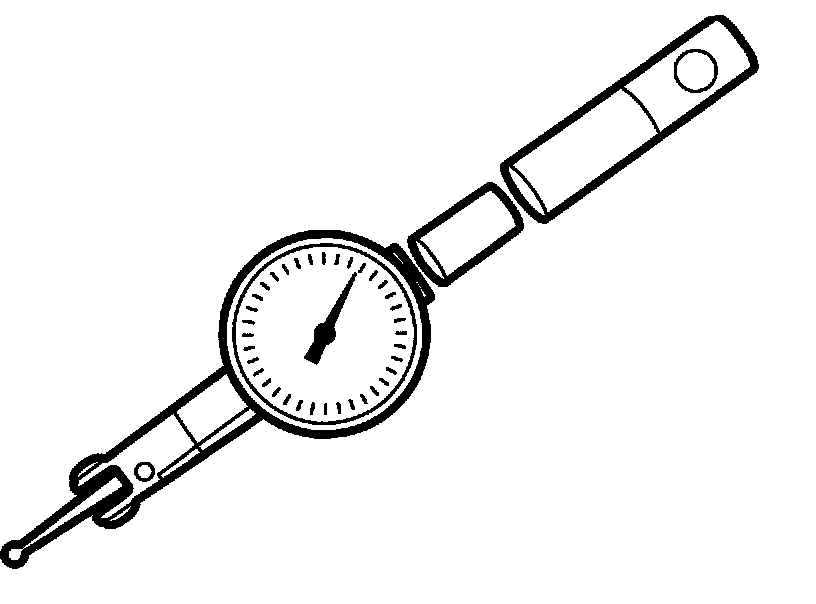

Dial gauge kit

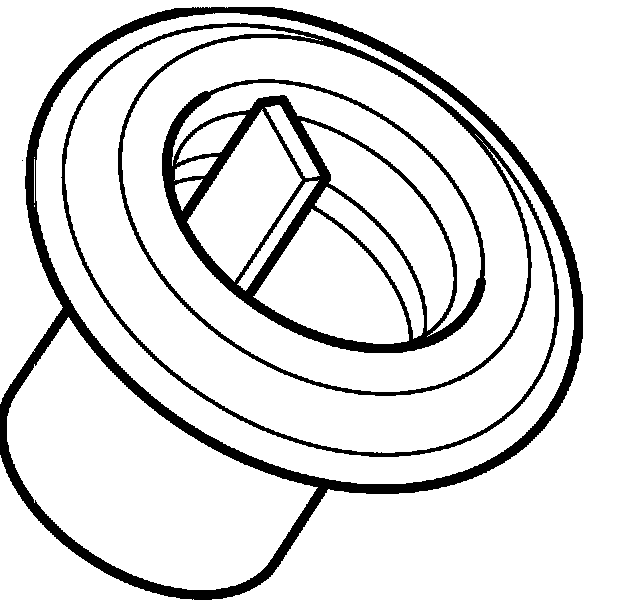

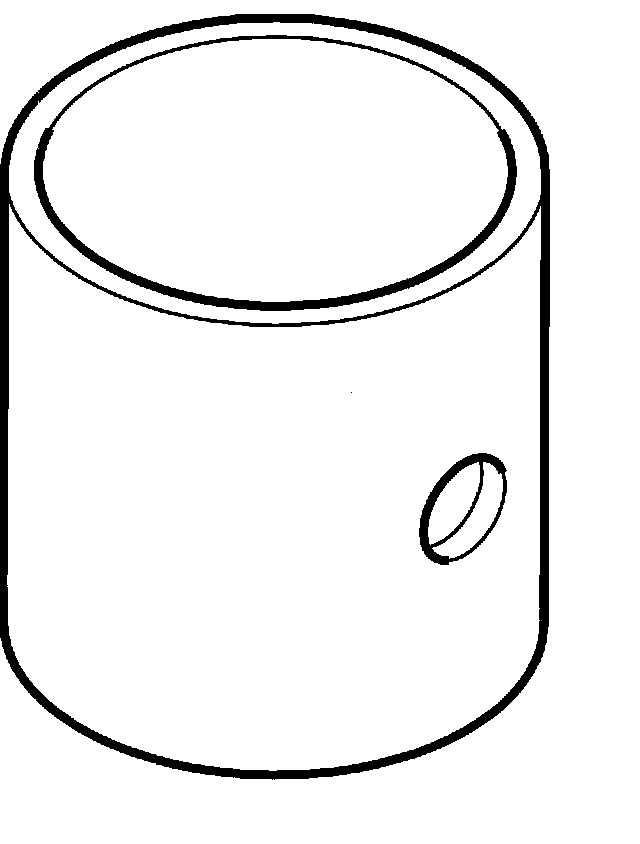

Sleeve
For fitting pinion bearings and bearing races
86 12 830 Toolboard T4 Manual Gearbox

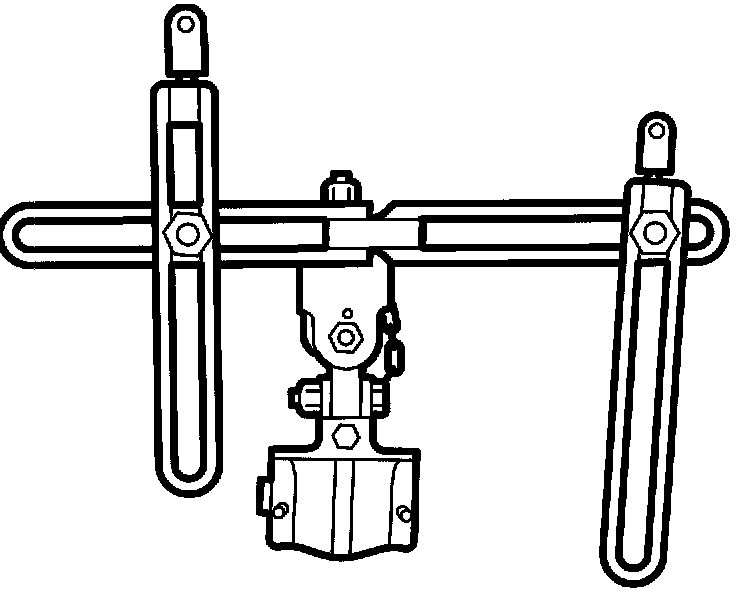

Holder, transmission
86 12 863 Toolboard T6 Tool Holders
Used together with 78 74 878 Floor stand.

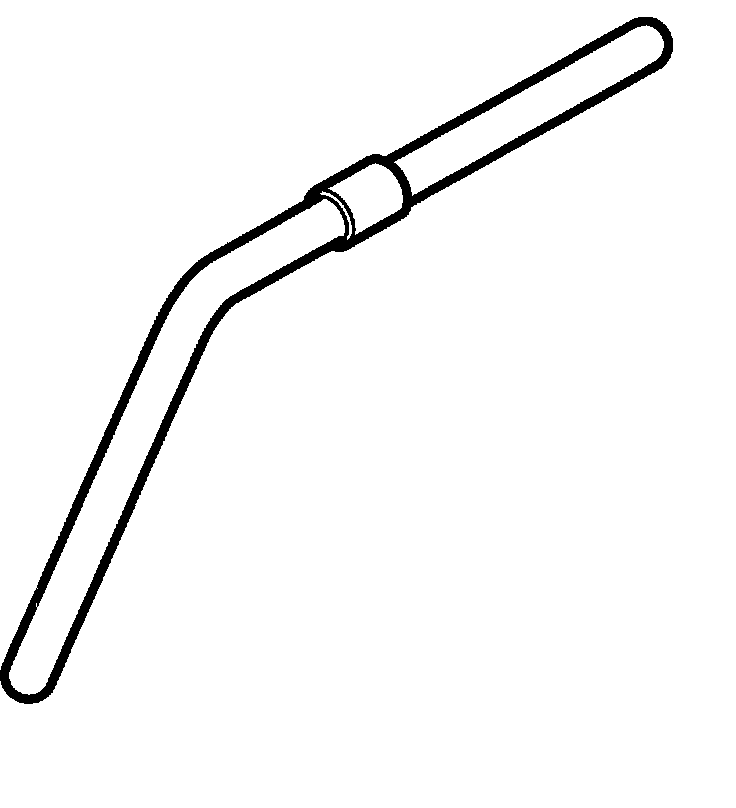

Locking pin
For adjusting gear lever position (x2)
86 12 798 Tool board T1 Service








Puller, differential bearing, 5th gear hub
86 12 830 Toolboard T4 Manual Gearbox








Puller, drive shaft seal
86 12 855 Toolboard T5 Automatic Transmission
Used together with 87 91 683 Puller








Press sleeve, differential bearing
86 12 830 Toolboard T4 Manual Gearbox








87 92 483 Torque wrench
For adjusting pinion bearing pre-tension
86 12 830 Toolboard T4 Manual Gearbox

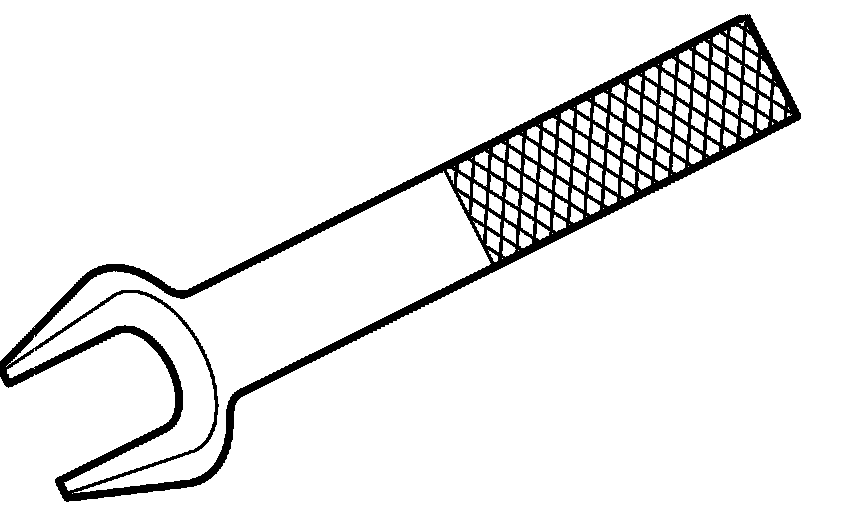

Holding tool, input shaft








Puller, 5th gear pinion
86 12 830 Toolboard T4 Manual Gearbox
Used together with 89 96 084 Puller, wheel hub








Fixture, 5th gear synchromesh hub
86 12 830 Toolboard T4 Manual Gearbox








Holder for single-column lift
For removing and fitting gearbox








Removing tool, drive shafts
86 12 798 Toolboard T1 Service








Tool, 5th gear synchromesh hub
86 12 830 Toolboard T4 Manual Gearbox








Fitting drift, drive shaft seals
86 12 798 Toolboard T1 Service








Protective plug, drive shaft hole
(9-3 Viggen)
86 12 830 Toolboard T4 Manual Gearbox








Puller, wheel hub
