Part 4

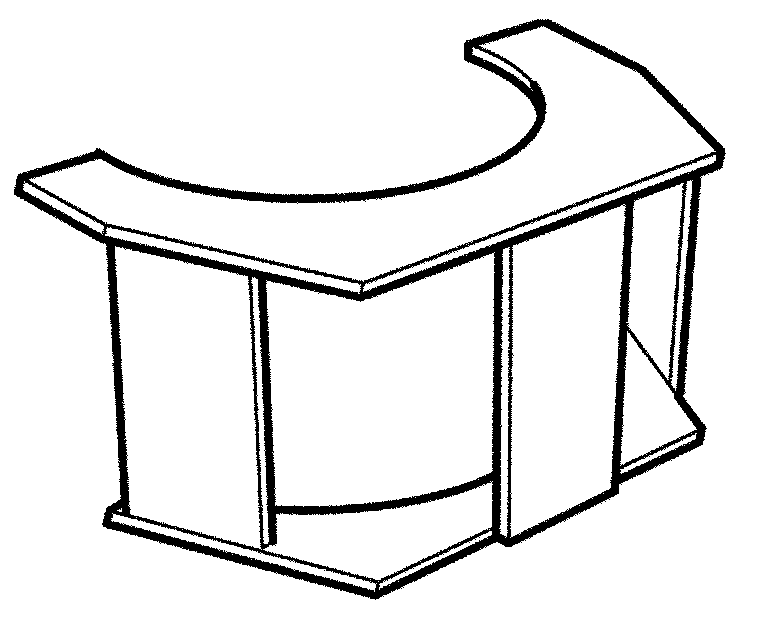

Support
For differential housing
86 12 855 Toolboard T5 Automatic Transmission

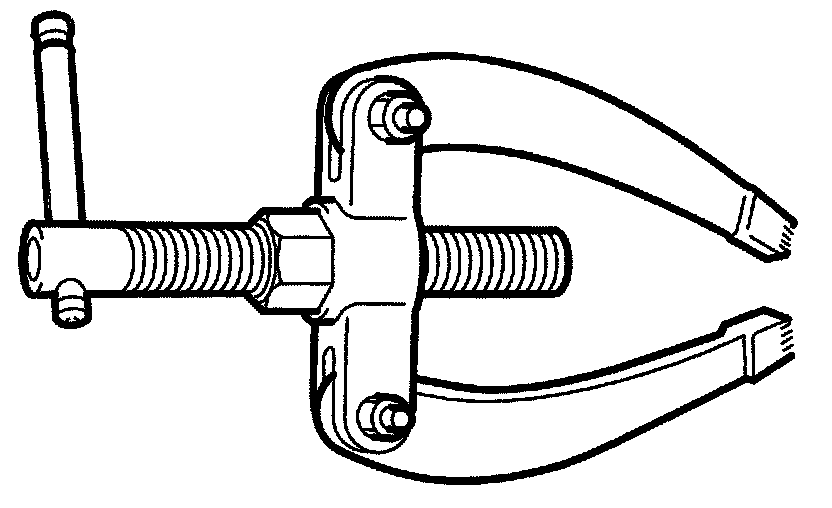

Puller
86 12 855 Toolboard T5 Automatic Transmission








Bearing fitting/removal, selector rod, manual gearbox
86 12 830 Toolboard T4 Manual Gearbox








Puller ring, 12-gear manual transmission
86 12 830 Toolboard T4 Manual Gearbox

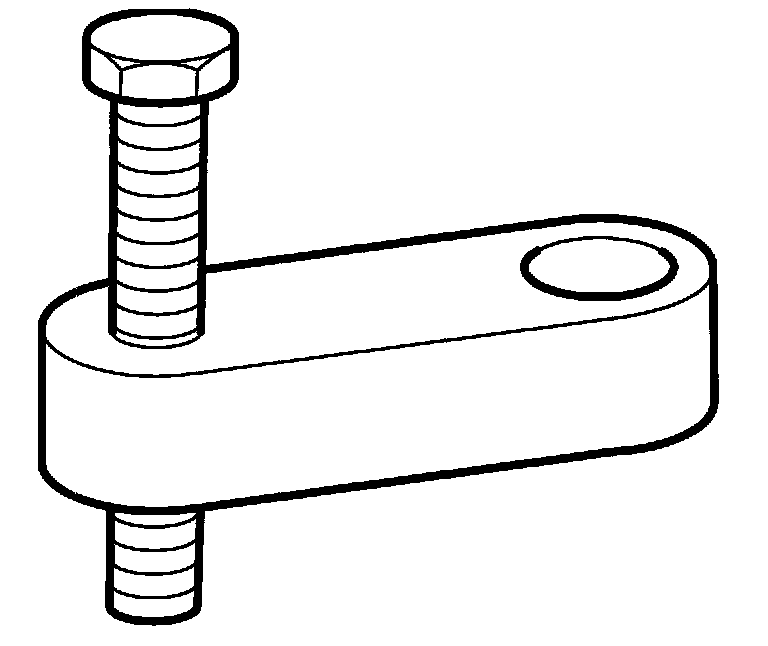

Clamp
Removal and fitting of C band
86 12 855 Toolboard T5 Automatic Transmission








Puller, internal 0 = 63 mm
For removing the large differential bearing and bearings from the gears on the pinion shaft
86 12 855 Toolboard T5 Automatic Transmission
For use with 87 91642 Basic tools

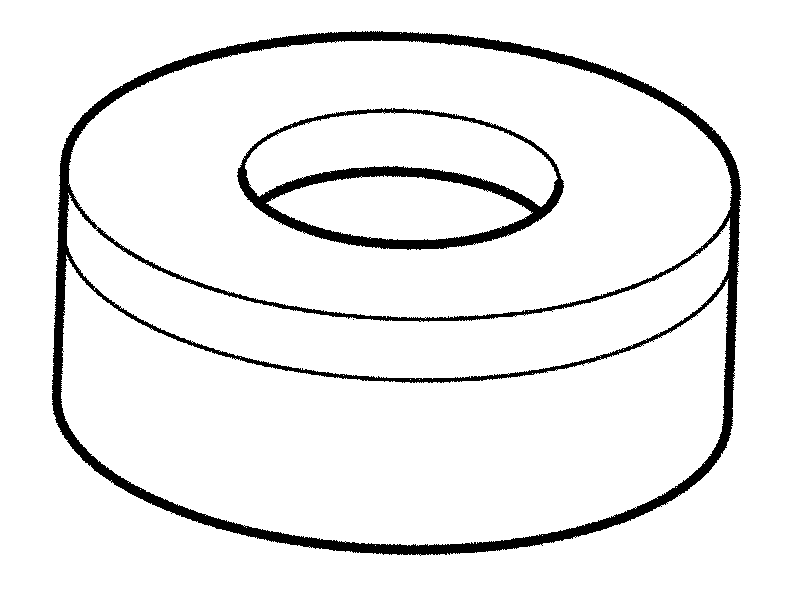

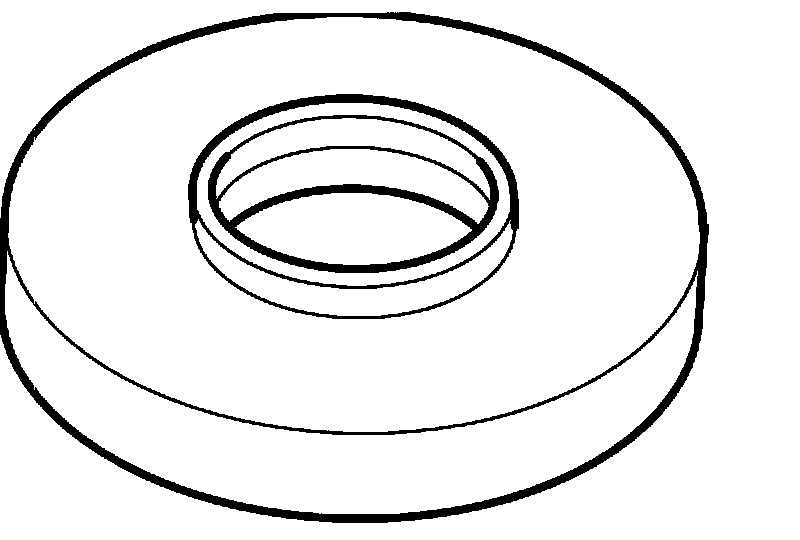

Ring
For fitting rear pinion bearing
86 12 830 Toolboard T4 Manual Gearbox
Use with 87 90 636 Fixture

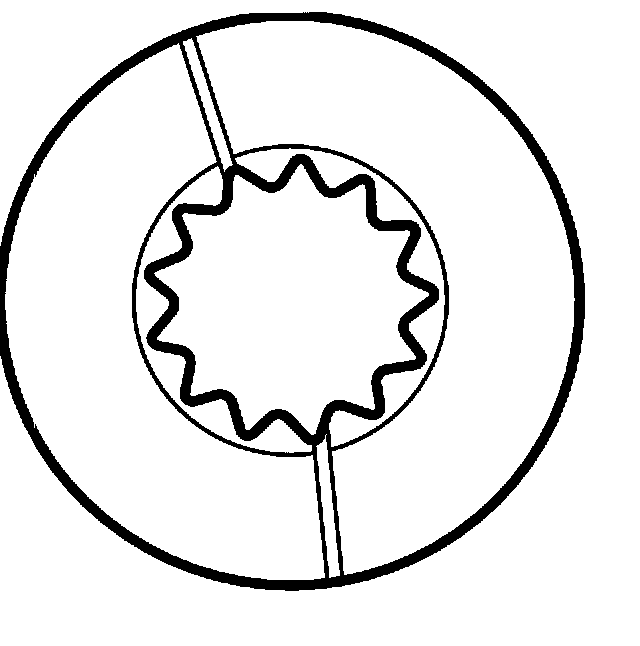

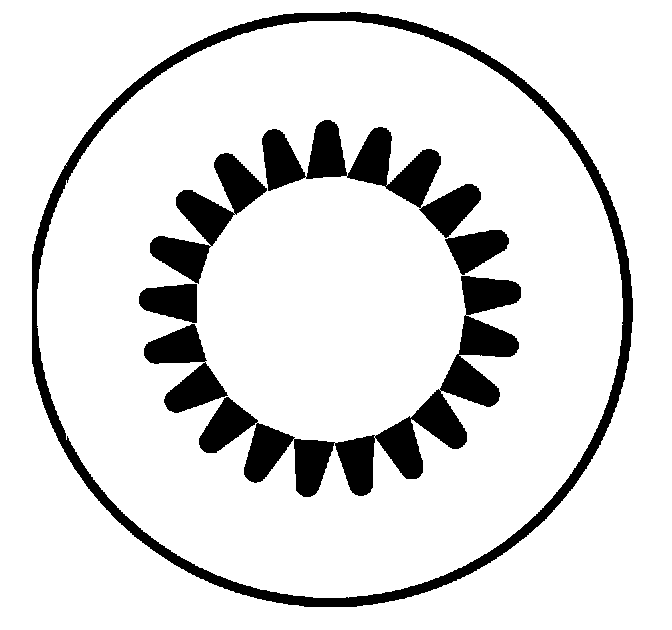

Puller ring, 21 teeth
Pinion bearing
Used together with 87 90 636 Fixture
86 12 830 Toolboard T4 Manual Gearbox

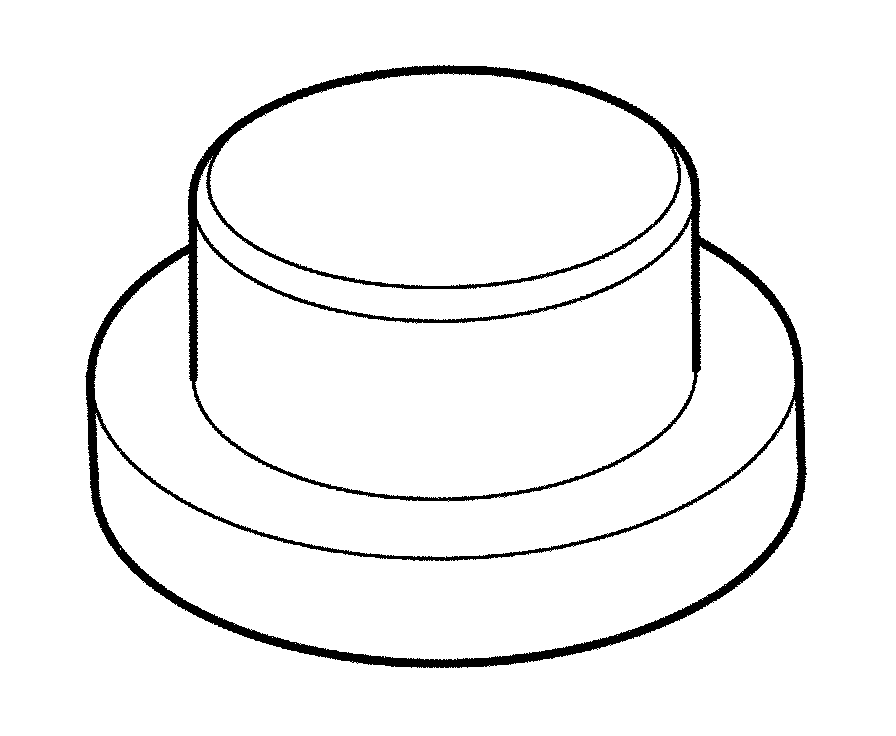

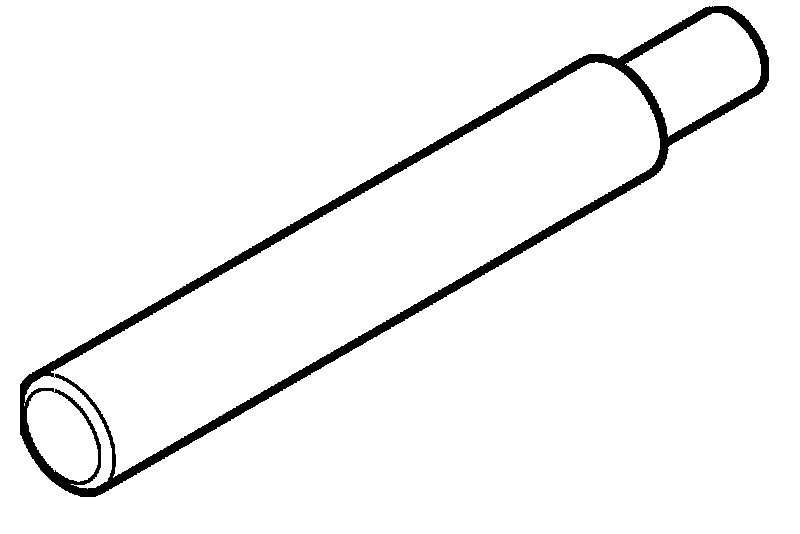

Driver
For measuring bearing play
86 12 830 Toolboard T4 Manual Gearbox

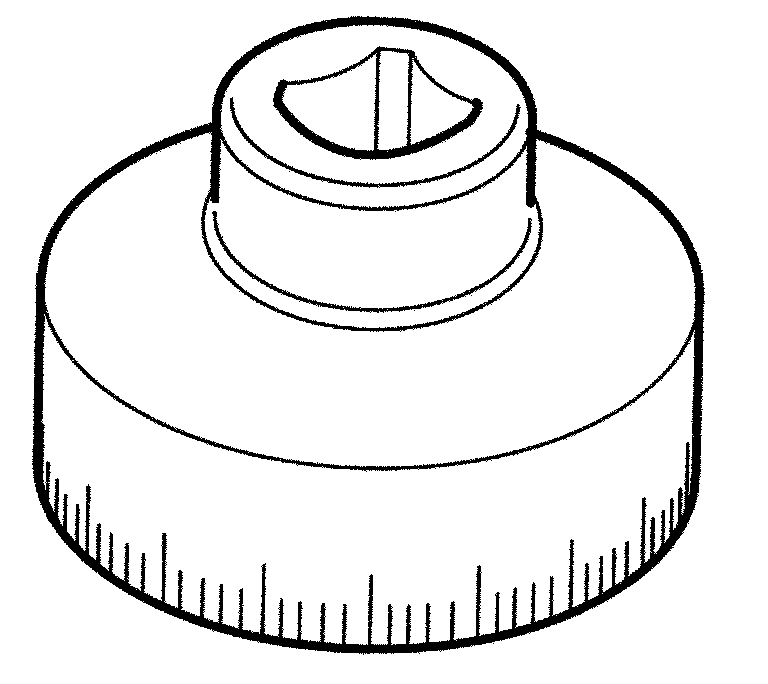

Millimeter wheel, 27 mm
For adjusting pinion bearing pre-tension
86 12 830 Toolboard T4 Manual Gearbox








Mounting
Use with 87 92 194 Dial gauge kit

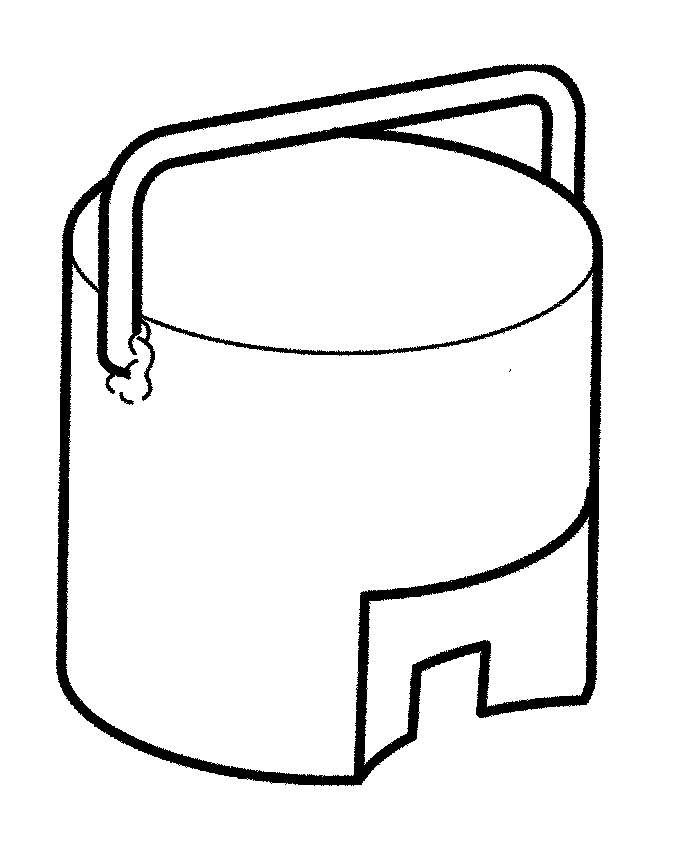

Weight, differential bearing
For adjusting differential bearing pre-tension








Assembly fixture, 1st and 2nd gear hubs
86 12 830 Toolboard T4 Manual Gearbox

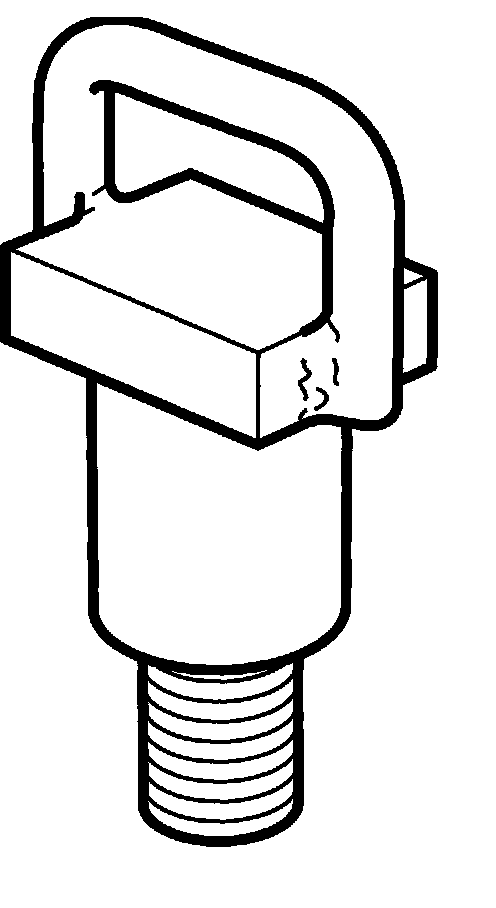

Attachment eye, puller (x 2)
For removing the gearcase
86 12 830 Toolboard T4 Manual Gearbox
