Tire Pressure Monitor Antenna: Service and Repair

Signal detector for tyre pressure, in the wheel housing
To remove
1. Remove the wheel for the sensor which is to be removed.
2. Remove wine liner, front or wine liner, rear.

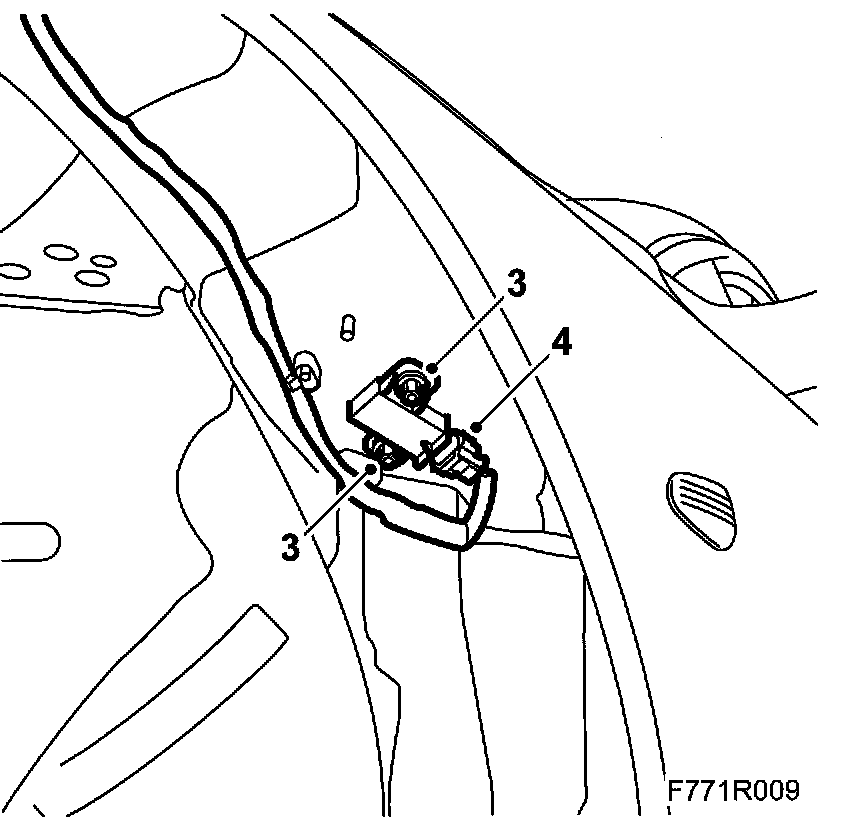

3. Remove the signal detector.





4. Remove the connector.

To fit

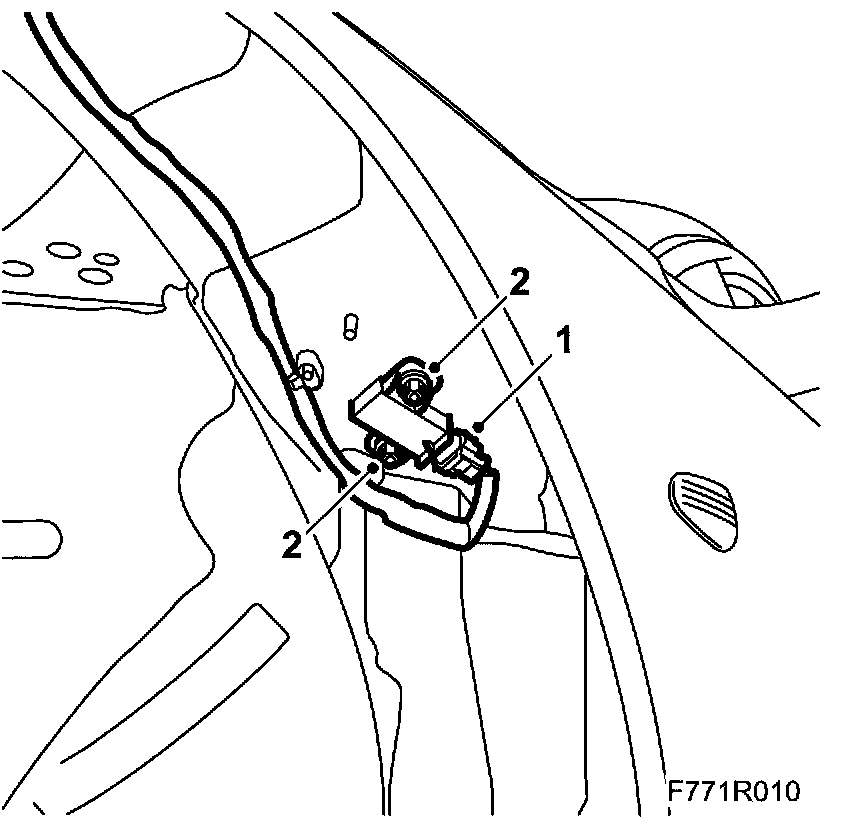

1. Connect the connector.





2. Fit the signal detector.
Tightening torque 3 Nm (2.2 ft. lbs.)
3. Fit wing liner, front or wing liner, rear.
4. Fit the wheel.
Tightening torque 110 Nm (81 ft. lbs.)
