Home
>>
Saab
>>
2004
>>
9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Grounding Points
>>
Grounding Point G33T
Grounding Point G33T
Grounding Point
G33T

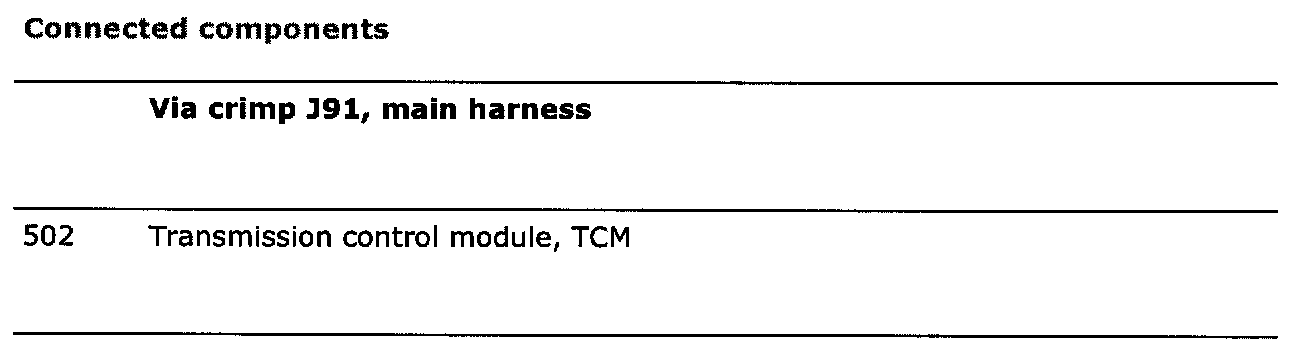

Connected Components:
Location:
Upper
grounding point
on floor below left A-pillar

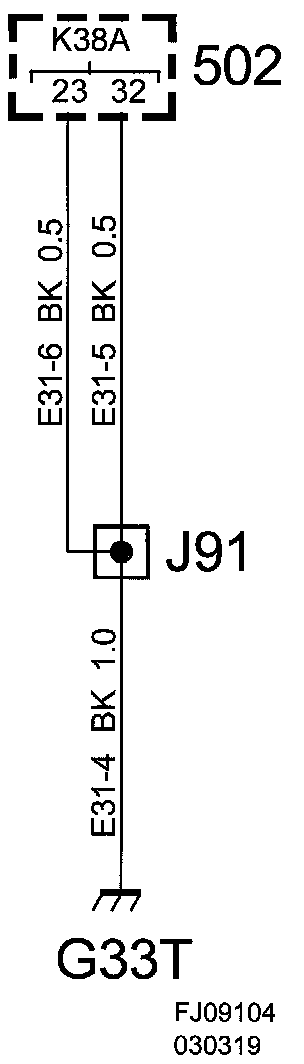

Grounding Point G33T:
