Grounding Point G30B

Grounding Point G30B

Grounding Point G30B:

Location: Rear grounding point on the side plate above the front left wheel housing

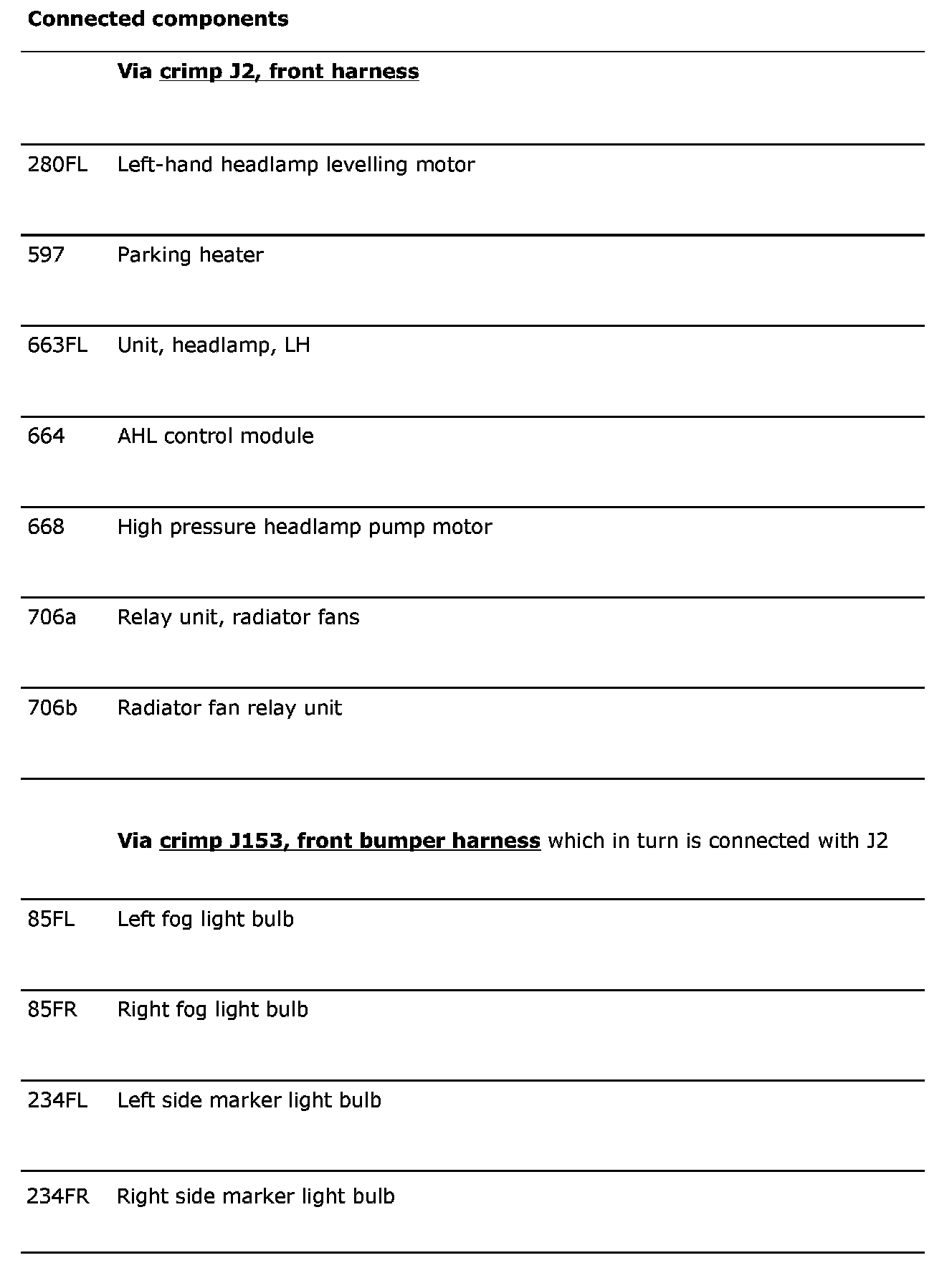

Connected Components:

Diagram:
