Convertible

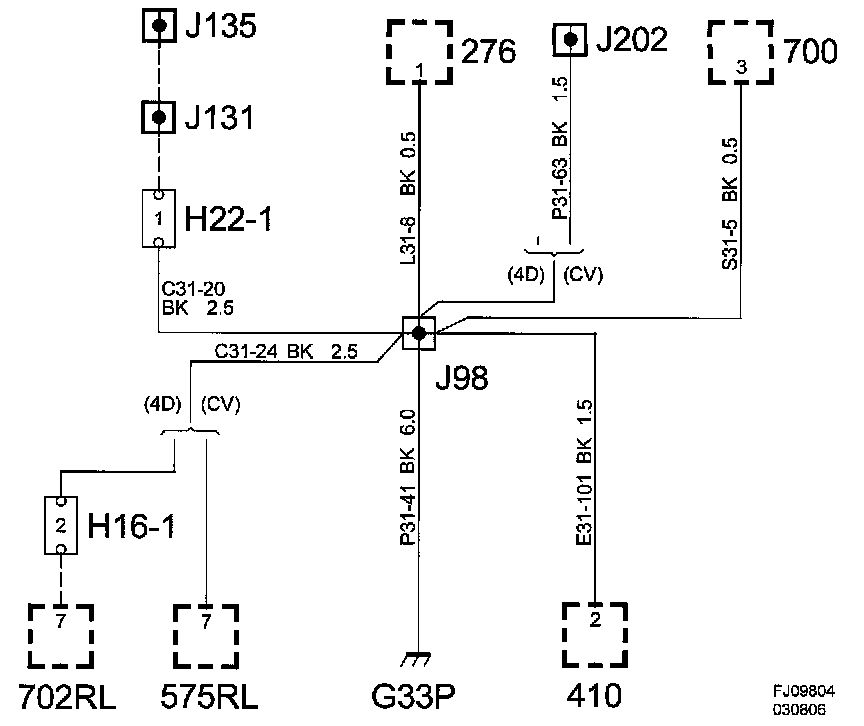

Crimp Connector J98, Main Harness

Location:

CV: Approx. 170 mm from branching point of grounding point G33P/S towards left rear door

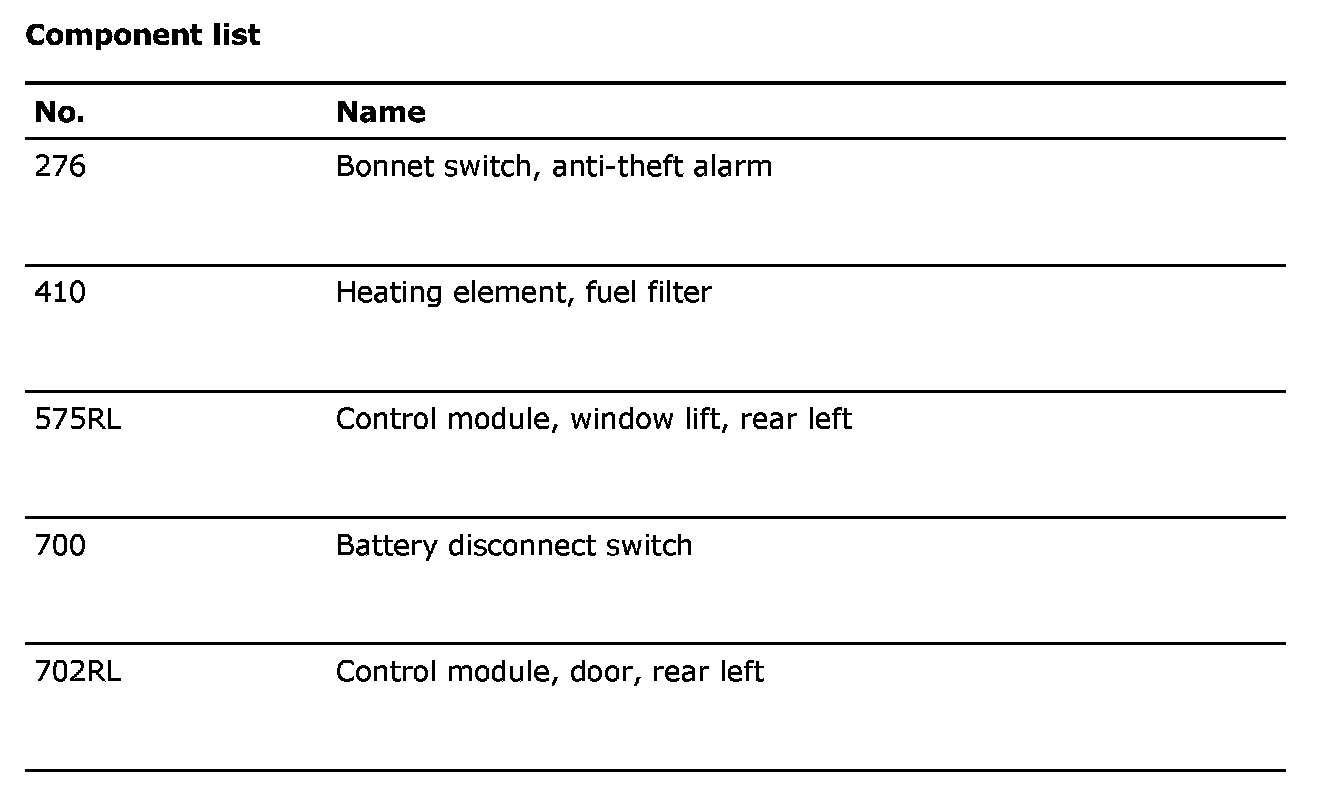

List Of Components:
