Home >> Saab >> 2004 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Crimps (Splices) >> Crimp Connection J97, Main Harness >> Convertible

Convertible

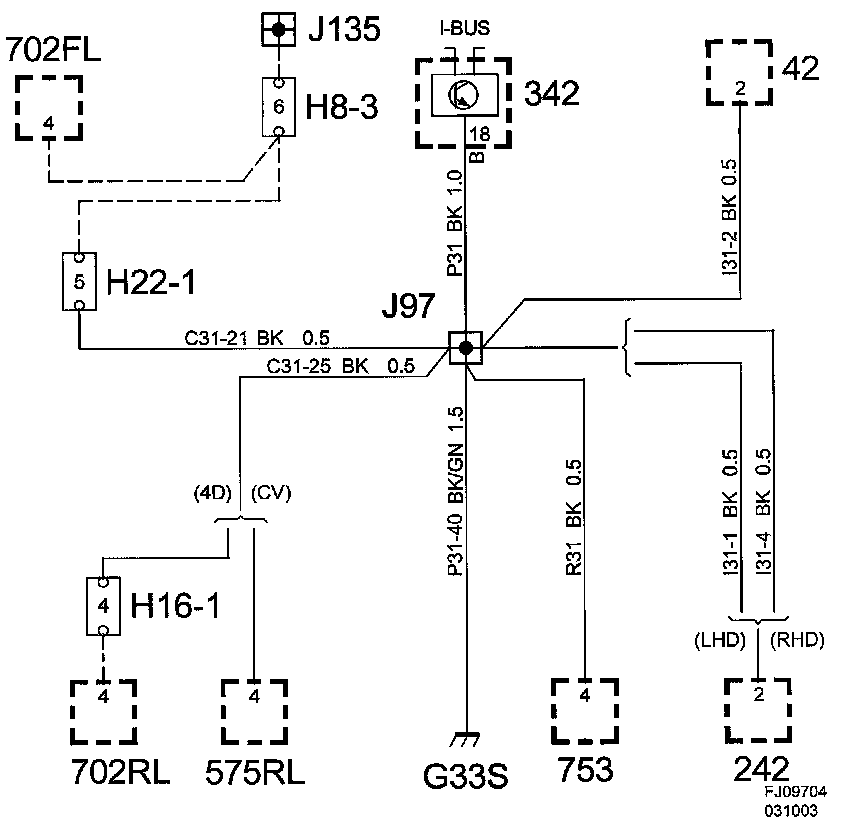

Crimp J97, Main Wiring Harness

Location:
CV: Approx.120 mm from branching point to grounding point G33P/S towards LH rear door

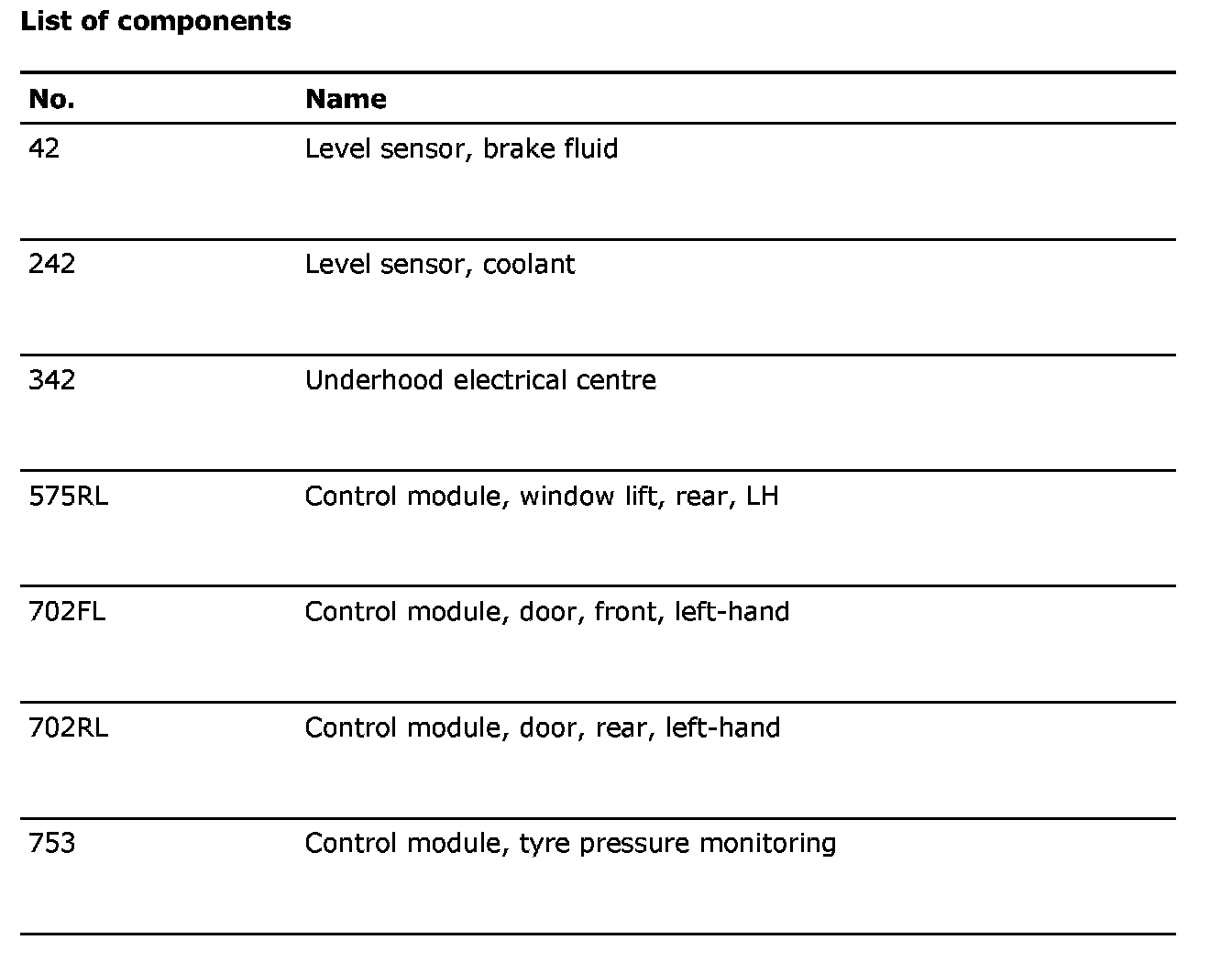

List Of Components:
