Crimp Connection J30, Engine Harness, Trionic

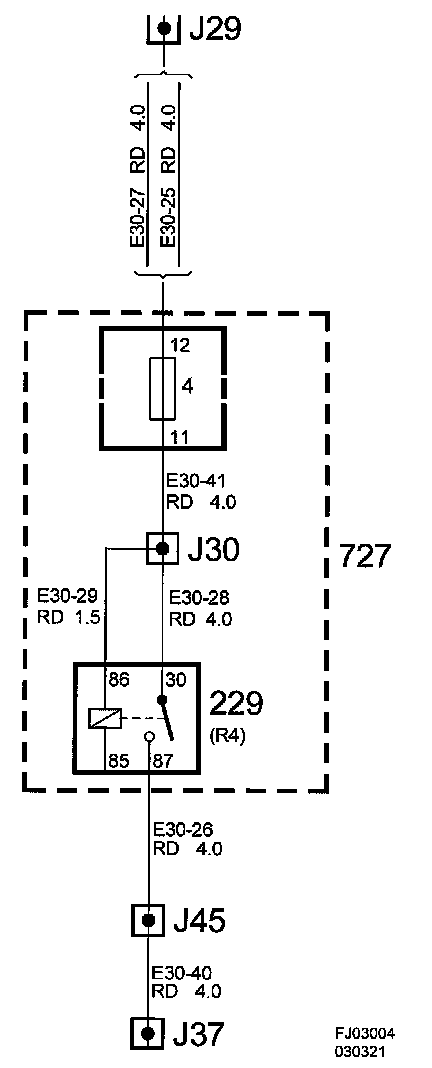

Crimp J30, Engine Harness, Trionic

Location: Approx. 50 mm from relay plate in main fuse box 727 for Trionic T8

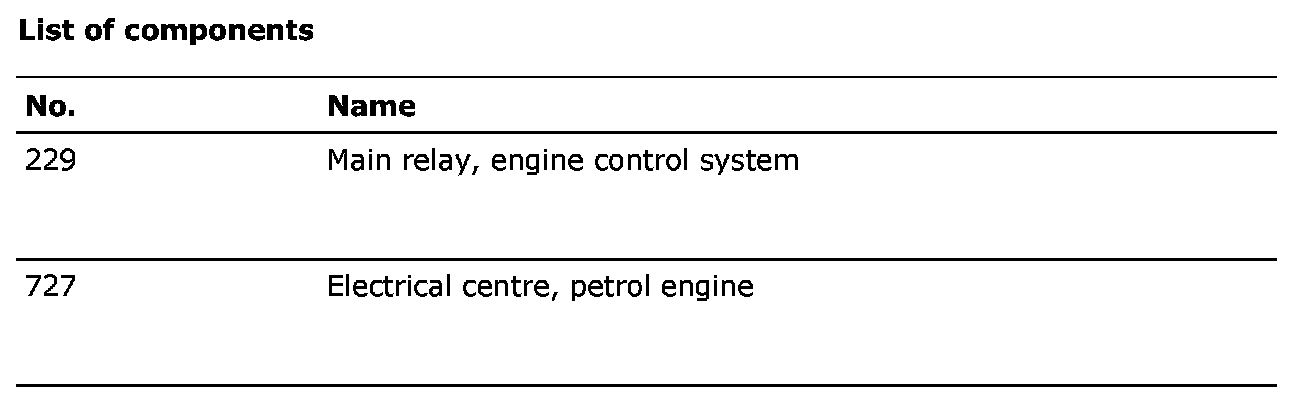

List Of Components:
