Crimp Connection J200, Main Harness

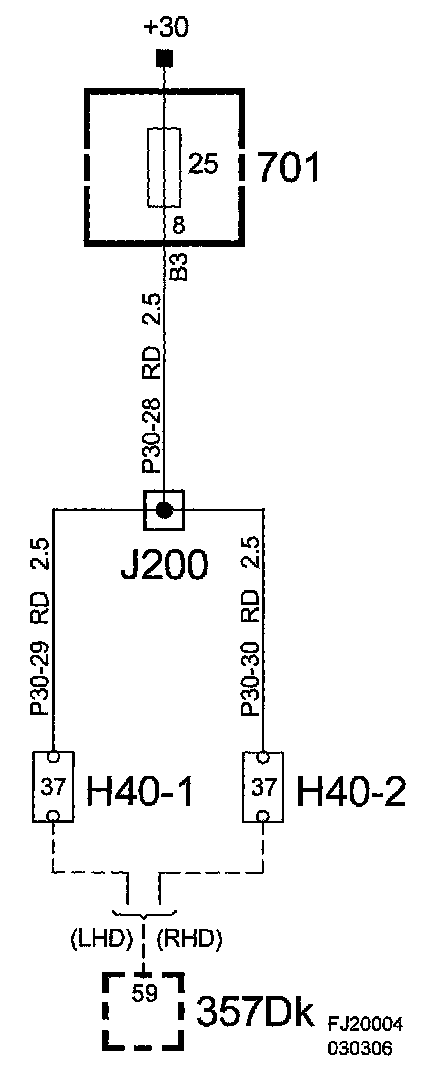

Crimp Connector J200, Main Harness CV

Location: Approx. 390 mm from branching point of side impact sensor at left-hand B-pillar towards left front door

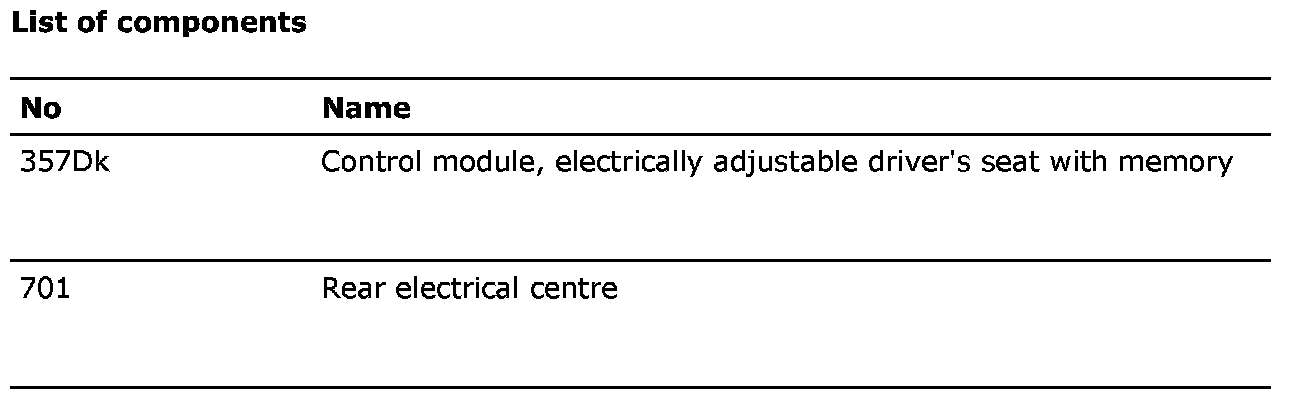

List Of Components:
