Convertible

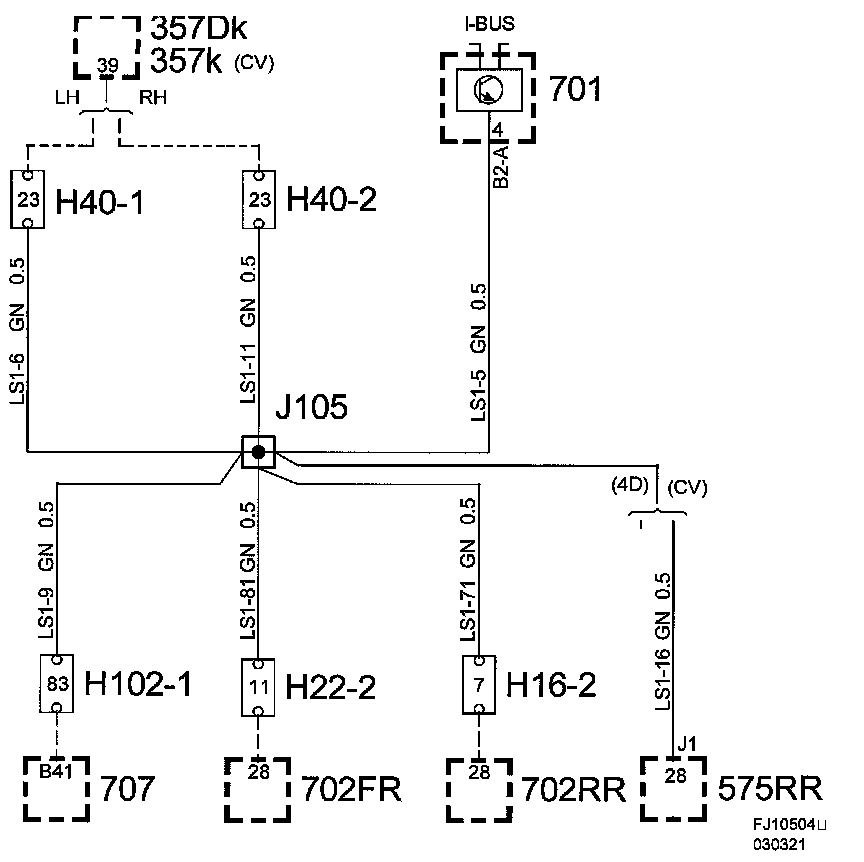

Crimp Connection J105, Main Harness

Location:
CV: Approx. 320 mm from branching to grounding point G14 towards the airbag control module

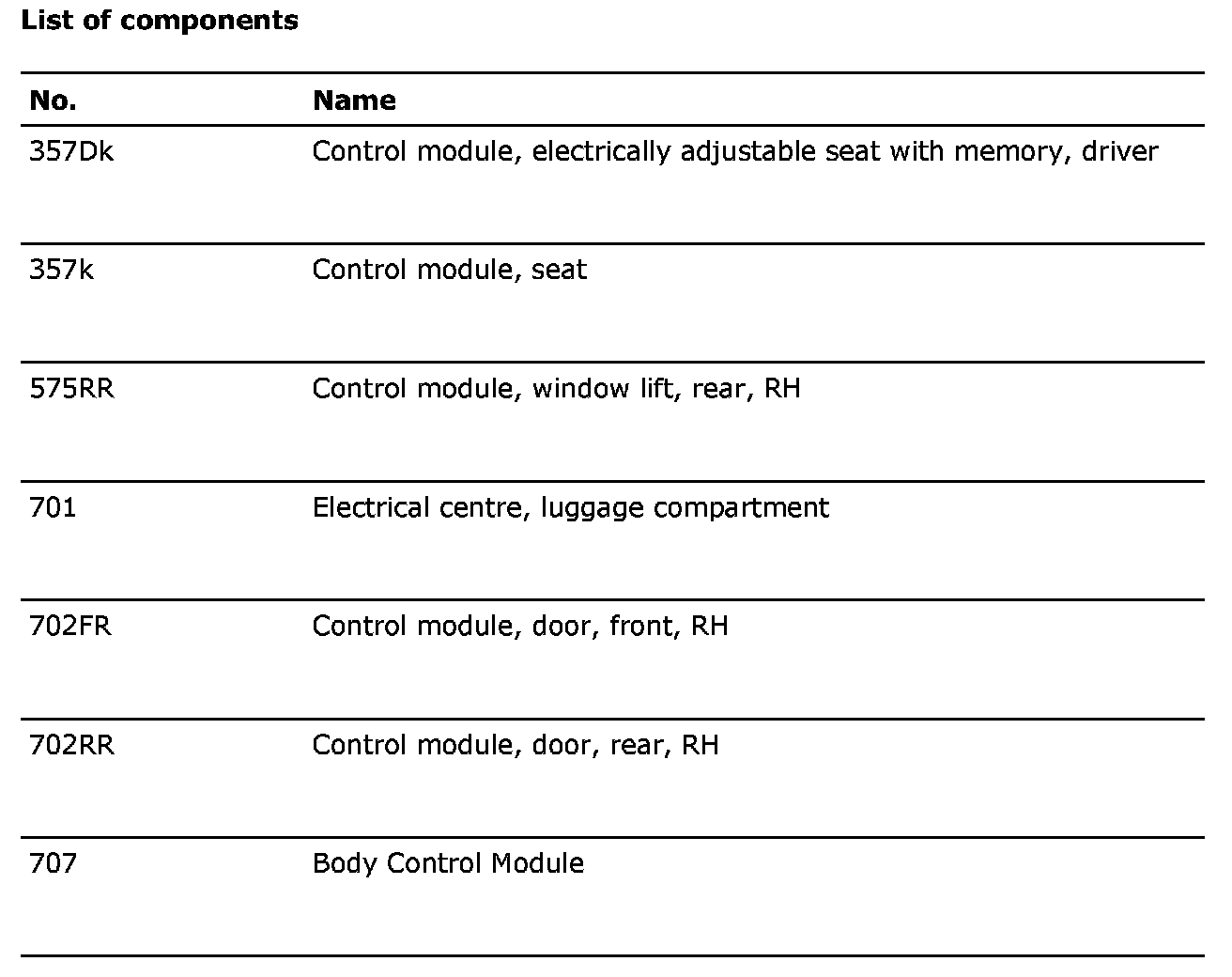

List Of Components:
