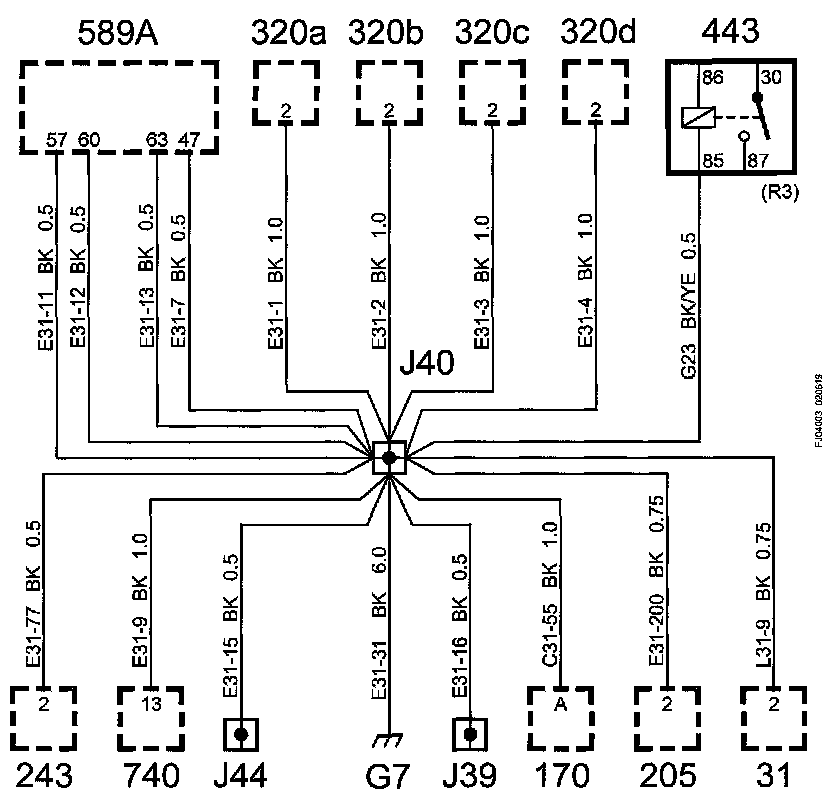

Grounding Point G7



Grounding Point G7

T8

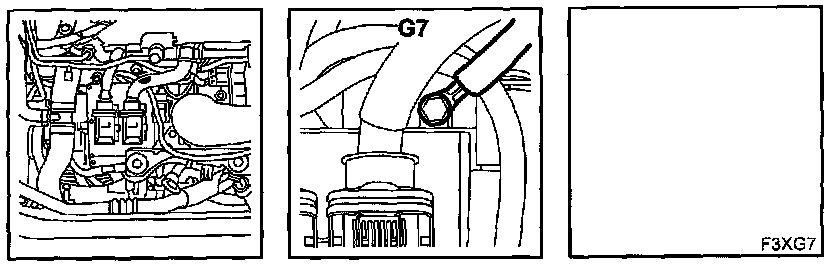

Location: Above the upper RH engine control module attachment eye

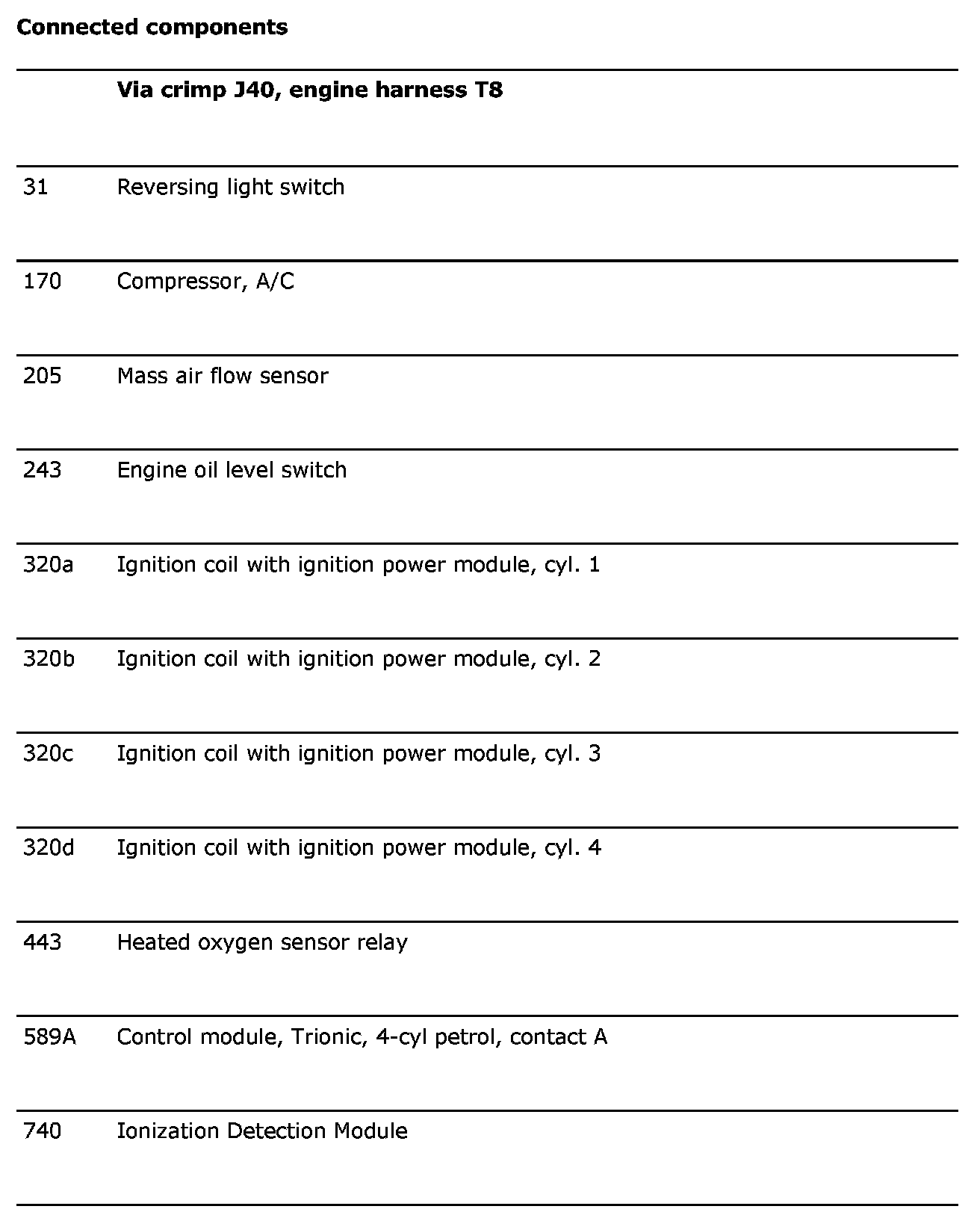

Connected Components Part 1:

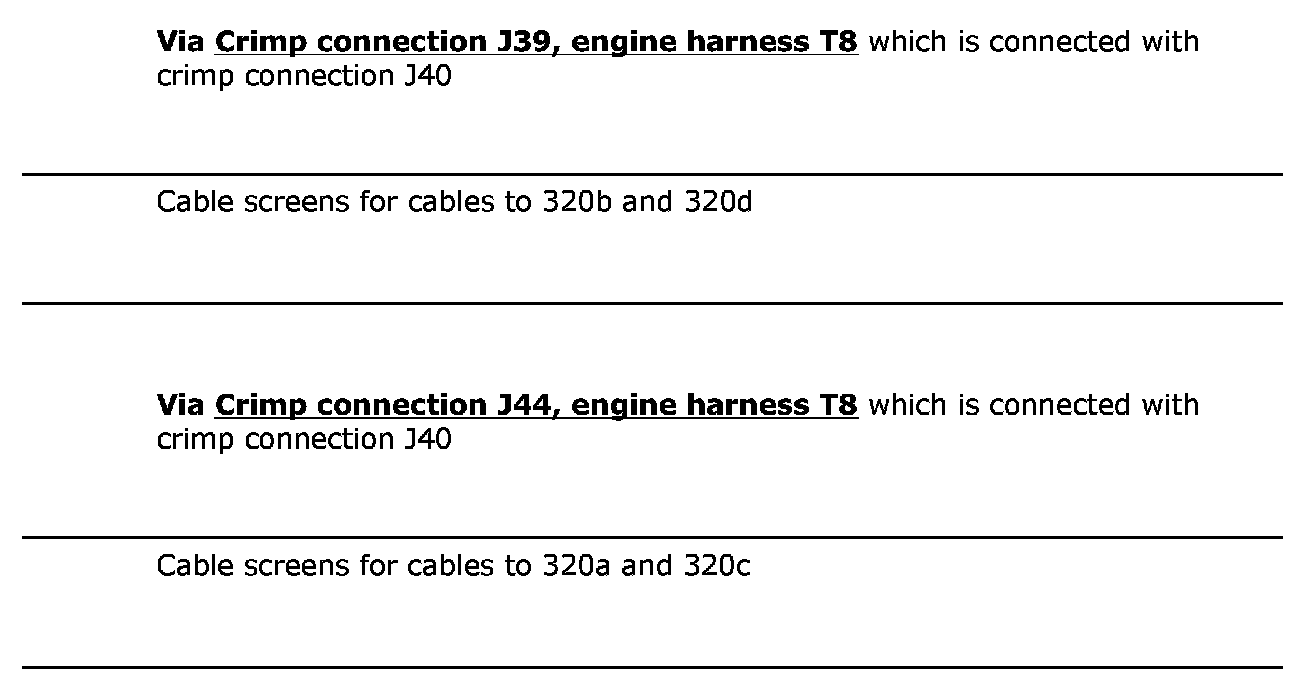

Connected Components Part 2:
