9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Locations
>>
Ground Locations
>>
Grounding Point G2
Grounding Point G2
Grounding Point G2

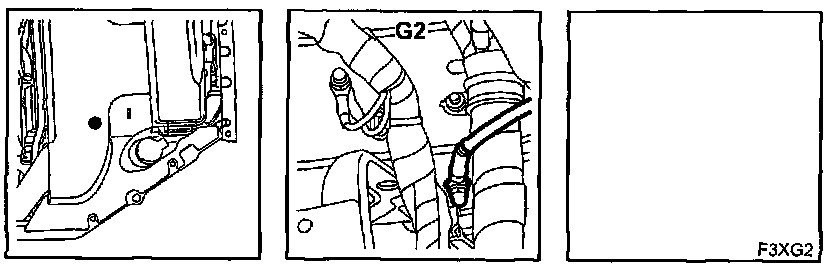

Location:
On the side of the LH structural member near the connector console

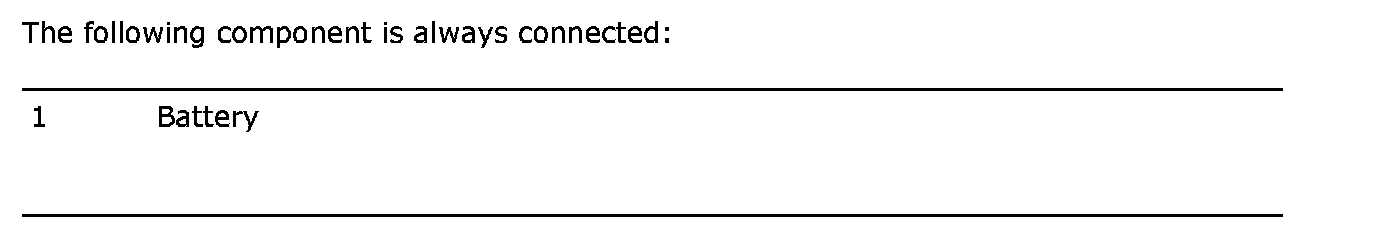

Connected Components:
