Radiator Cooling Fan Control Module Relay

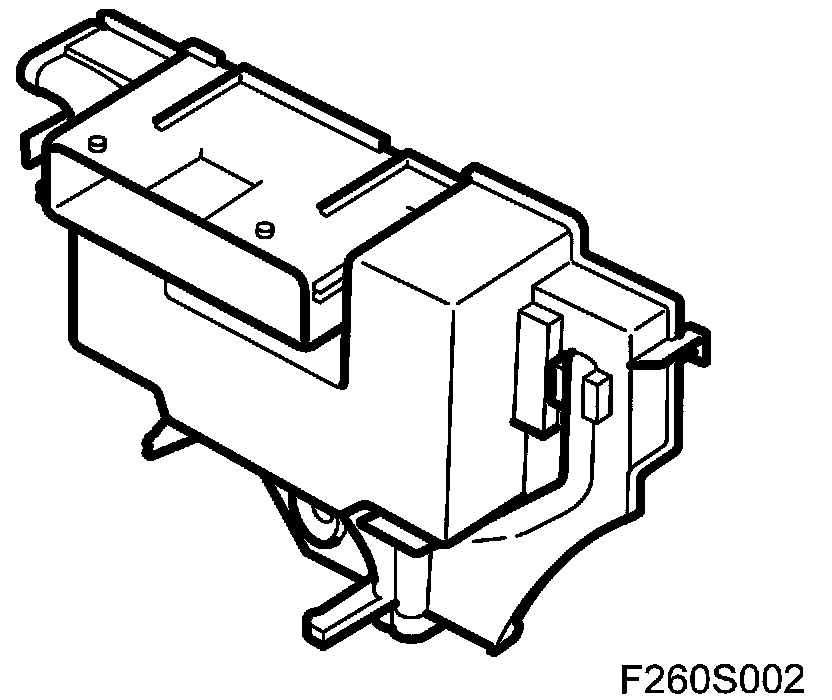

Relay Unit, Radiator Fans (706a), B207 With Two Radiator Fans
Main task
To control the radiator fans.
Type
Relay box containing relays and resistors.
Connection

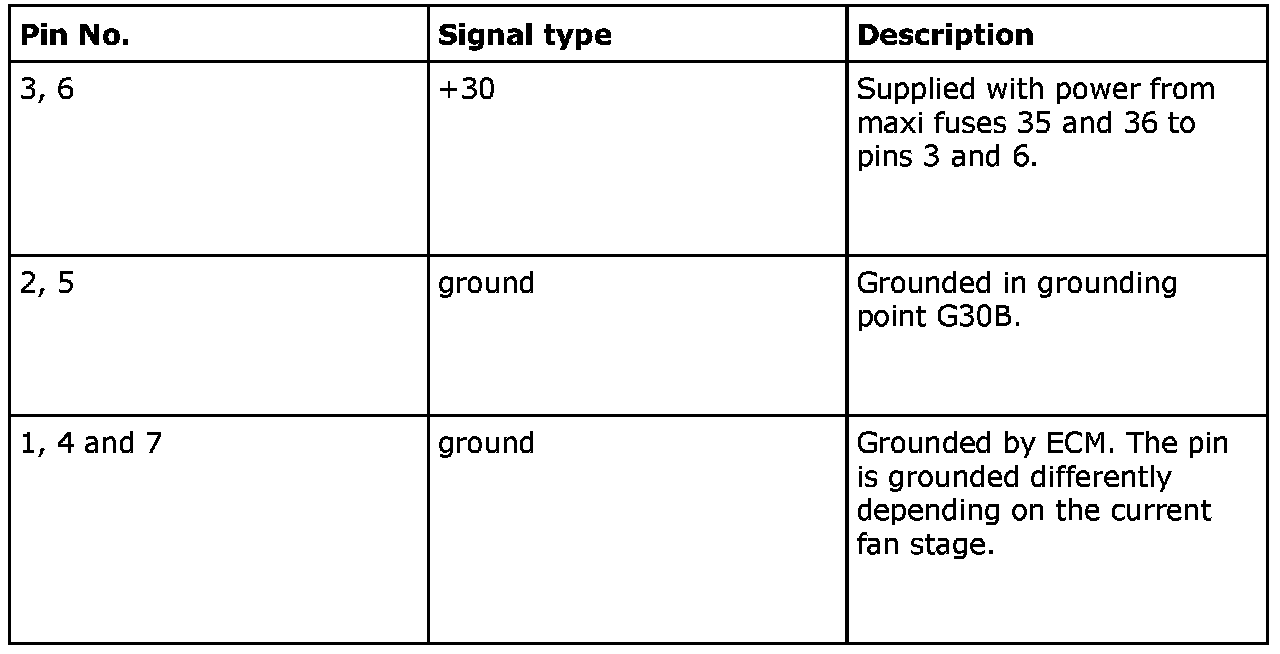

Pins 1-7:

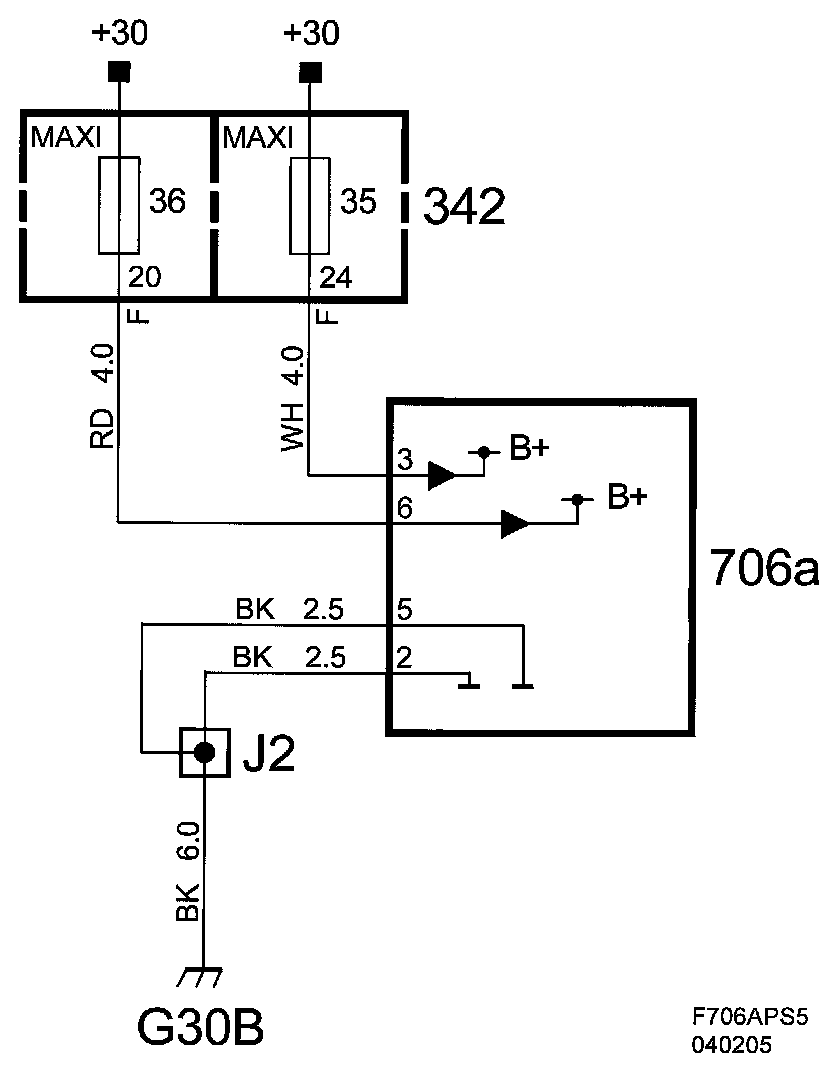

power supply
Power Supply:

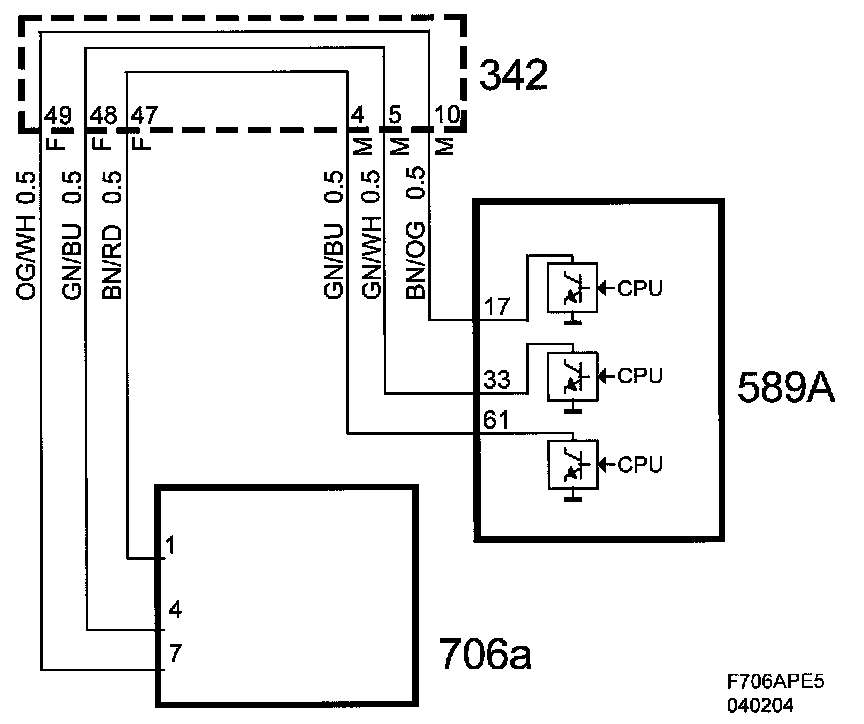

control
Control:
