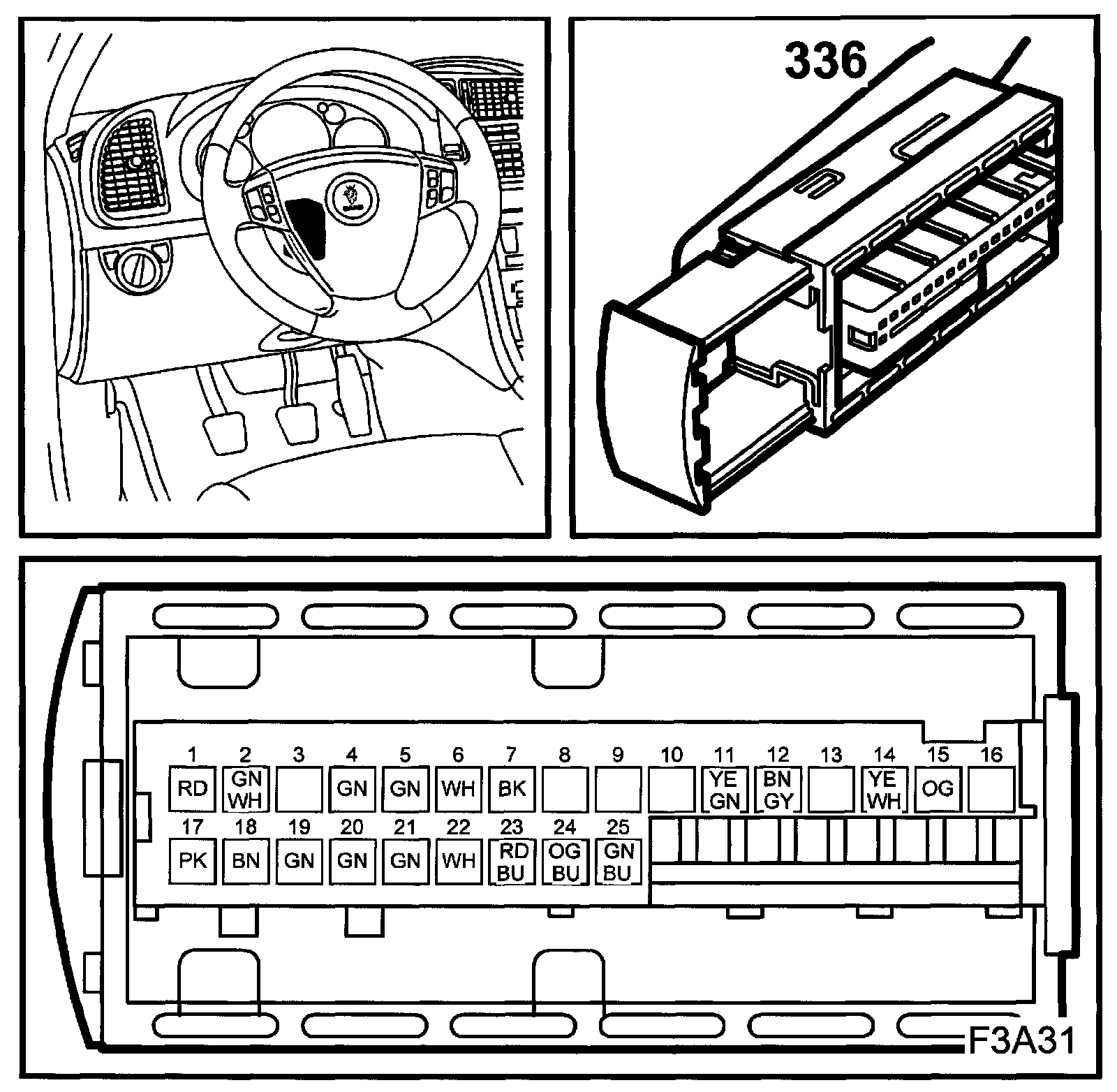

Steering Wheel Contact Unit, Horn/Switches (336b)



Location: integrated in steering column unit


Connection from the steering wheel wiring harness


Steering Wheel Contact Unit (336):






Connection from the instrument wiring harness


Steering Wheel Contact Unit (336):
