Tyre Pressure Monitoring Module (753)

Tyre Pressure Monitoring Module (753)

Position

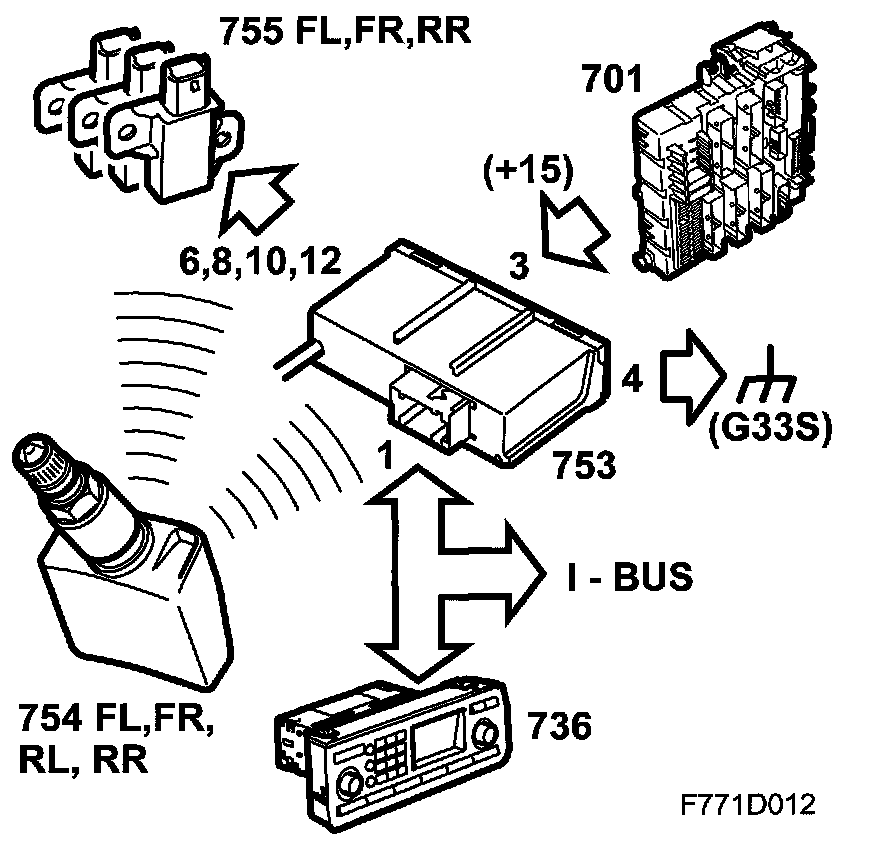

Main function

The main function of the control module is to:
- Identify each wheel on the vehicle.
- Monitor tyre pressure information and determine if a warning message or alarm is to be emitted.
- Emit warning or alarm messages via the I-bus when the criteria for this are met.
- Monitor the tyre pressure monitoring system if faults arise, as well as its integral components, and transmit information on this via the I-bus.

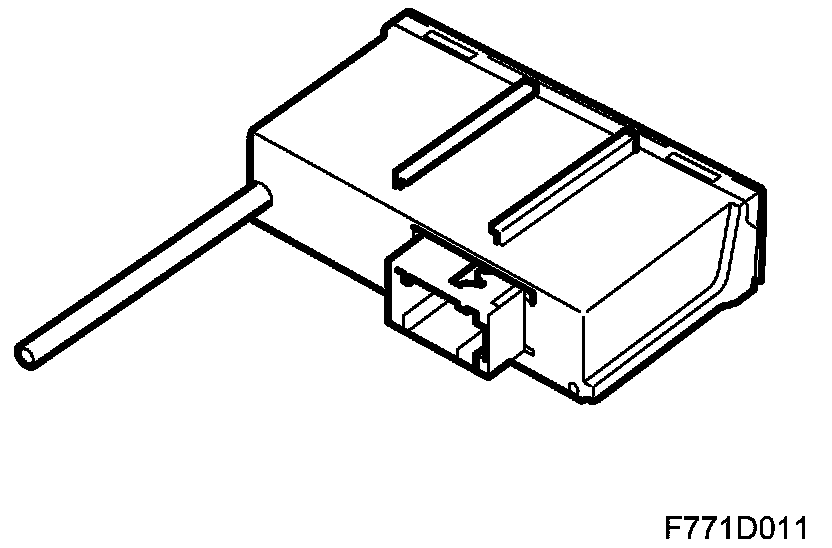

Type
The control module contains a radio receiver, a radio decoder, to signal process the information, a microprocessor and a CAN-driver" to be able to communicate with the I-bus.

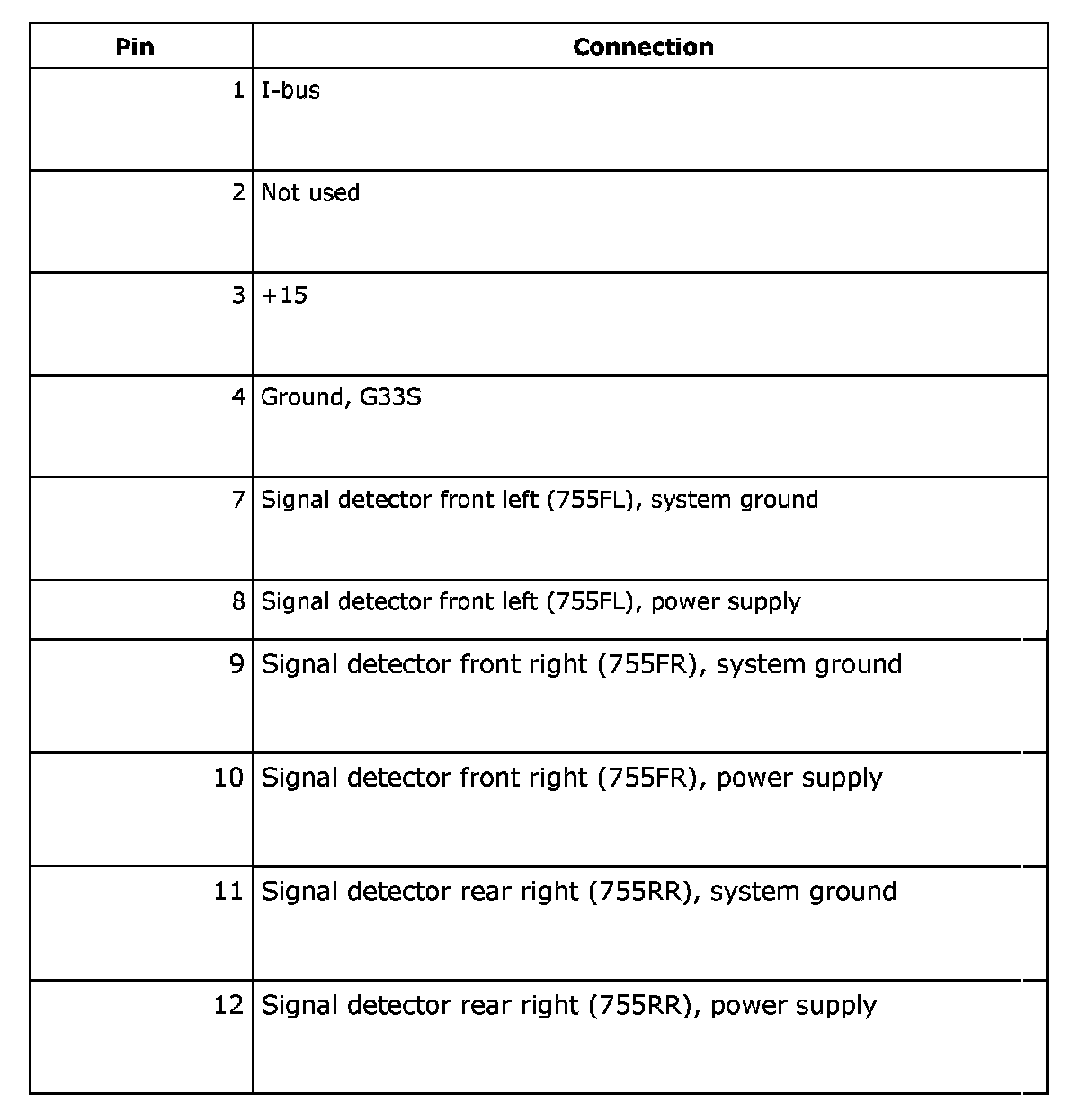

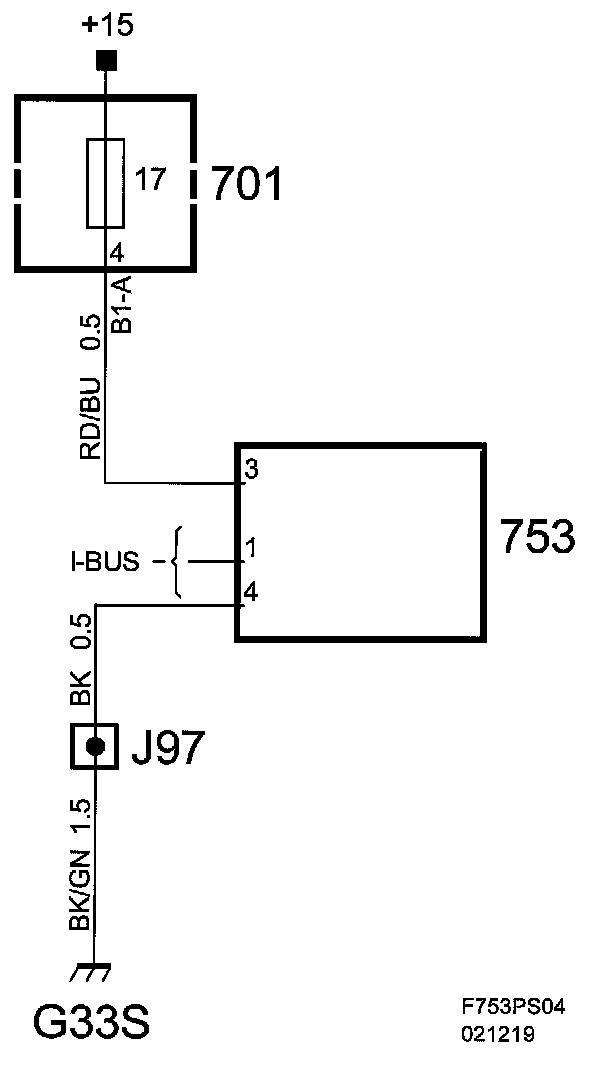

Power supply, ground and bus communication
