Grounding Point G40
Grounding Point G40
Grounding Point G40

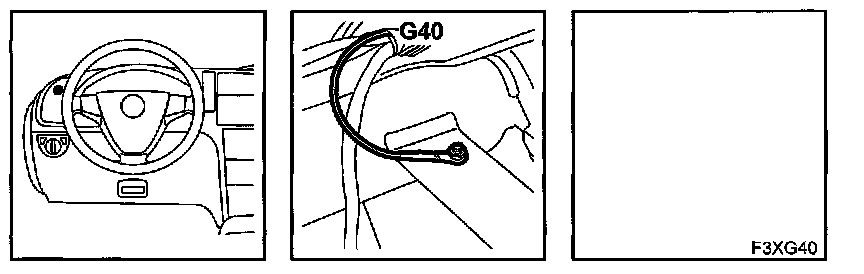

Location:
In the dashboard well to the left of the knee member

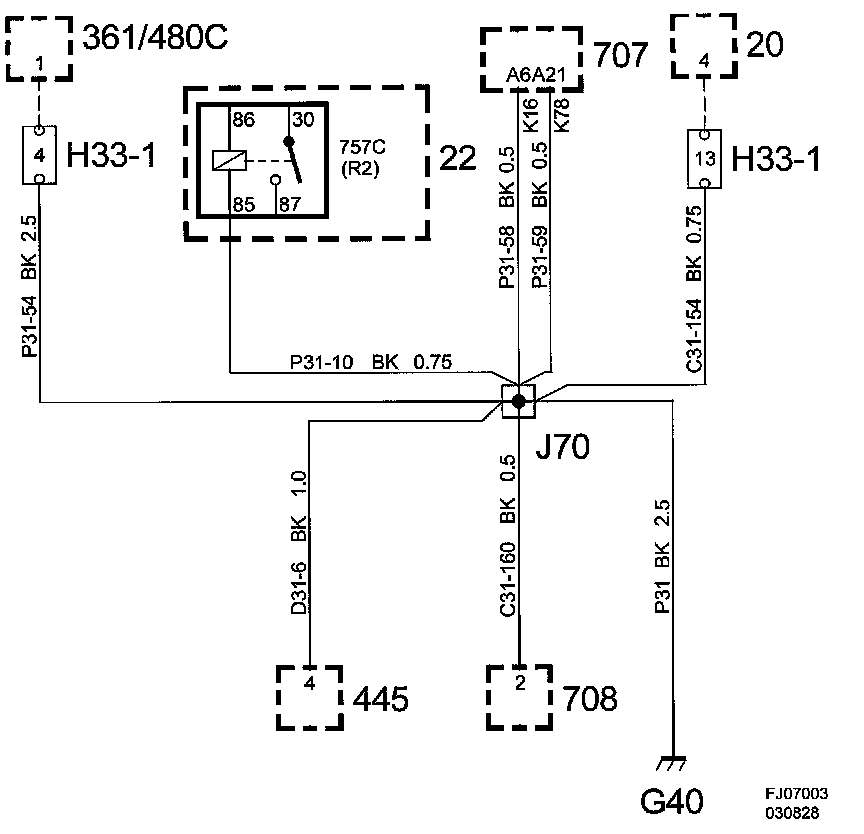

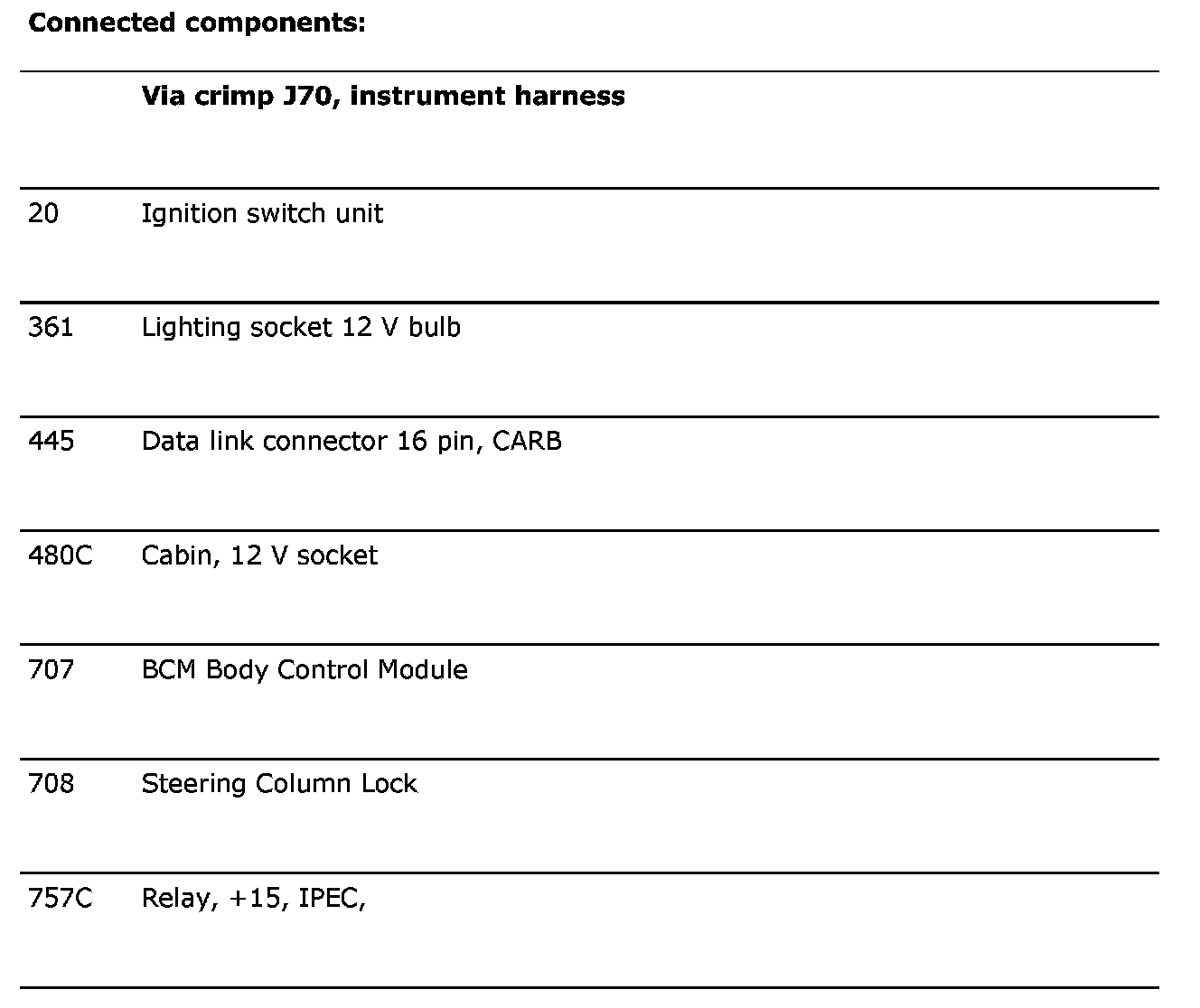

Connected Components:
