Tyre With Tyre Pressure Sensor

Tyre with tyre pressure sensor
To remove
^ Fit the tyre with a tyre fitting machine.

Note: It is also important to follow the instructions for the tyre fitting machine.

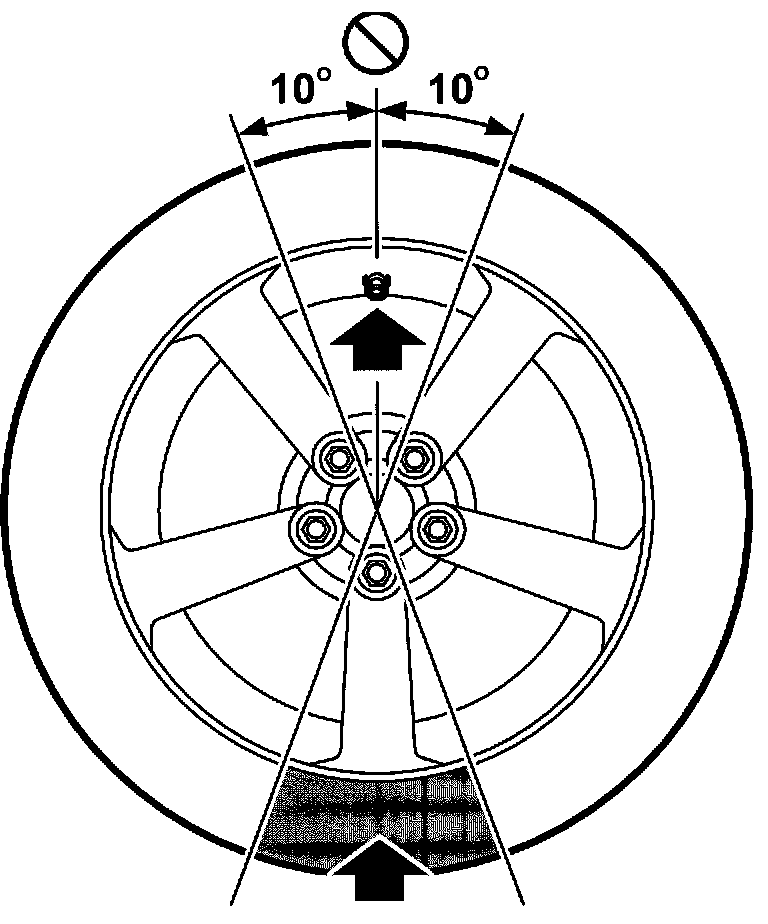

^ Do not apply the tyre tool in an area ±10° from the valve.





^ Start the removal opposite the valve.
^ Remove the rear side first.

To fit
^ Fit the tyre with a tyre fitting machine.

Note: It is also important to follow the instructions for the tyre fitting machine.

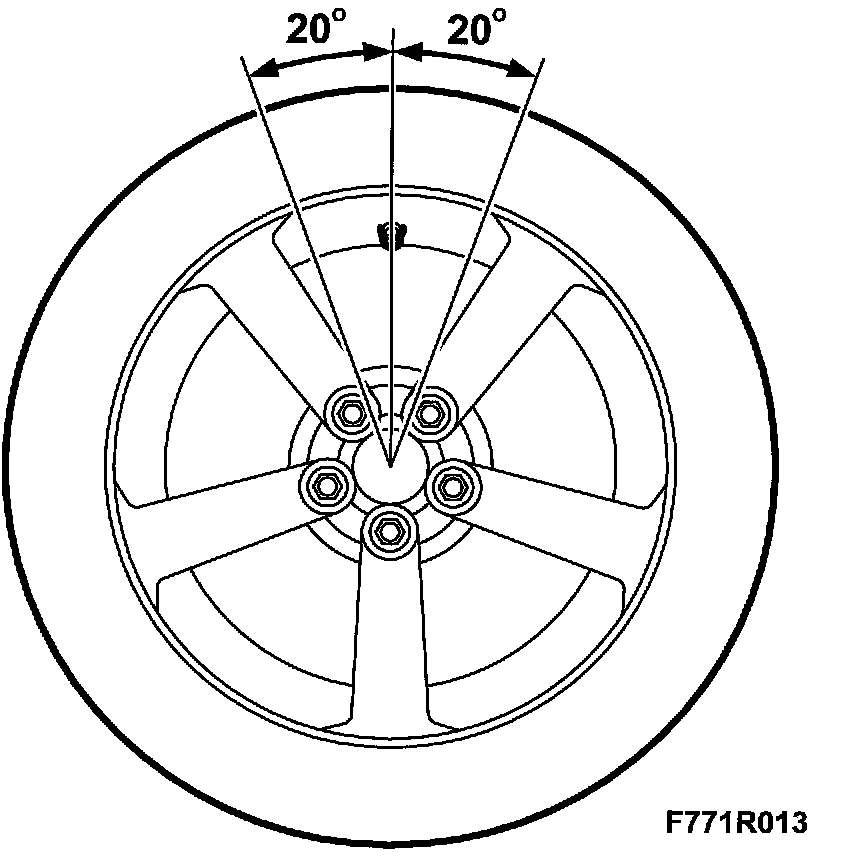

^ Start the fitting approximately 20° after the valve.





^ Complete the fitting inside an area 20° from the valve.
^ Do not inflate the tyre with pressure higher than 7 bar.
