Automatic Headlamp Adjustment

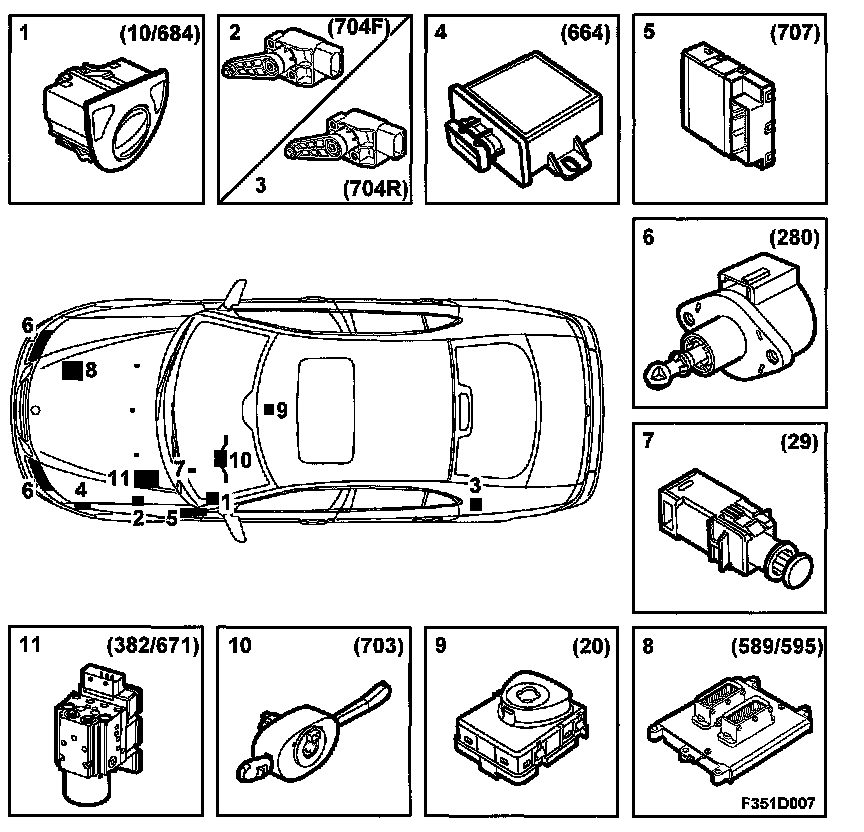

Automatic Headlamp Adjustment, Main Components







1. Unit, light switch (10/684)
2. Tilt sensor, load, front (704F)
3. Tilt sensor, load, rear (704R)
4. Control module AHL (664)
5. Control module, BCM (707)
6. Motor, headlamp adjustment (280)
7. Brake light switch (29)
8. Engine Control Module (ECM)
9. Unit, ignition switch, ISM (20)
10. Column Integration Module, CIM (703)
11. TCS/ESP control module (382/671)
