Locator Light (Halo Light)

Locator Light (Halo Light), Detailed Description

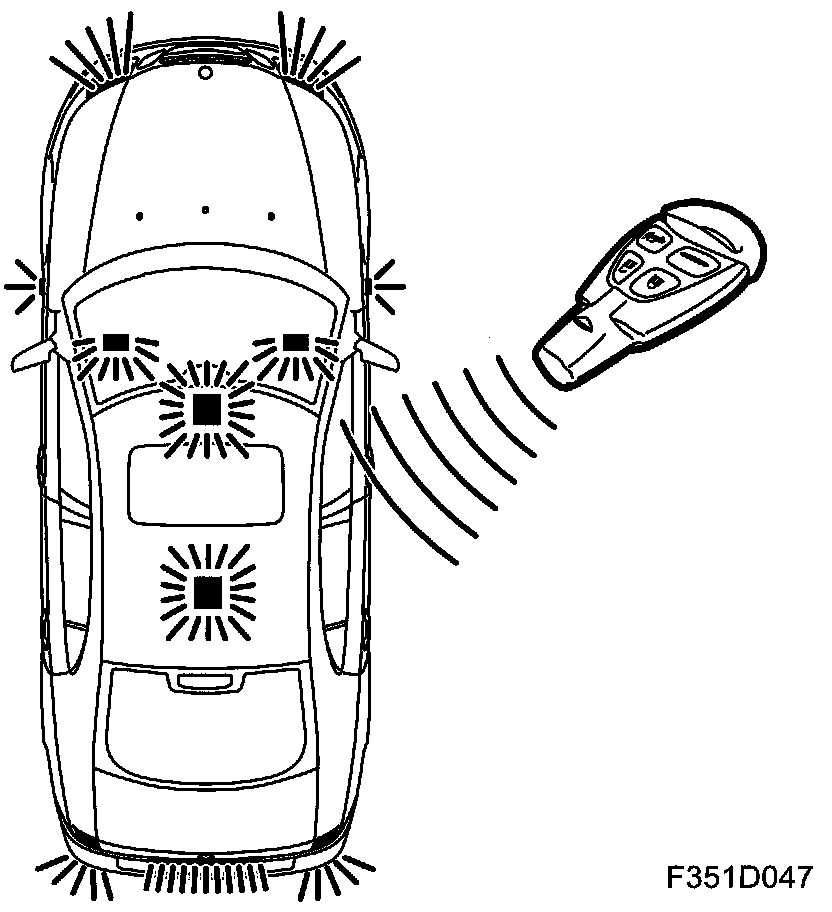

If the panic button on the remote control is held depressed for a short time (less than 2 seconds), the following lamps light:







- Front parking lights
- Side marker lights (US/CA)
- Side direction indicators
- Interior lighting
- Rear parking lights
- Number plate lighting

When the panic button is depressed for a short time, the remote control sends a signal. This signal is received by CIM, which sends the bus message "Remove control panic button active ON", which is used by BCM. BCM sends the bus message "Lead Me To Car Light request ON" if battery voltage exceeds 11 V. This message is used by UEC and REC. BCM also activates interior lighting. The bus message "Lead Me To Car Light request ON" is received by UEC, which activates the outputs for the front parking lights and side direction indicators, and by REC, which activates the outputs for the rear parking lights and the number plate lighting.







The outputs are active for 30 seconds or until the function is deactivated by opening/closing a door or by briefly pressing the remote control panic button again.

This function can only be activated if the key is not in the ignition switch.

NOTE: The panic alarm is activated when the panic button is depressed for more than 2 seconds.
