Ash Tray Lamp: Service and Repair

Bulb, Ashtray

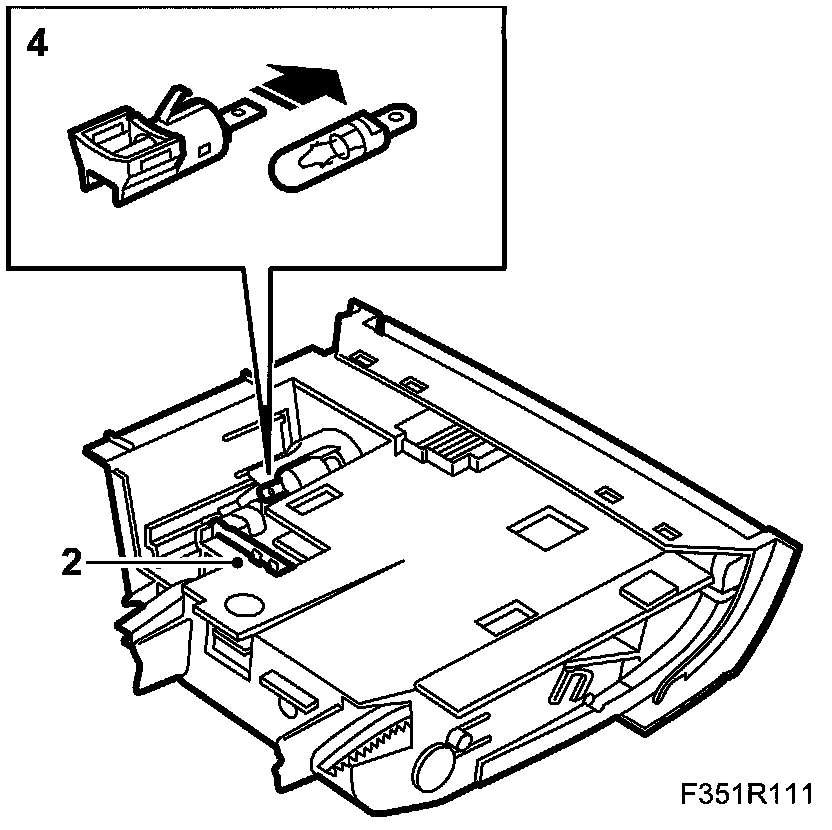

To remove
1. Remove the ashtray.
2. Remove the shaft holding the cigarette lighter and the bulb in place.







3. Press in the catch and remove the cigarette lighter and bulb.
4. Remove the bulb by carefully prising the clips loose.

To fit

IMPORTANT: When changing a bulb, select a new bulb of the correct rating to prevent the components being damaged.

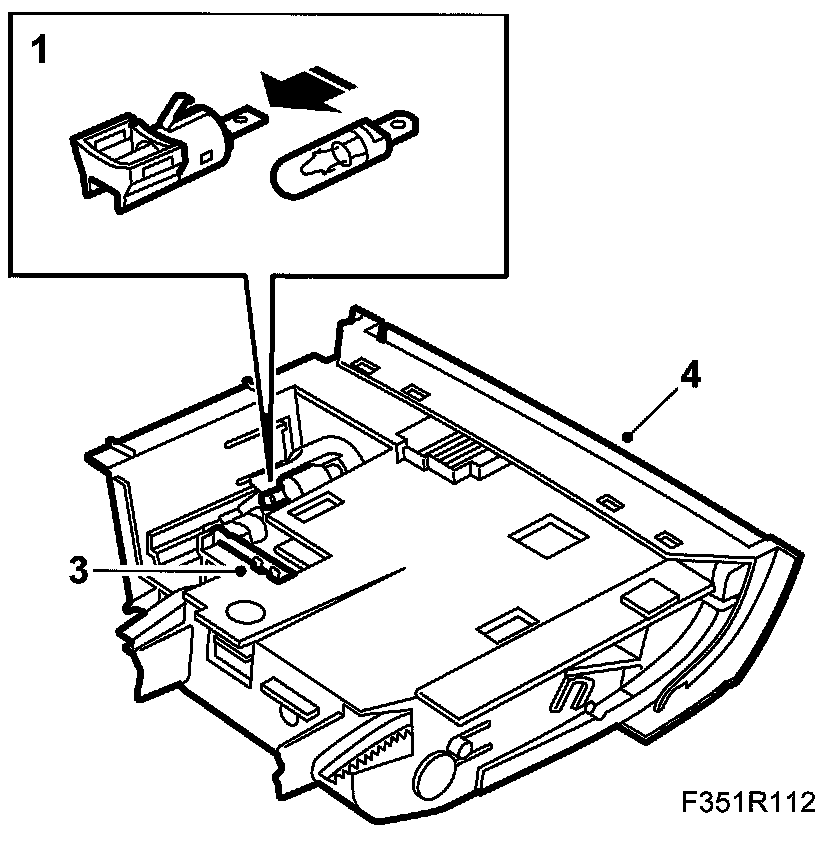

1. Press the bulb of the cigarette lighter into place.







2. Fit the cigarette lighter and bulb.
3. Fit the shaft.
4. Fit the ashtray.
