Tyre Pressure Monitoring, Bus Information

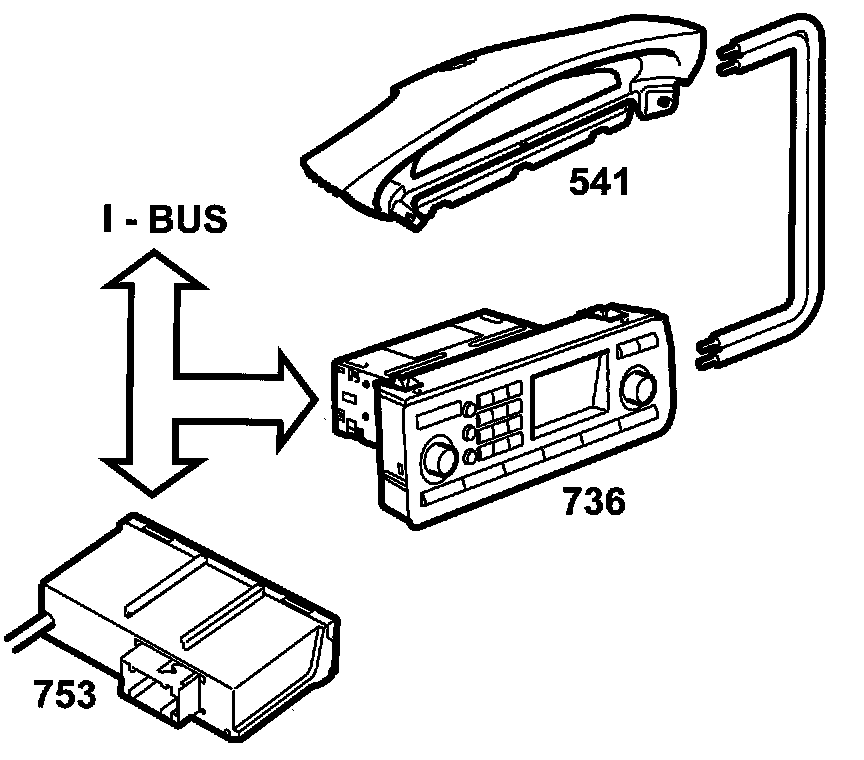

Tyre pressure monitoring, bus information




Part 1:




Part 2:

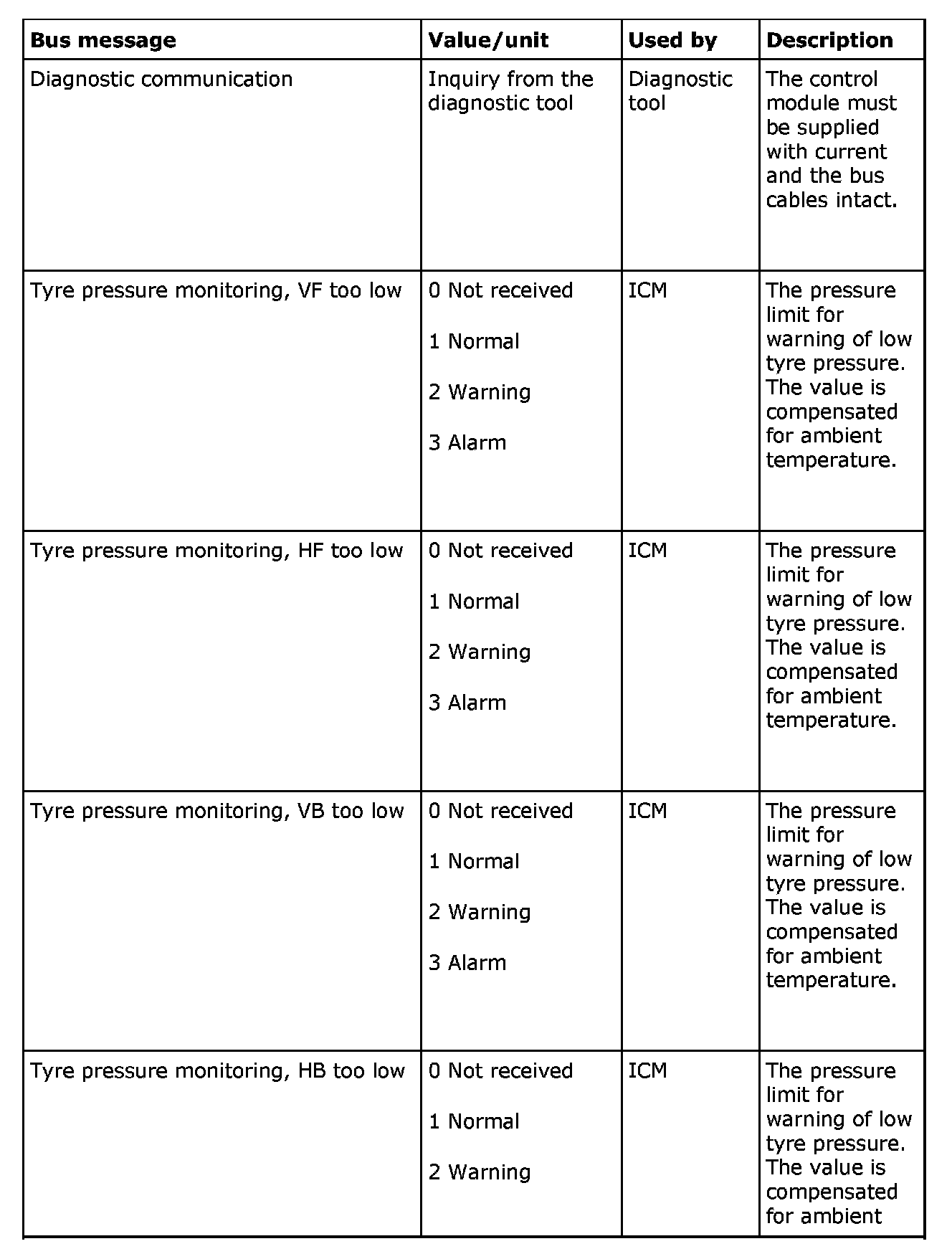

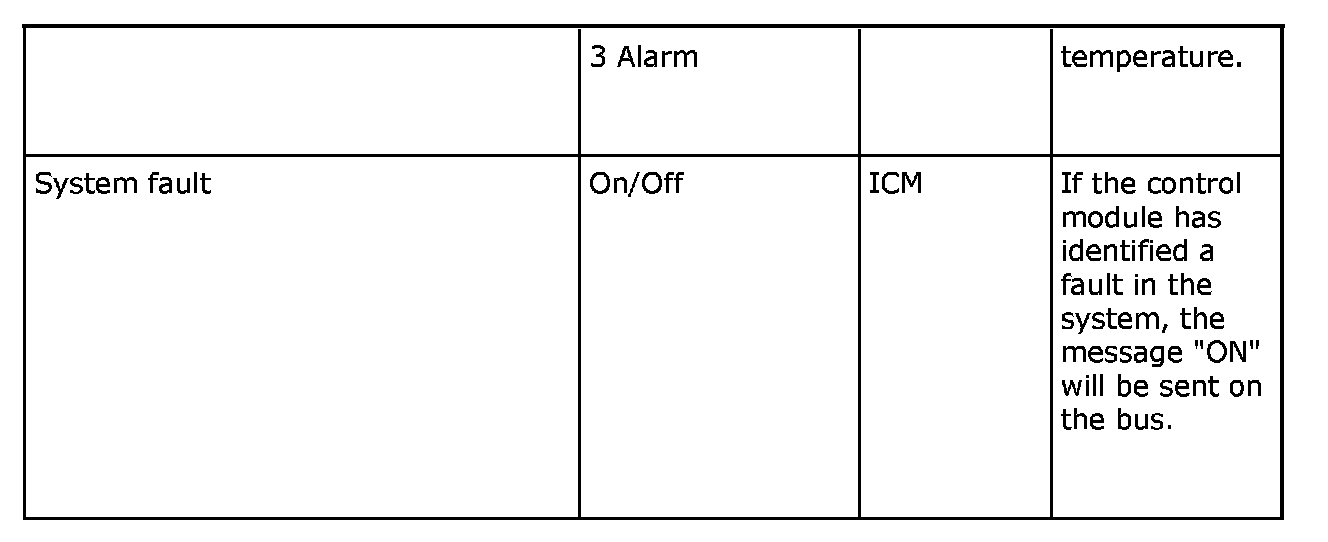

Tyre pressure monitoring outputs the following information

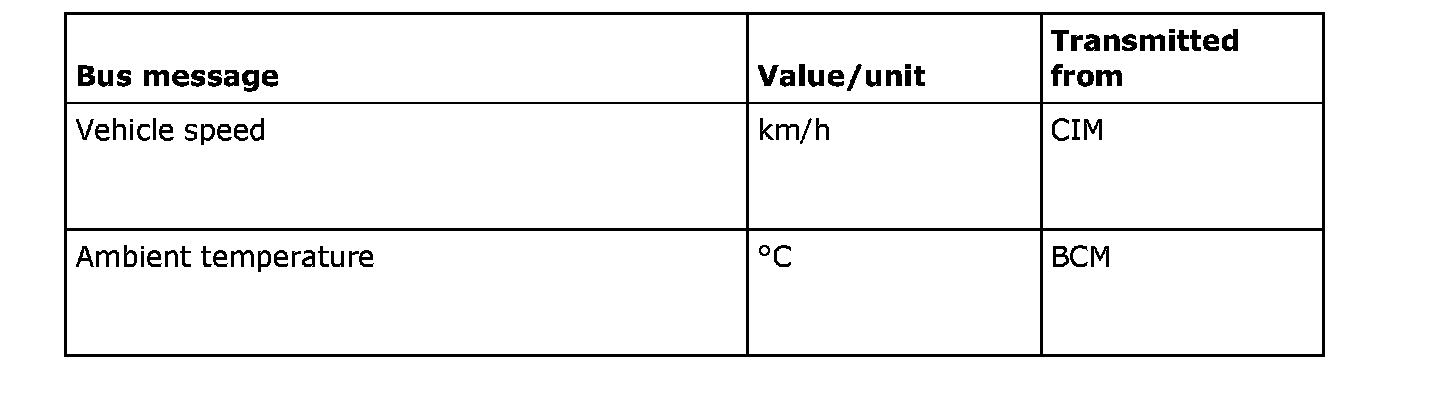

Tyre pressure monitoring uses the following information
