Manual Climate Control Up to and Including VIN 41018684

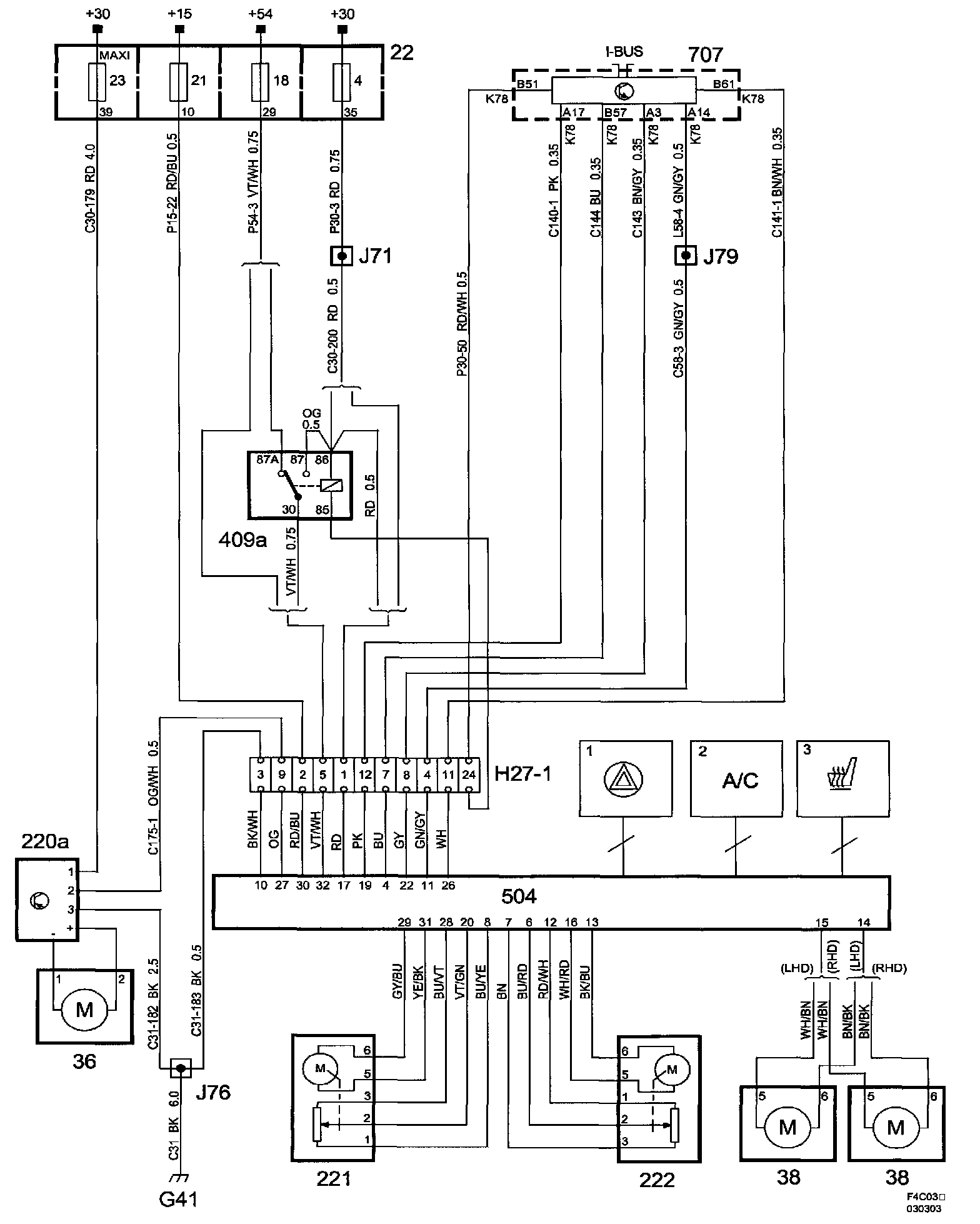

Manual Climate Control Up To And Including VIN 41018684:

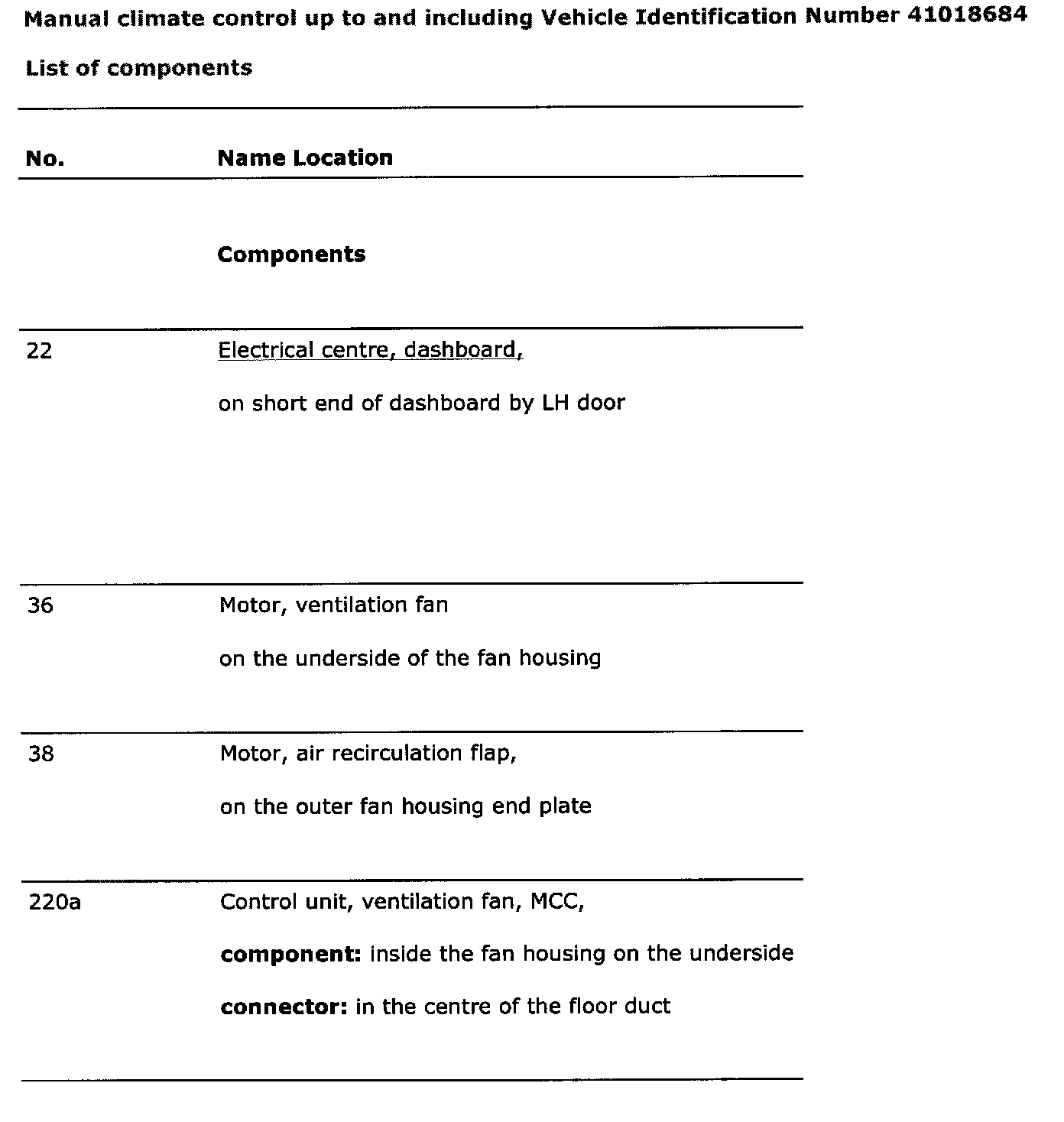

List Of Components (Part 1):

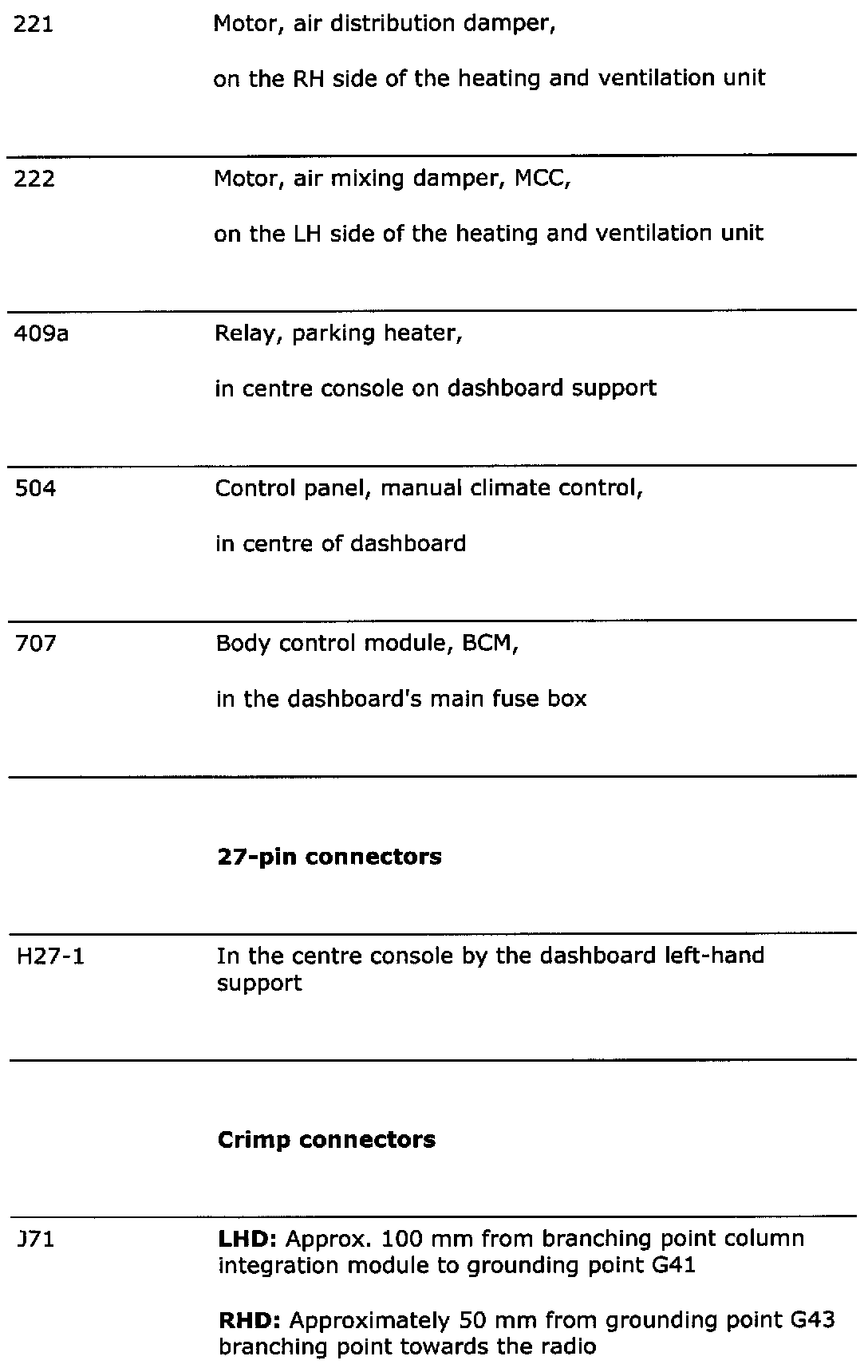

List Of Components (Part 2):

List Of Components (Part 3):

The control panel also controls:
1. Hazard warning lights
2. Air conditioning A/C, petrol
Air conditioning A/C, diesel
3. Electrically heated seats

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
