Home >> Saab >> 2004 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Locations >> Splice Locations >> Crimp Connection J170, Parking Heater Wiring Harness

Crimp Connection J170, Parking Heater Wiring Harness

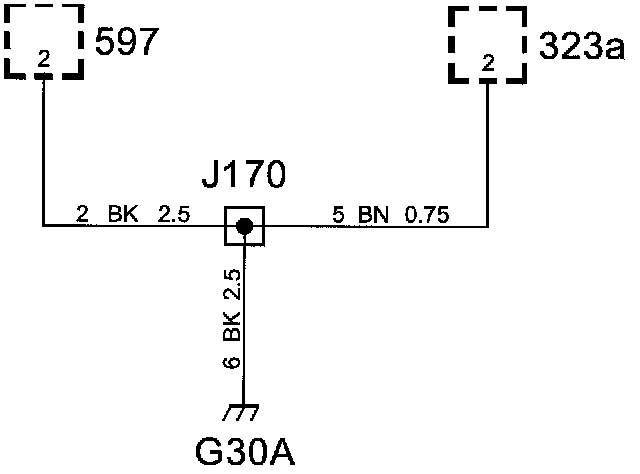

Crimp J170, parking heater wiring harness

Location: Approximately 60 mm from branching point parking heater towards grounding point G30A

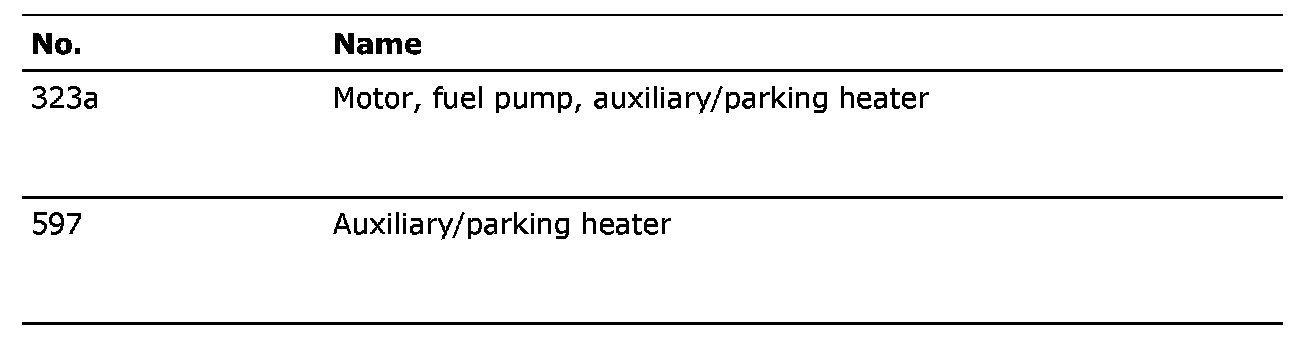

List of components
