Home >> Saab >> 2004 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Locations >> Splice Locations >> Crimp Connection J1, Front Harness

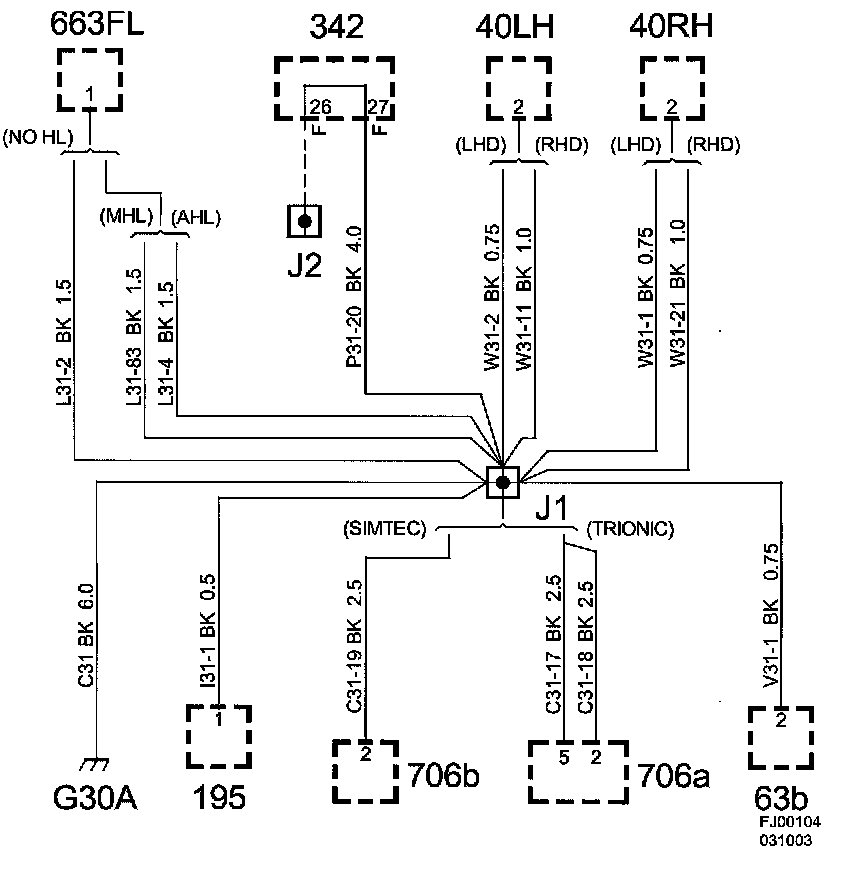

Crimp Connection J1, Front Harness

Crimp connection J1, front harness
Location: Approximately 210 mm from branching of grounding point G30 towards the left headlamp

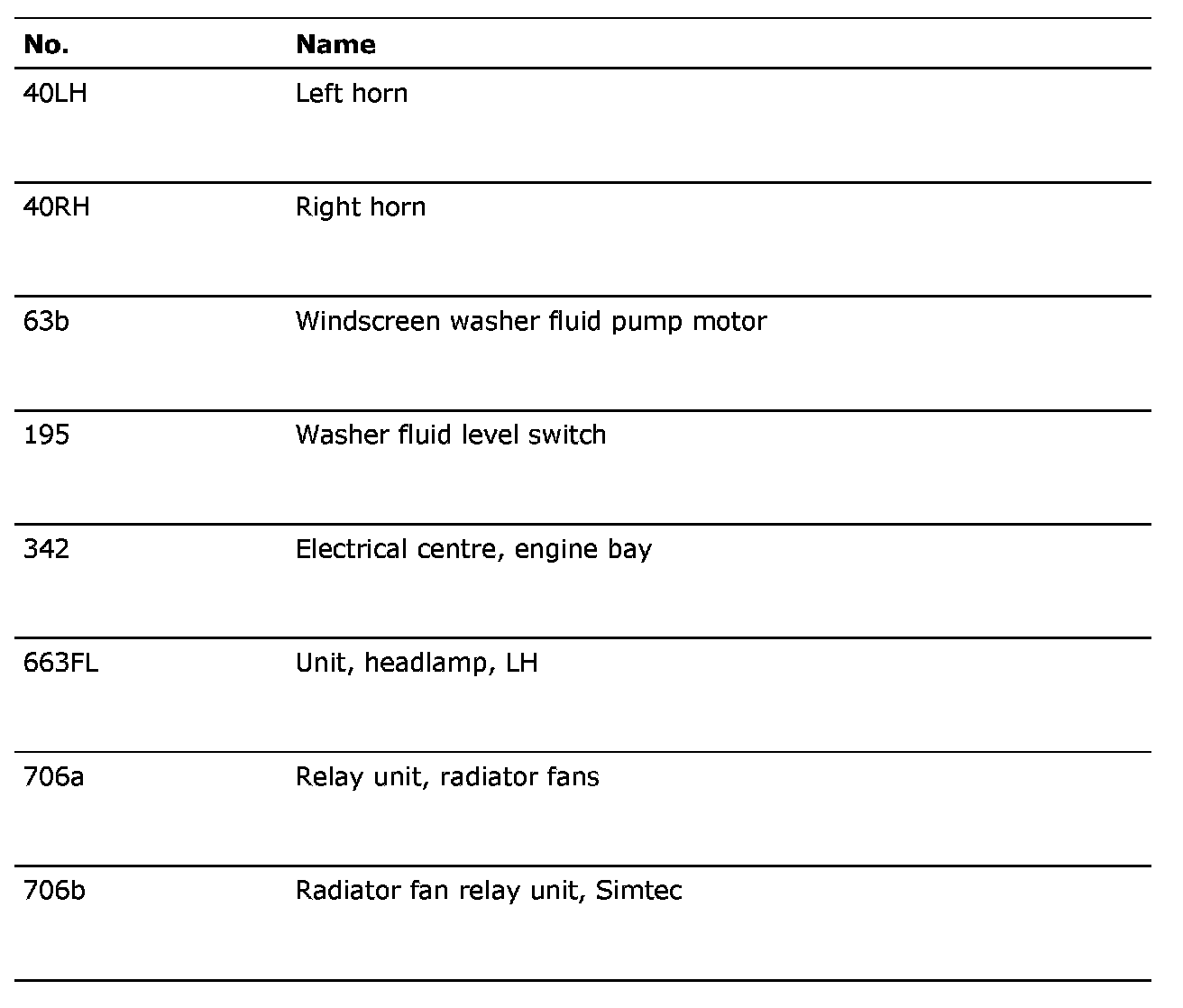

List of components

Crimp connection 32, front harness
