Ground Locations

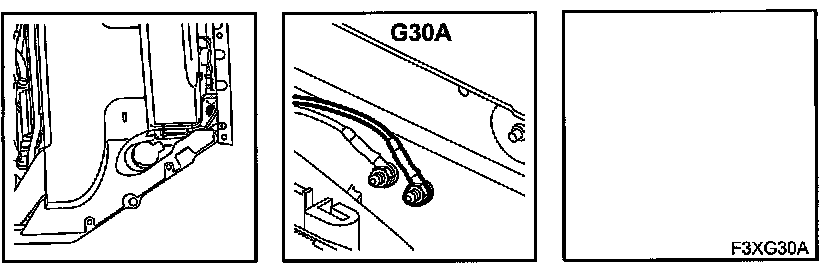

Grounding point G30A





Location: Front grounding point on the side plate above the LH front wheel housing

The grounding point is connected to grounding point G30B via crimp J1, the main fuse box in engine bay 342 and crimp J2.

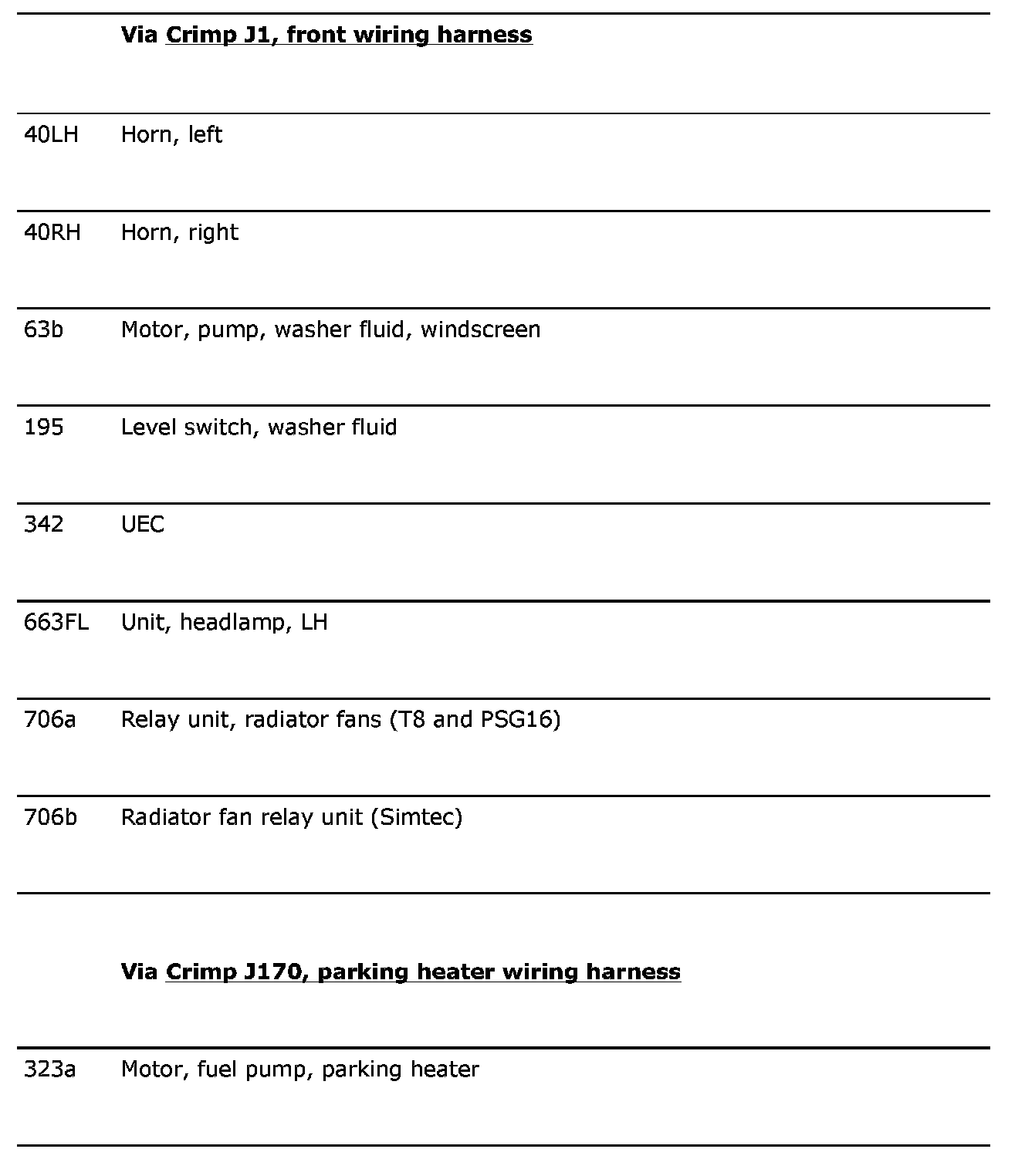

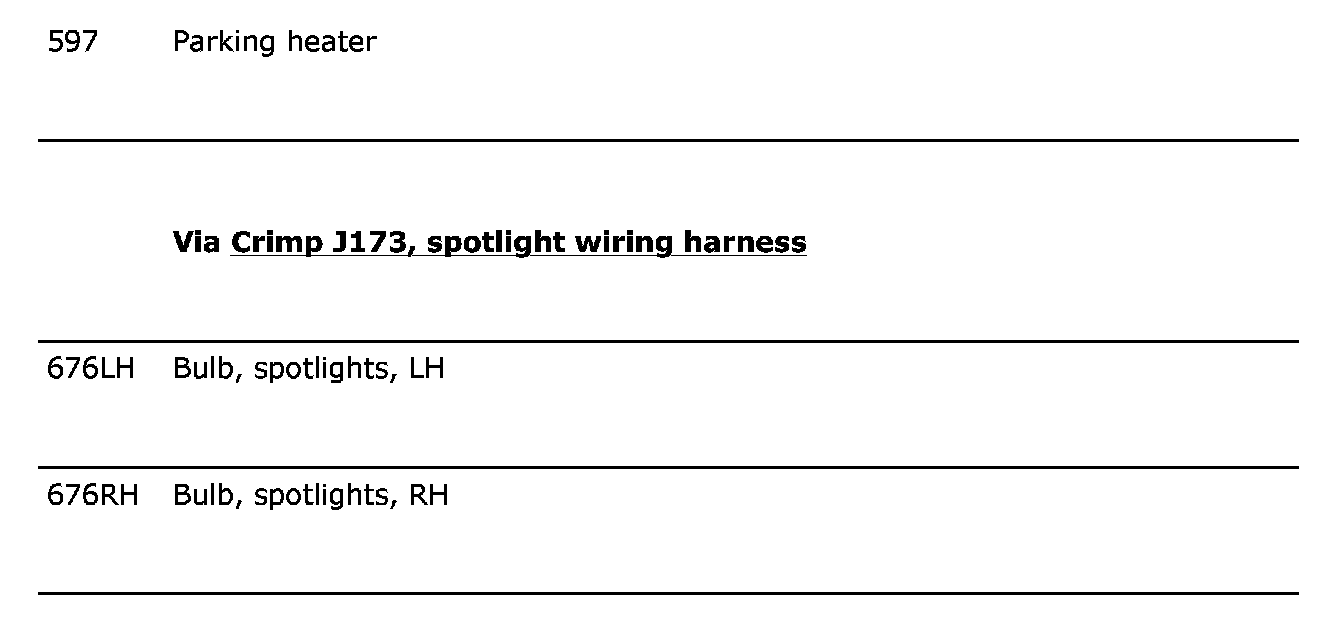

Connected components:
