Crimp Connection (all)
Crimp Connection (all)
Crimp Connections

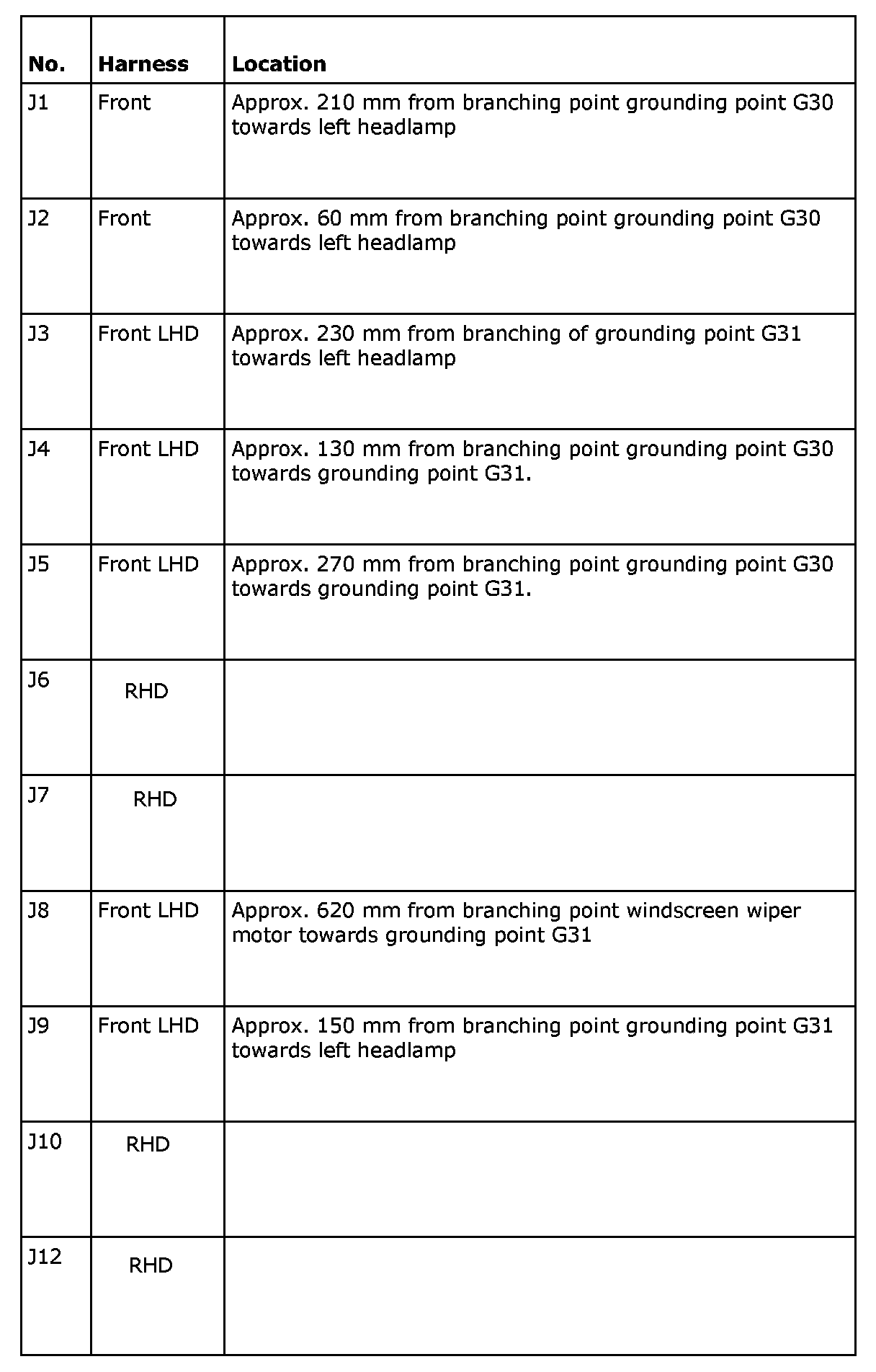

J1 To J12:

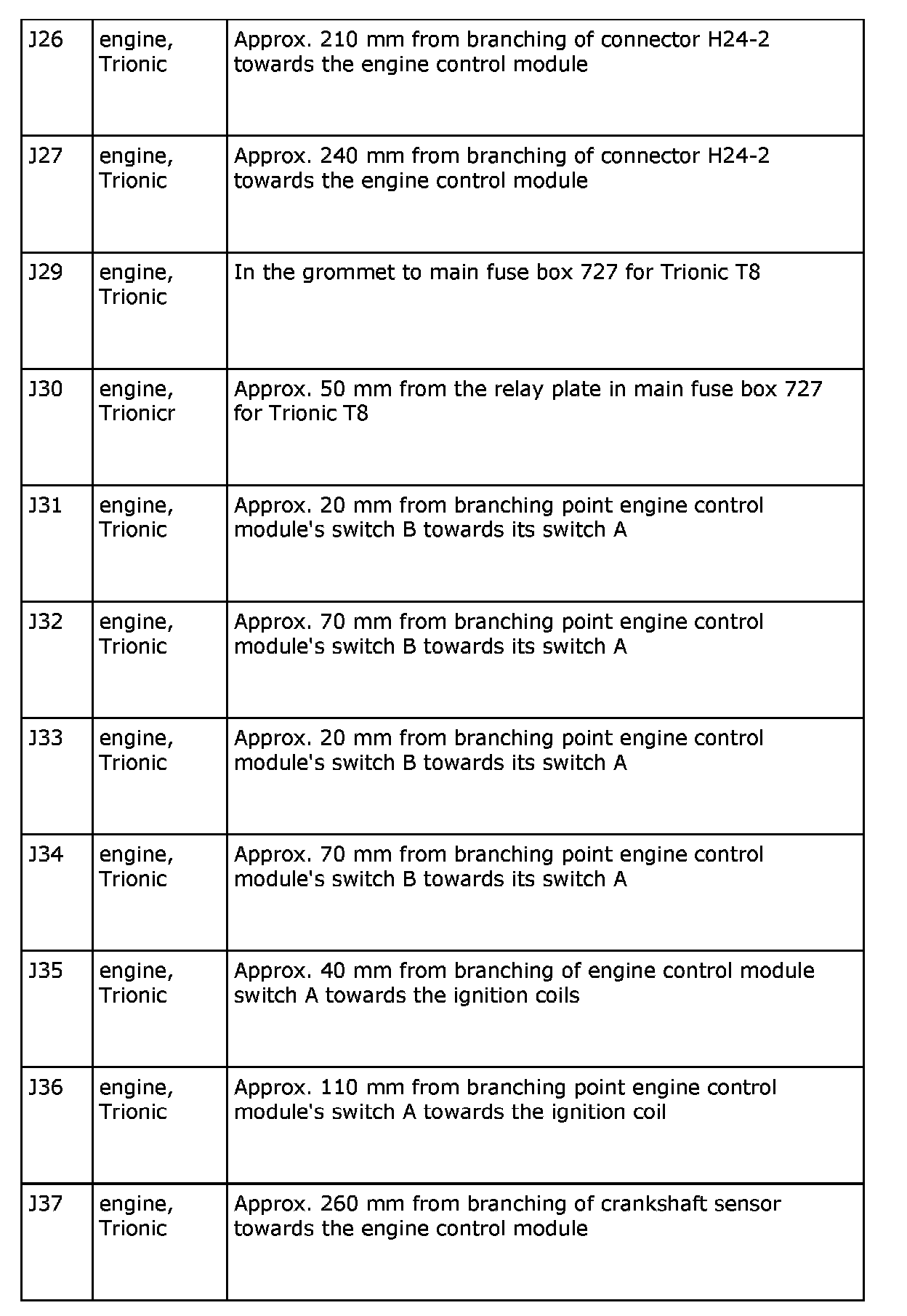

J26 To J37:
J38 To J52:
J53 To J67:

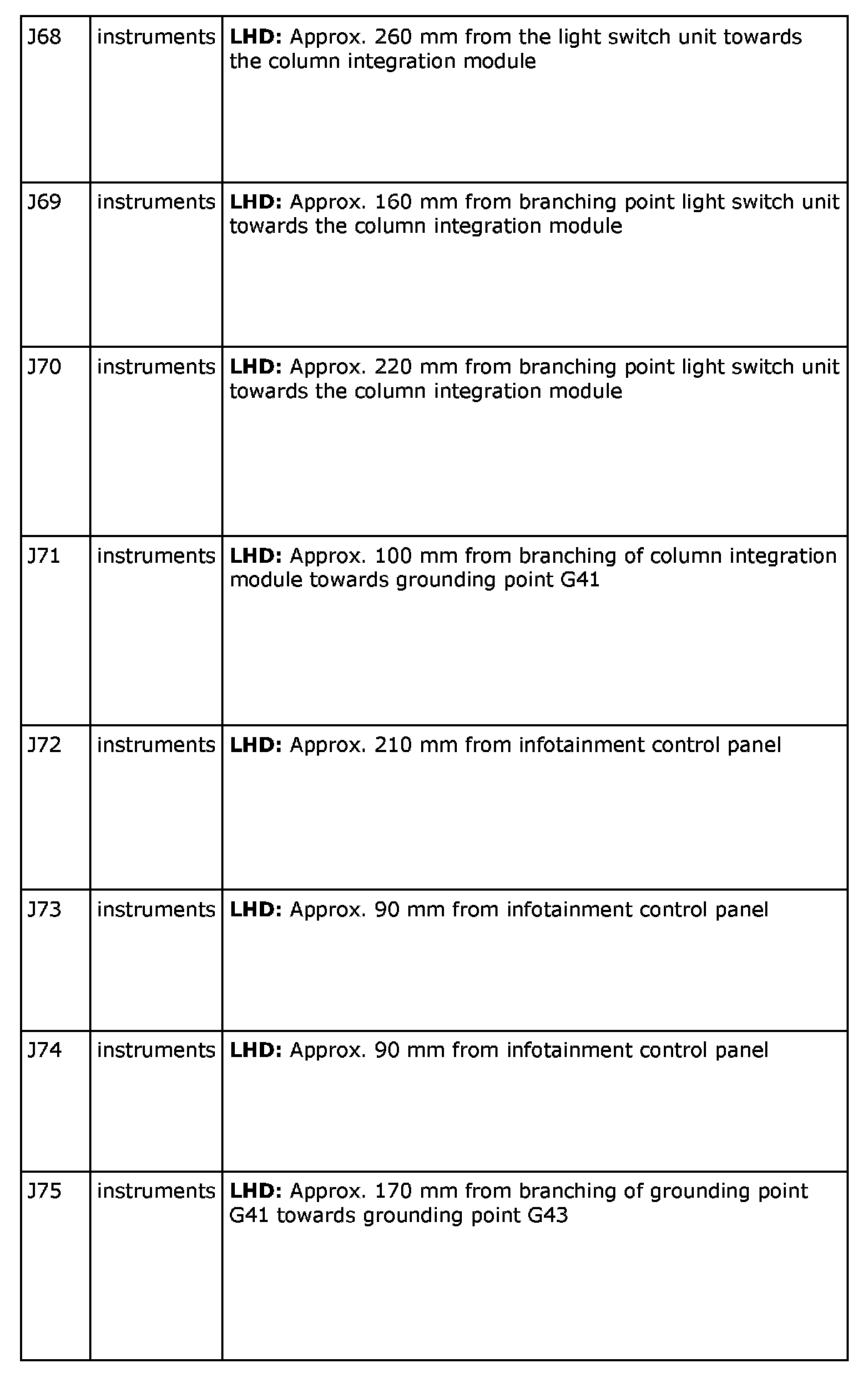

J68 To J75:

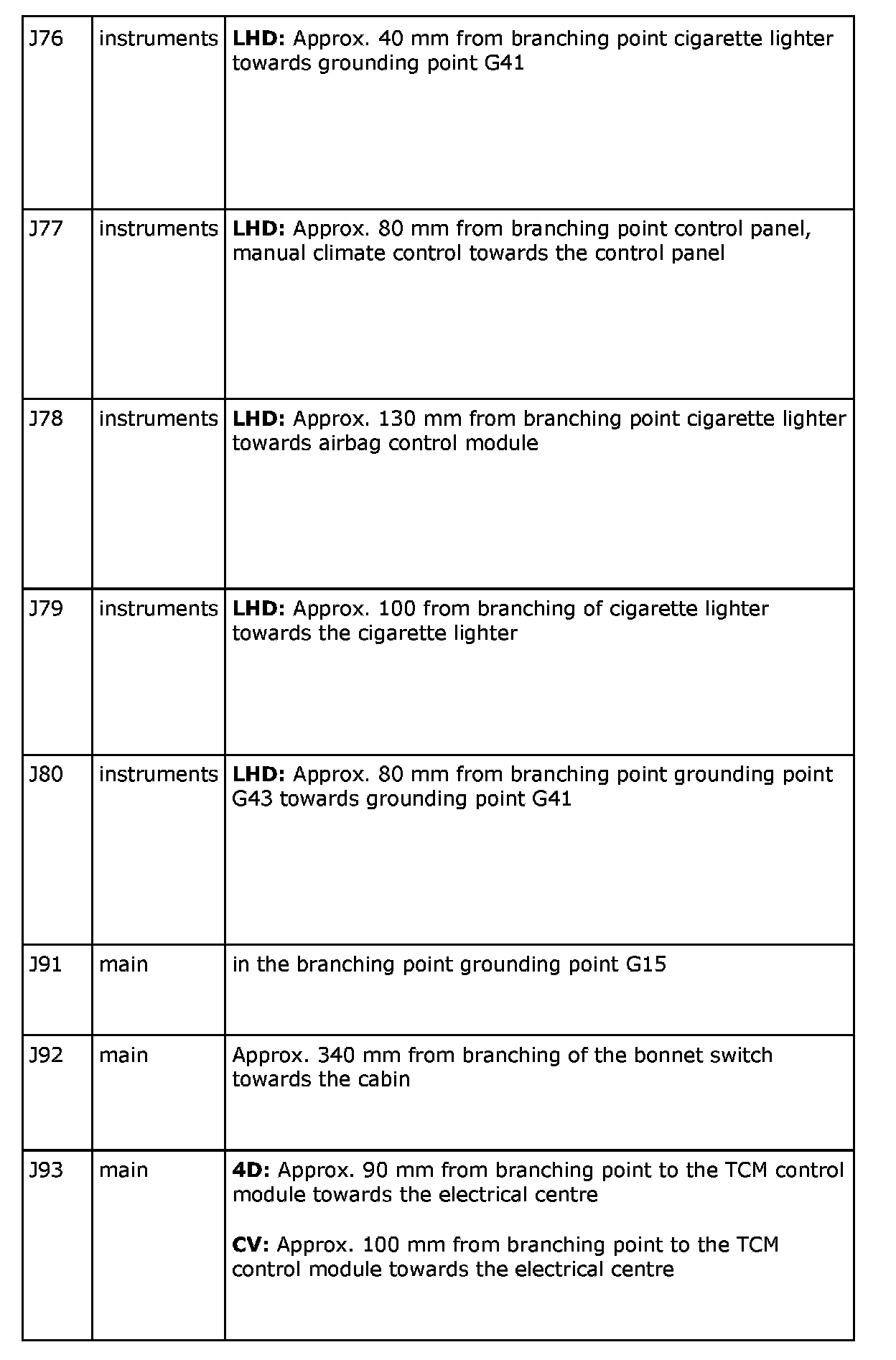

J76 To J93:

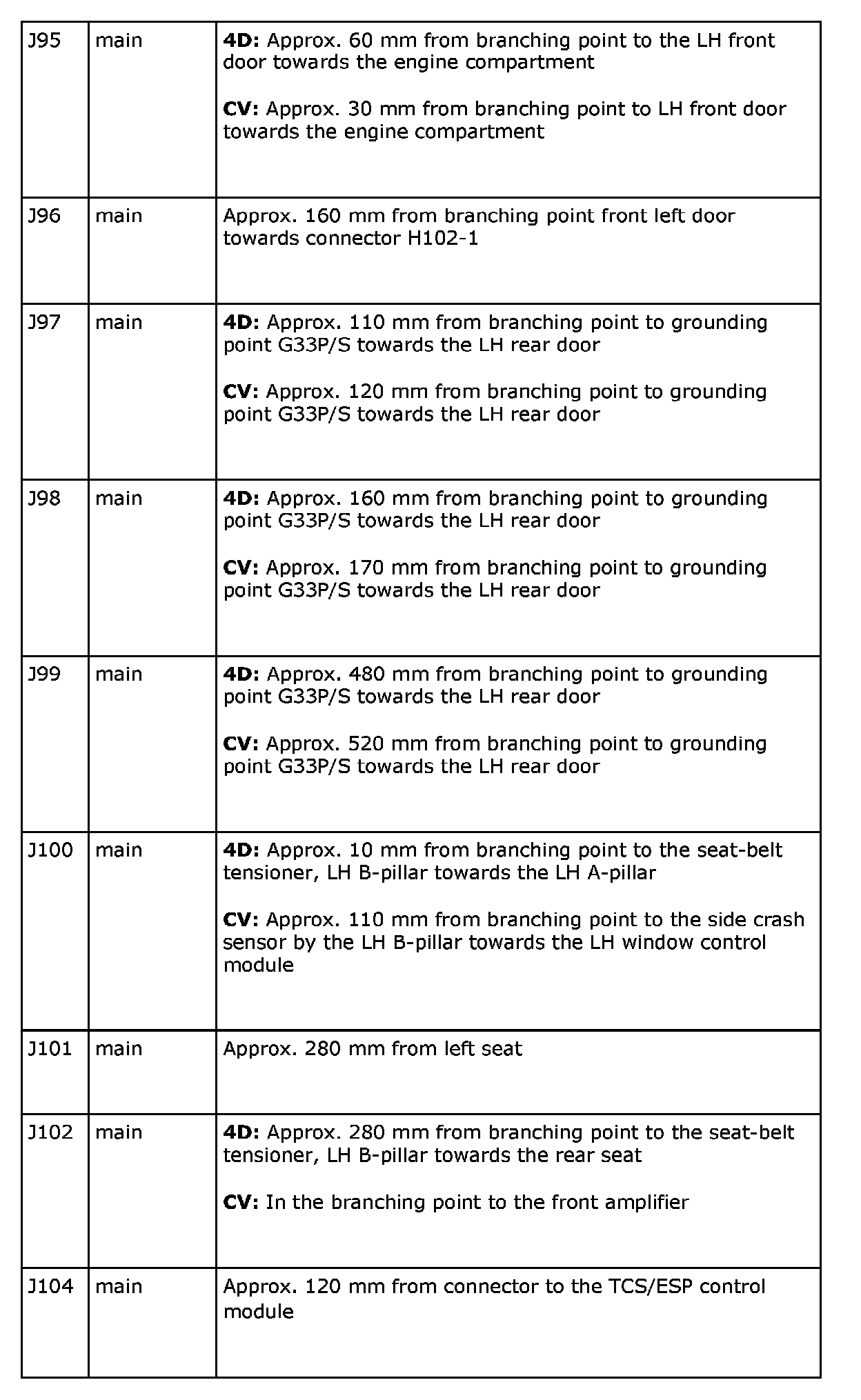

J95 To J104:

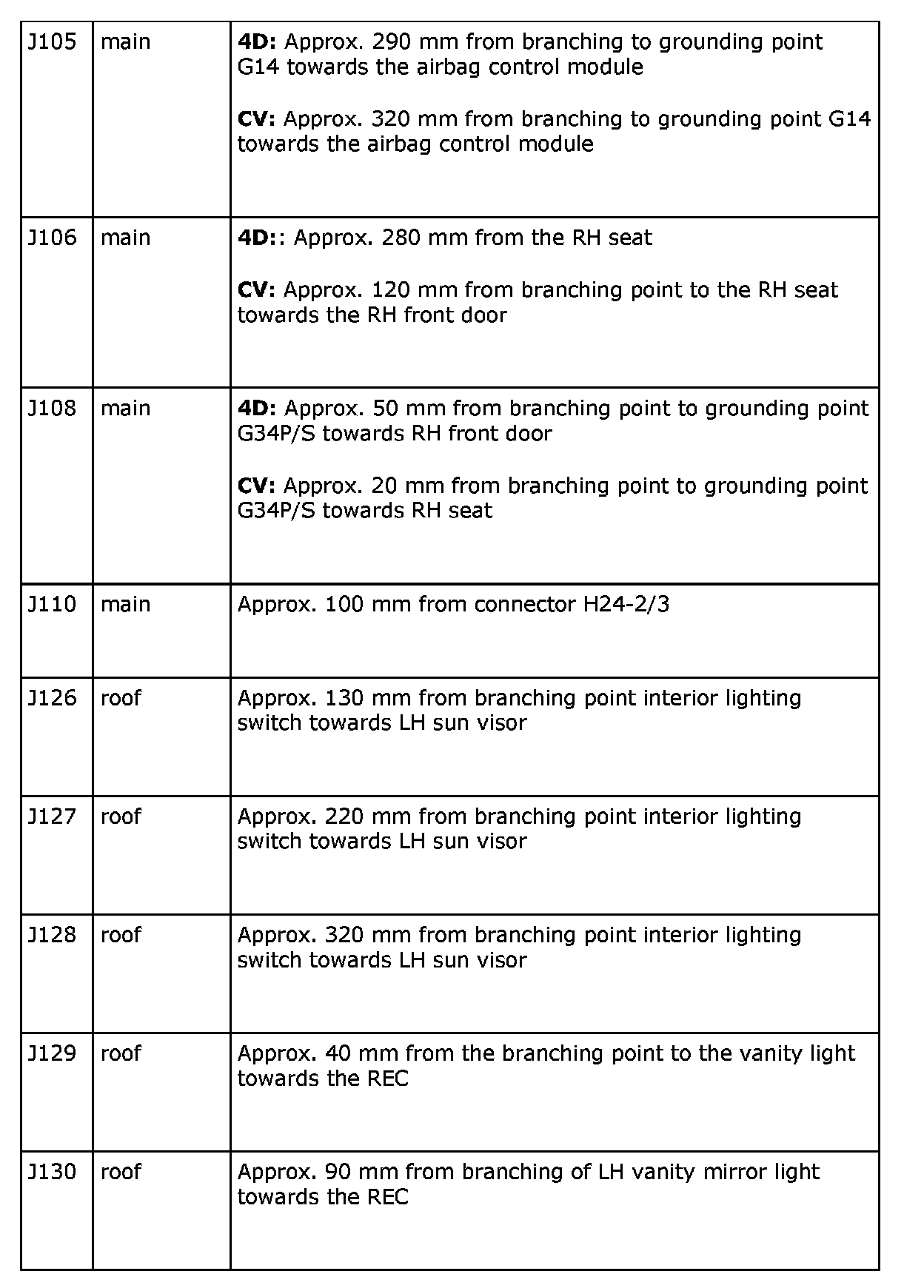

J105 To J130:

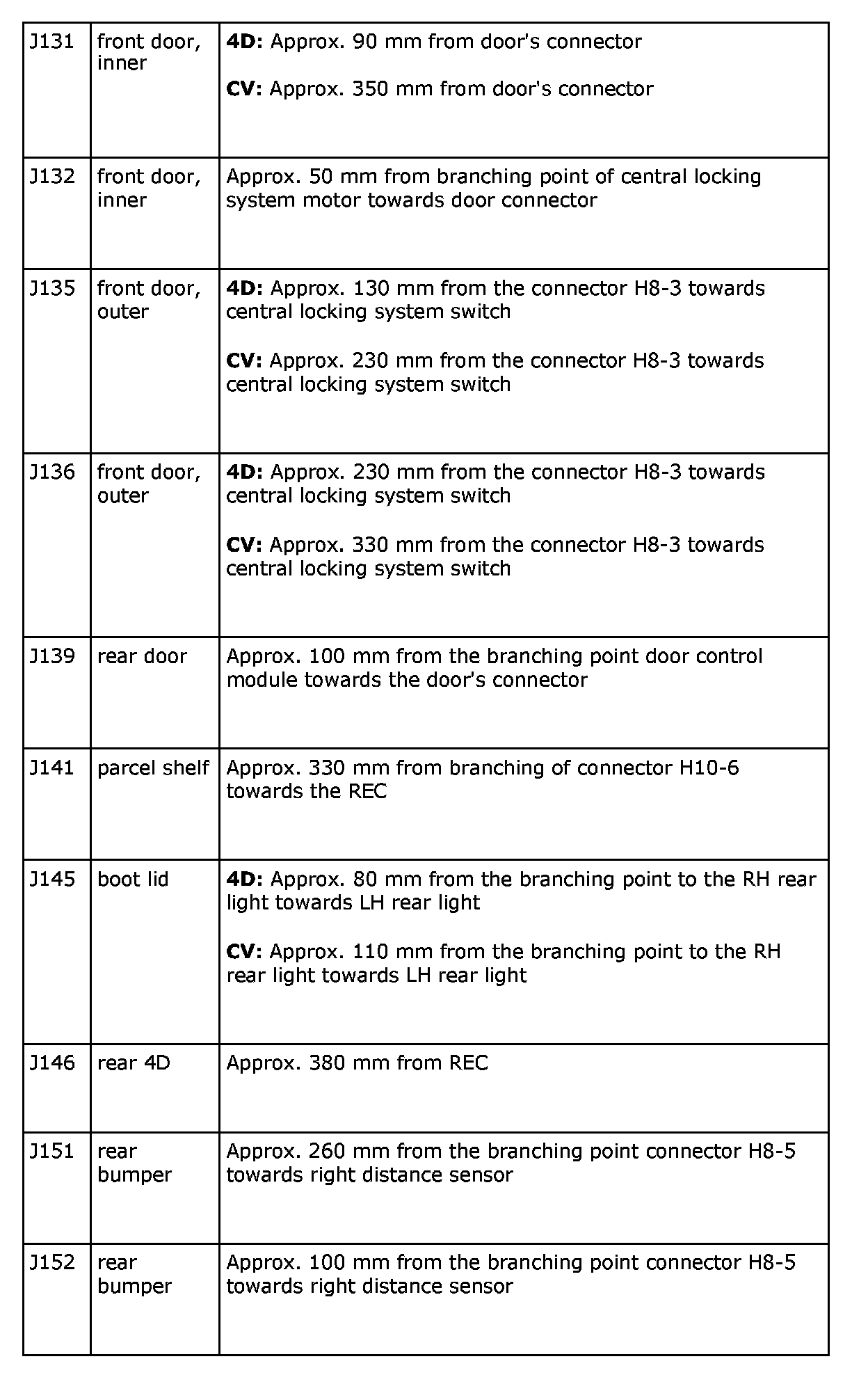

J131 To J152:

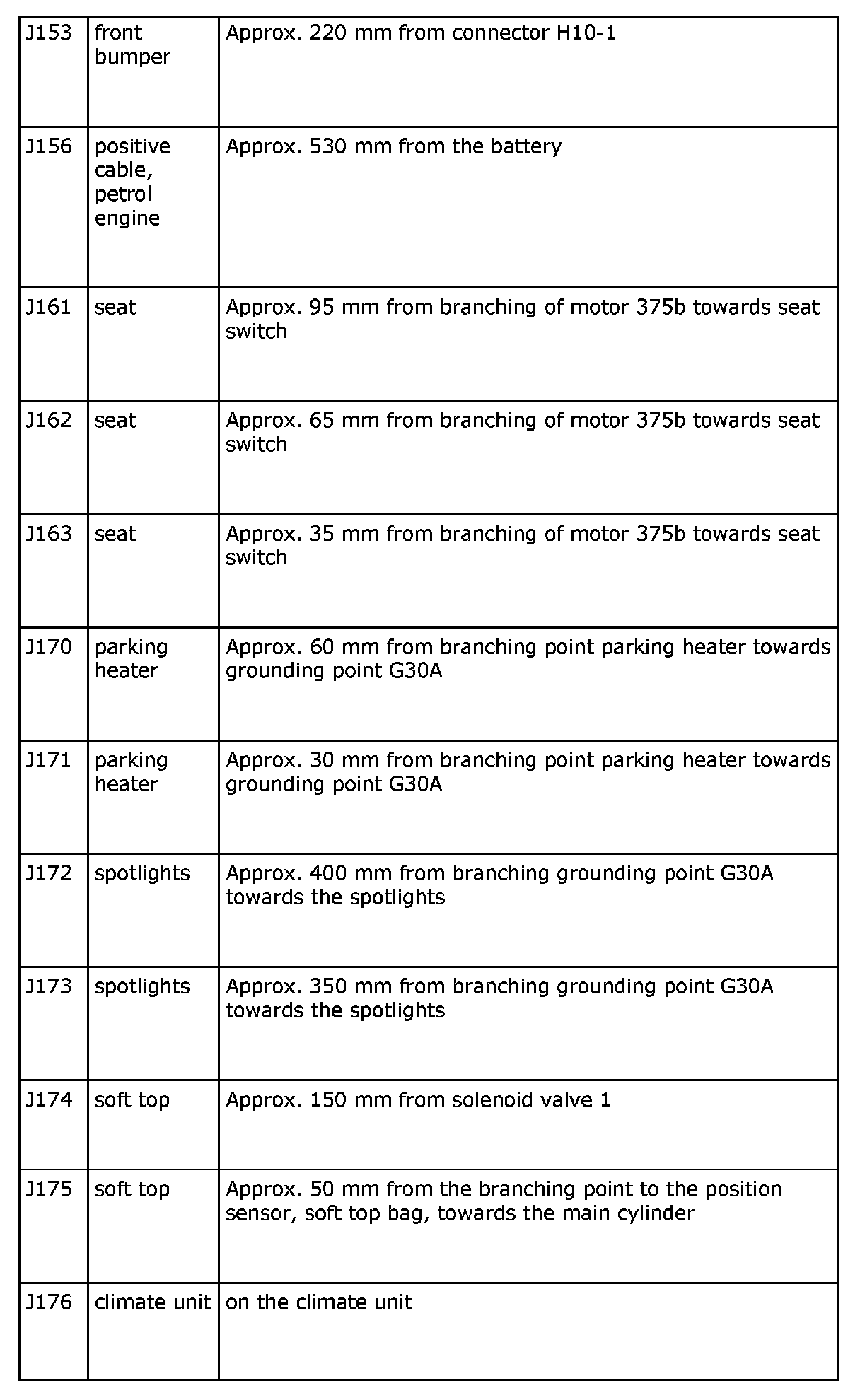

J153 To J176:

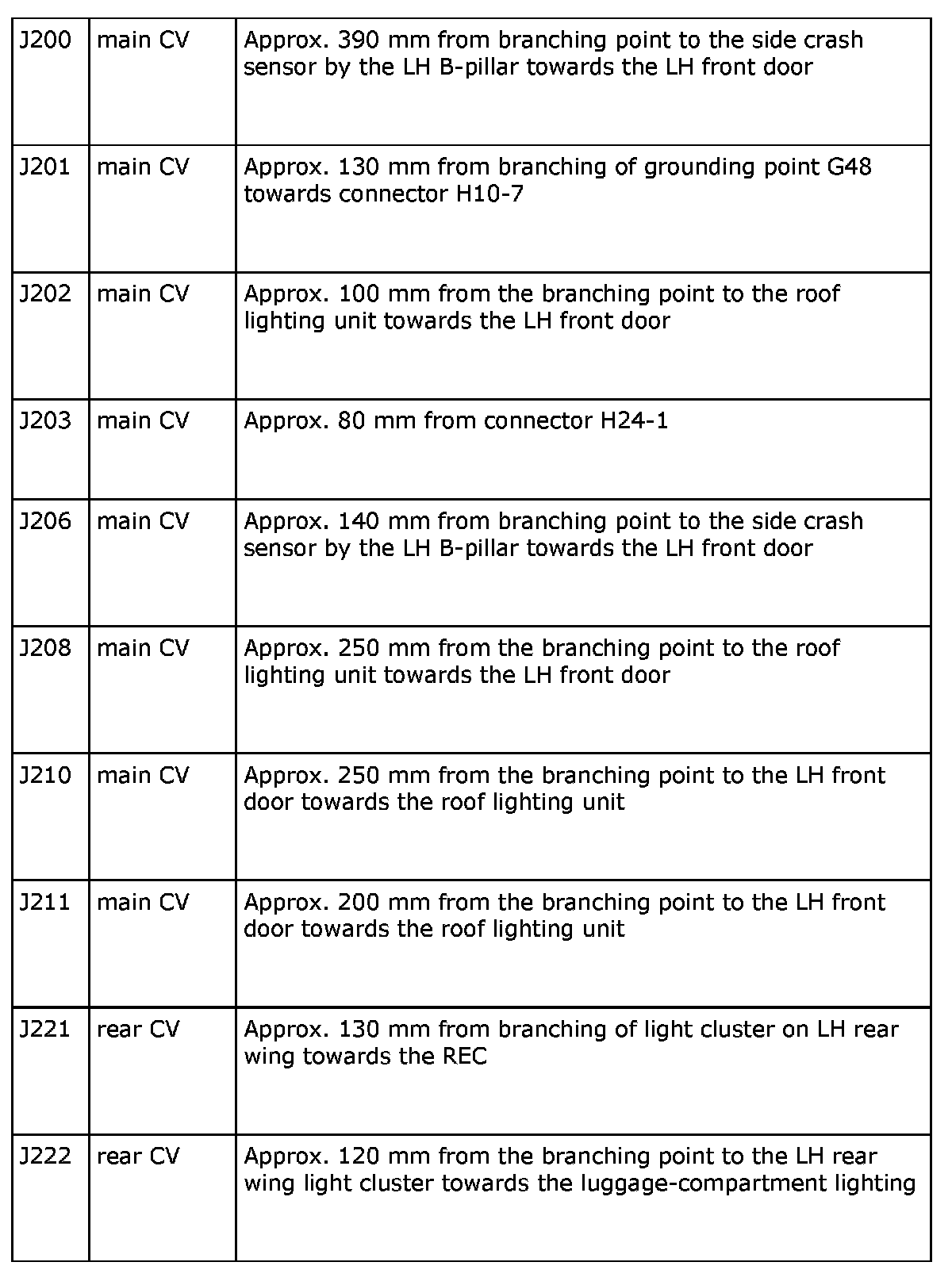

J200 To J222:
