Grounding Point G41



Grounding Point G41

Diagram:

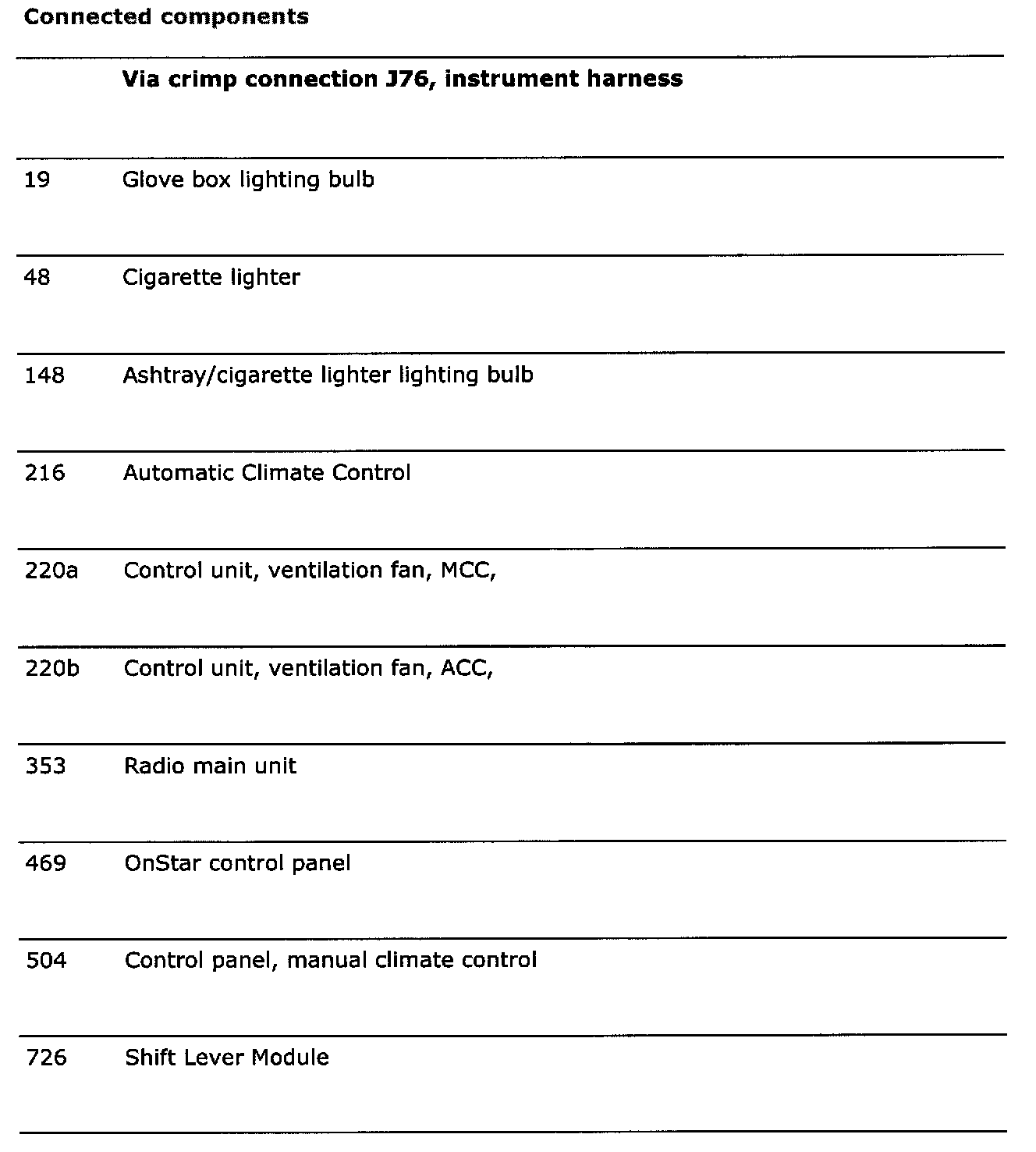

Connected Components:






Location: In the instrument space to the right of the knee member


Grounding Point G41:
