Grounding Point G31

Grounding Point G31

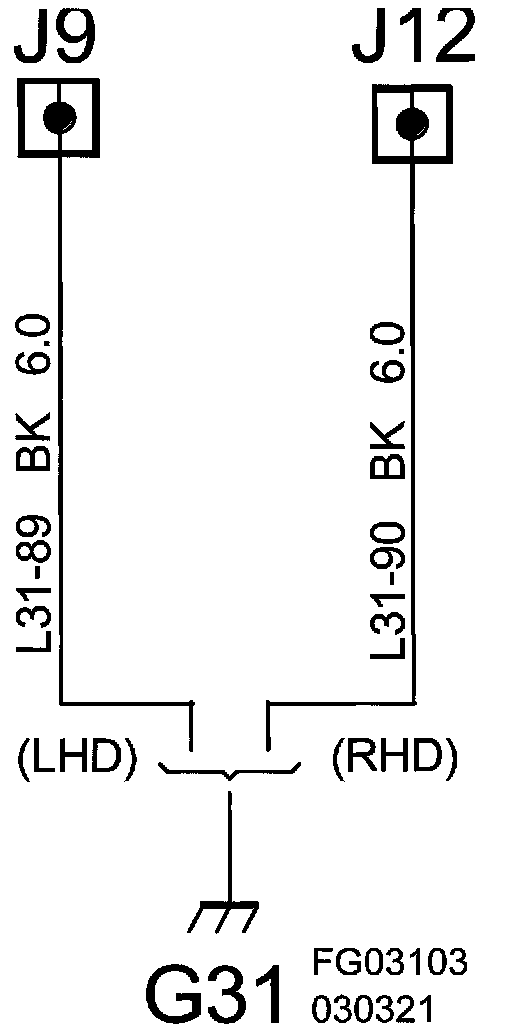

Grounding Point G31:

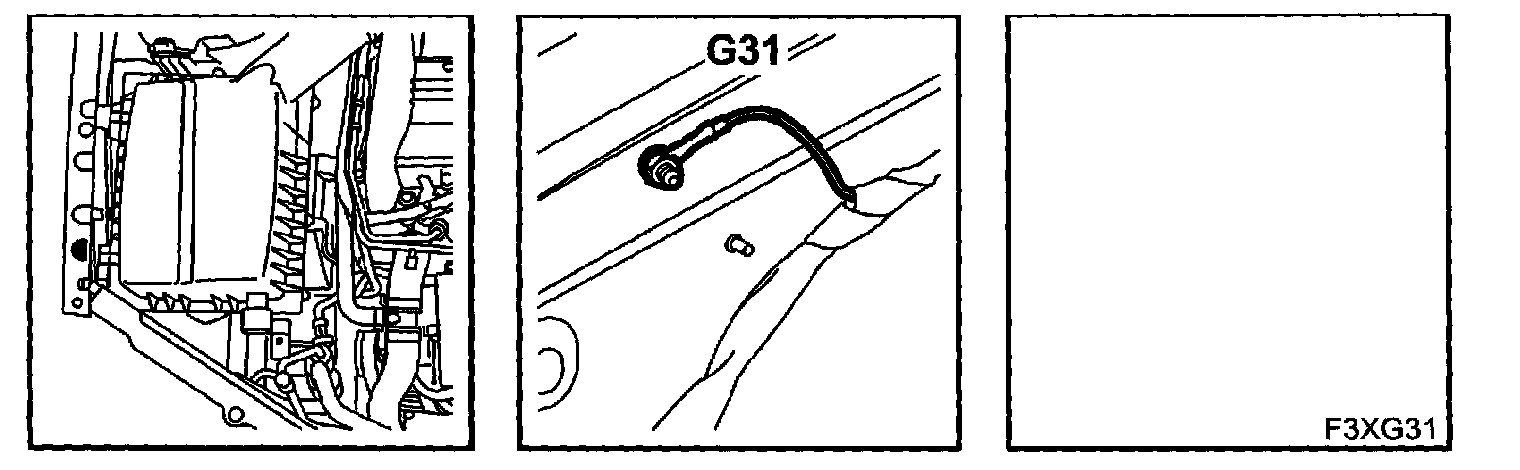

Location: In the engine bay on the side plate above the right wheel housing

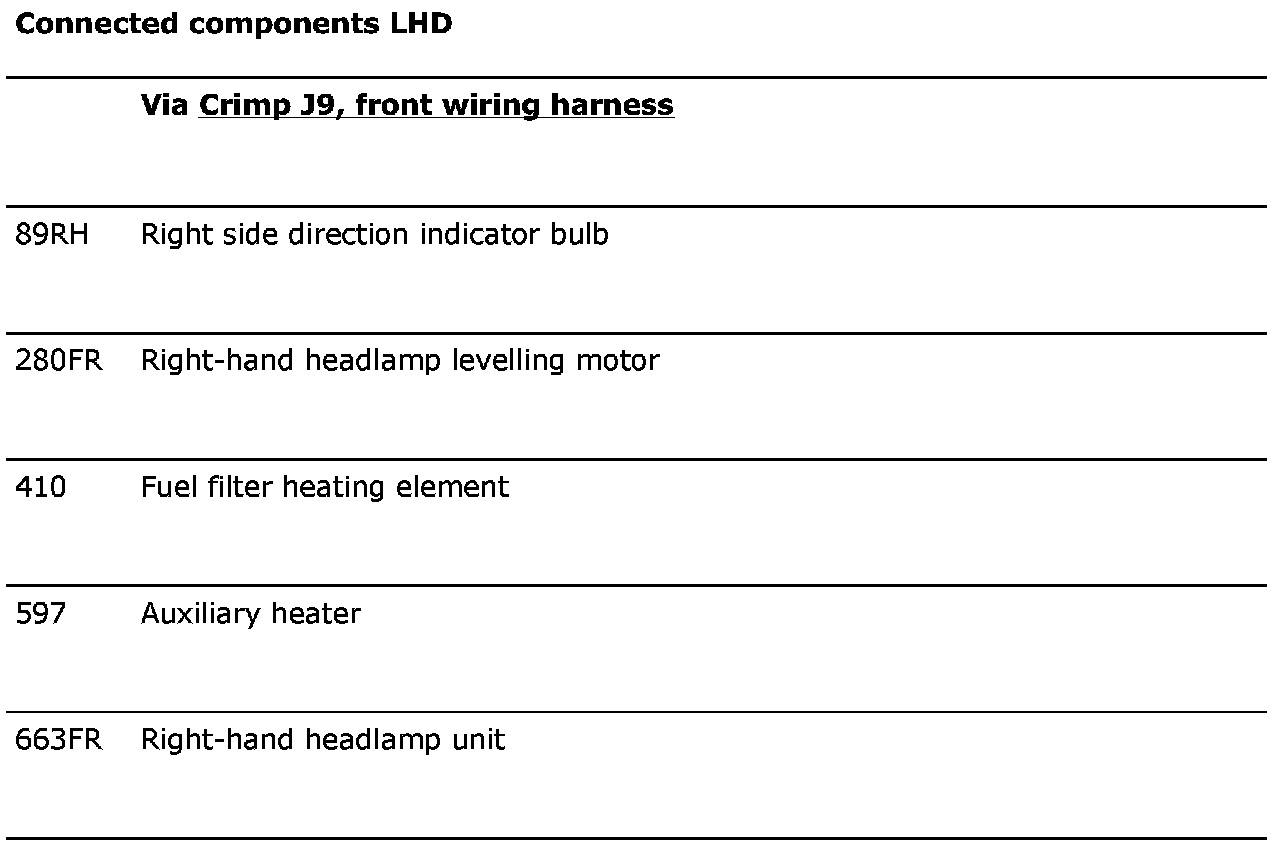

Connected Components:
