Crimp Connection J96, Main Harness

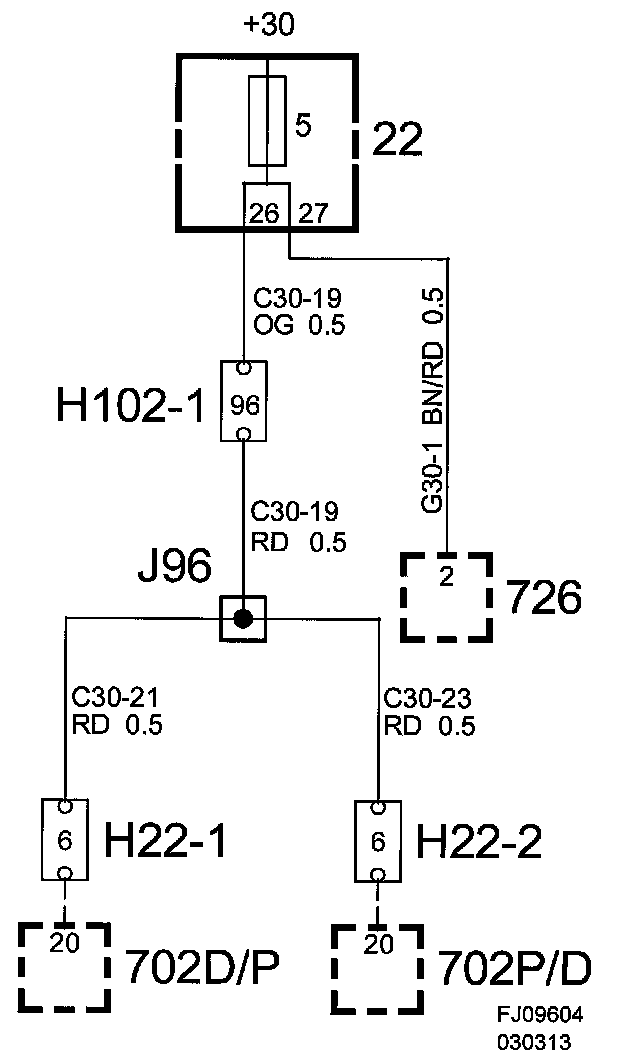

Crimp J96, Main Wiring Harness

Location: Approx. 160 mm from branching point to LH front door towards connector H102-1

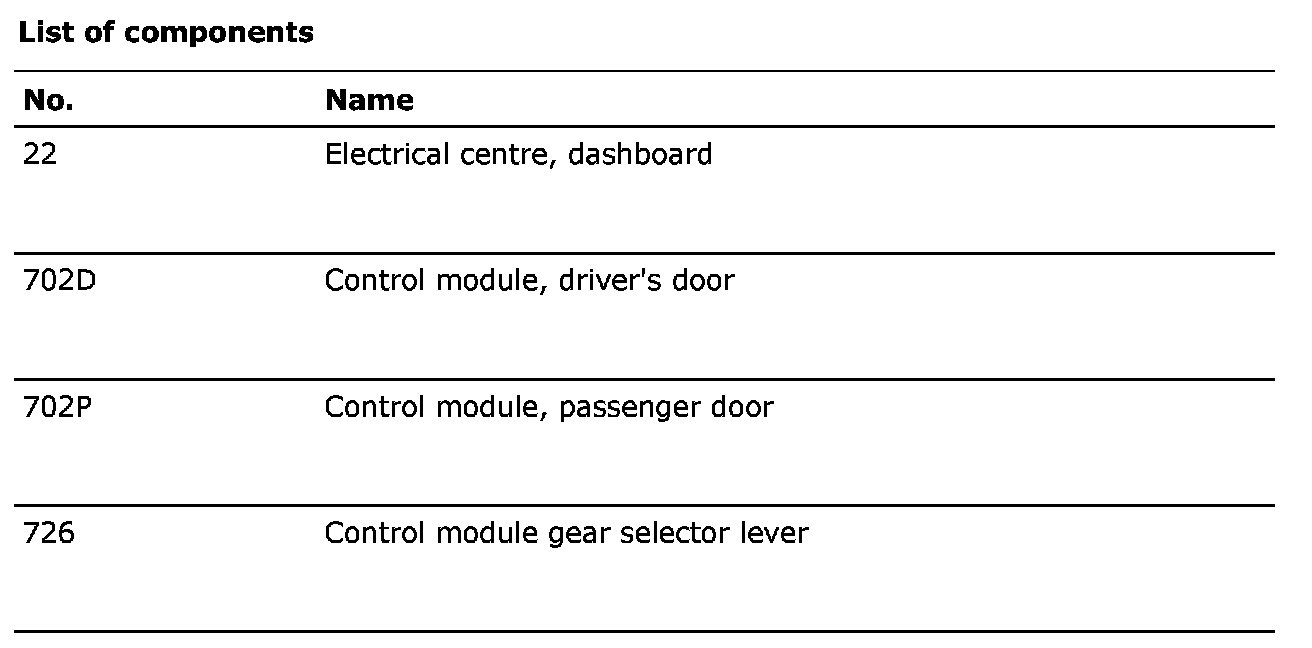

List Of Components:
