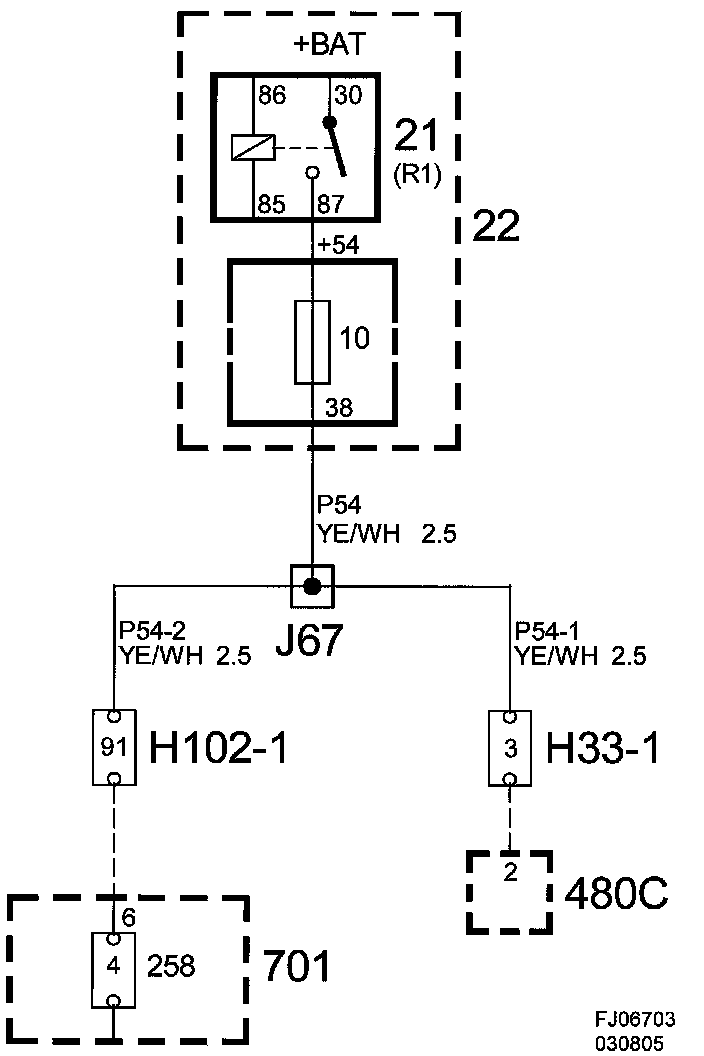

Crimp Connection J67, Instrument Harness



Crimp Connection J67, Instrument Harness

Location:

LHD: Approx. 150 mm from branching point left front floor lighting towards connector H102-1

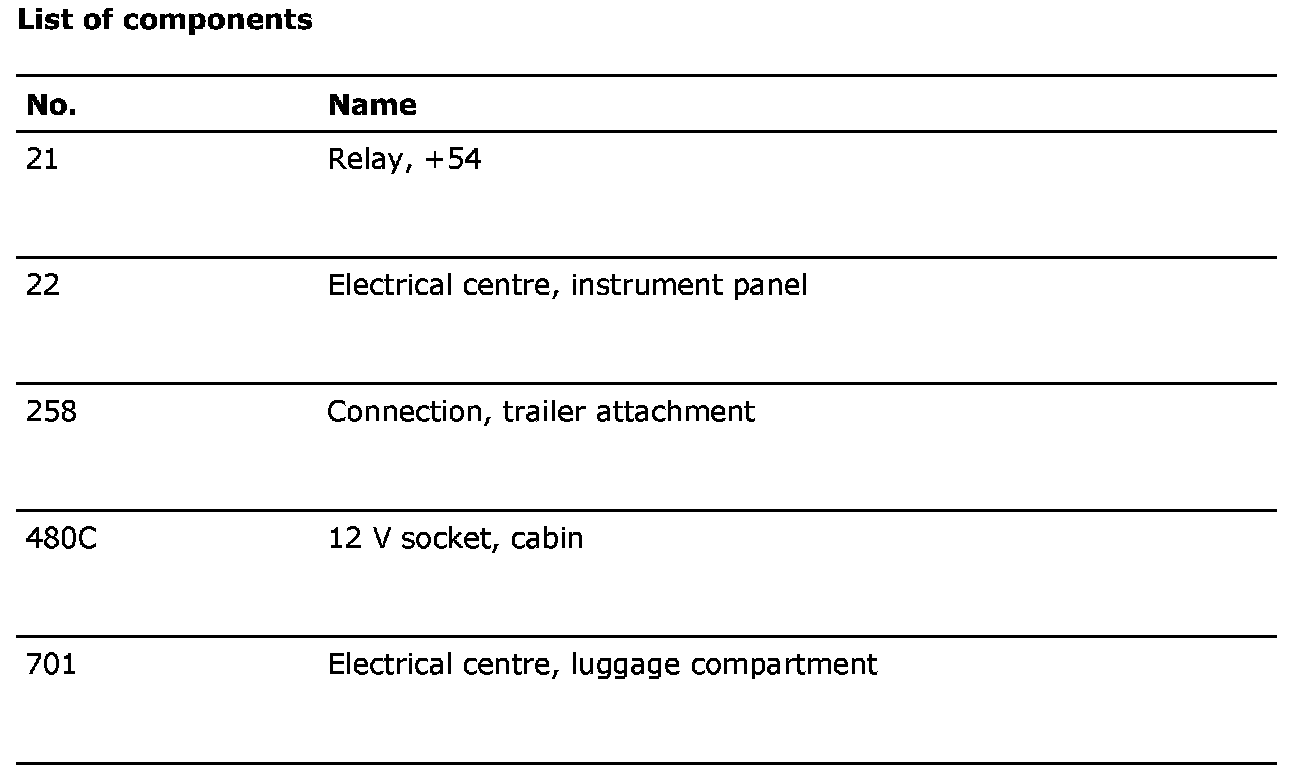

List Of Components:
