Crimp Connection J42, Engine Harness, Trionic

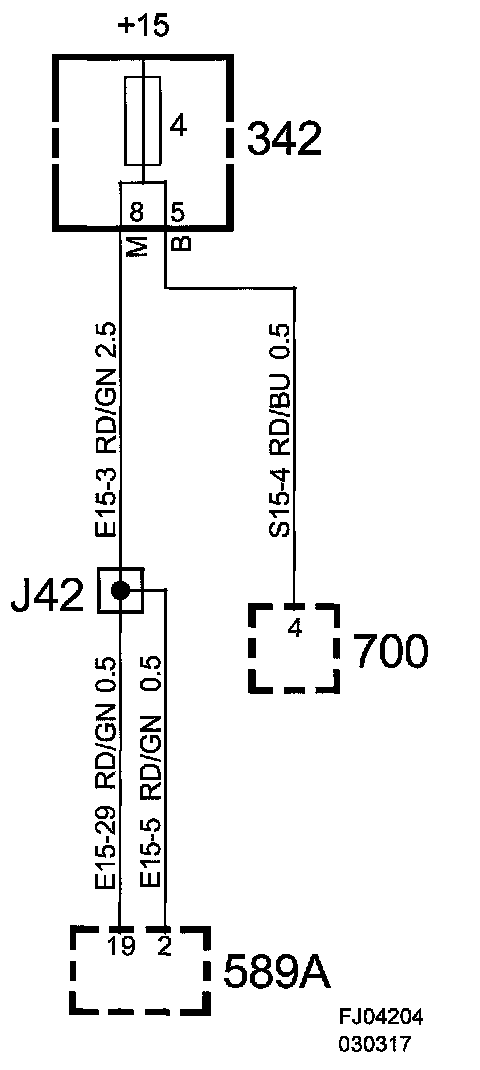

Crimp J42, Engine Harness, Trionic

Location: In the branching point to the power steering fluid pressure switch

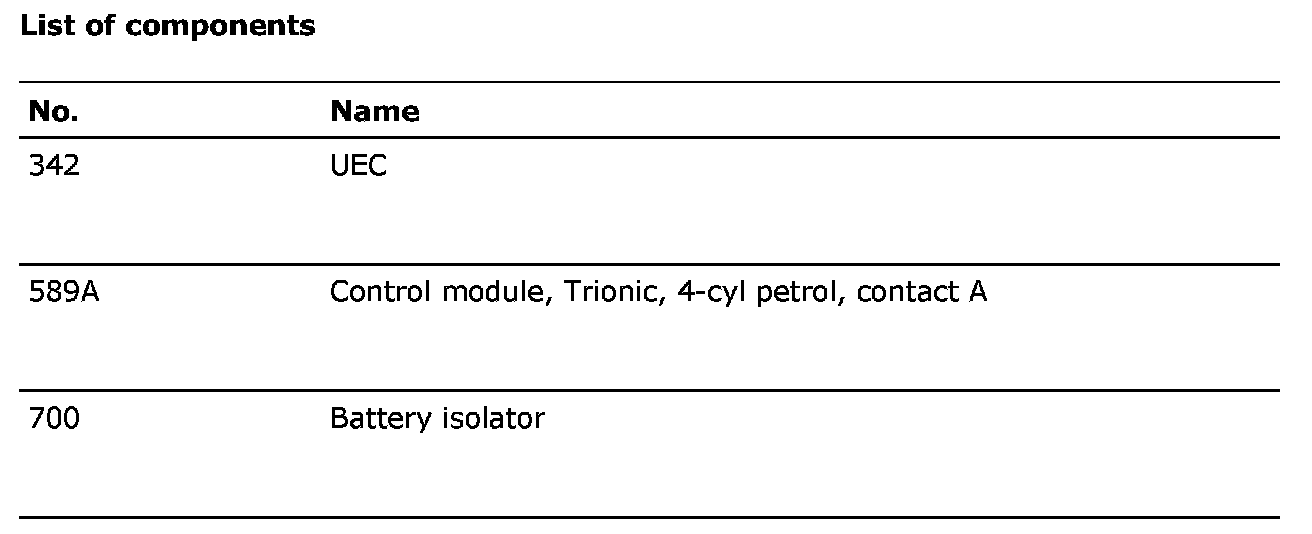

List Of Components:
