Crimp Connection J33, Engine Harness, Trionic

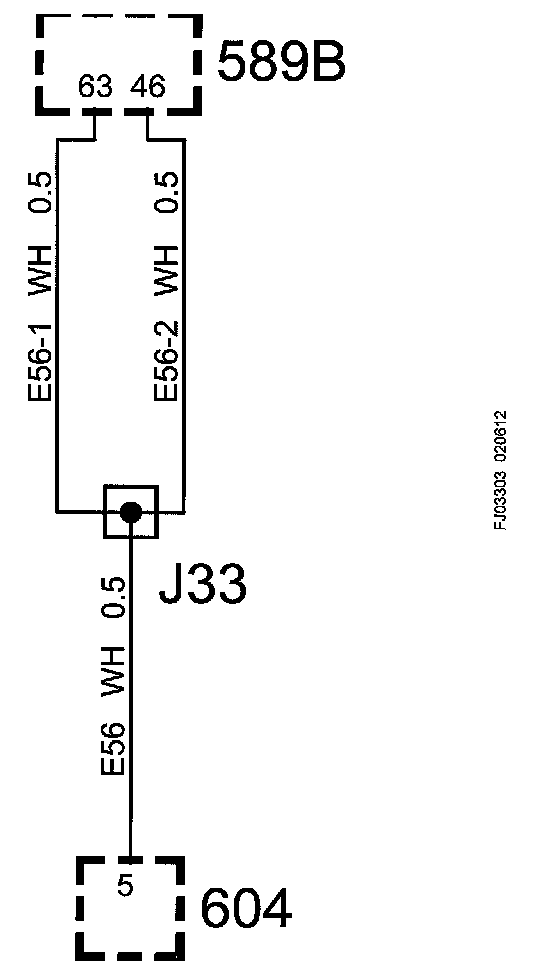

Crimp J33, Engine Harness, Trionic

Location: Approx. 20 mm from branching of engine control module switch B towards its switch A

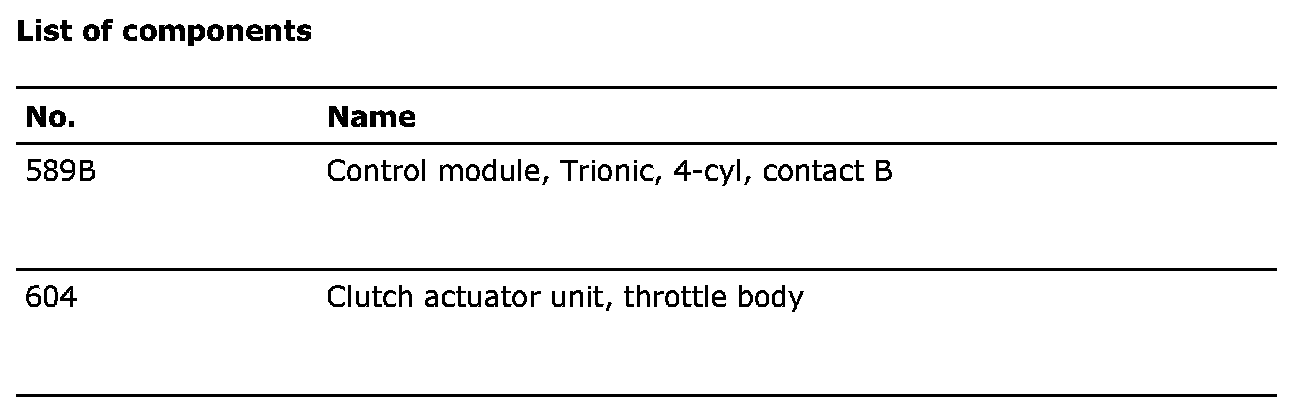

List Of Components:
