Crimp Connection J26, Engine Harness, Trionic

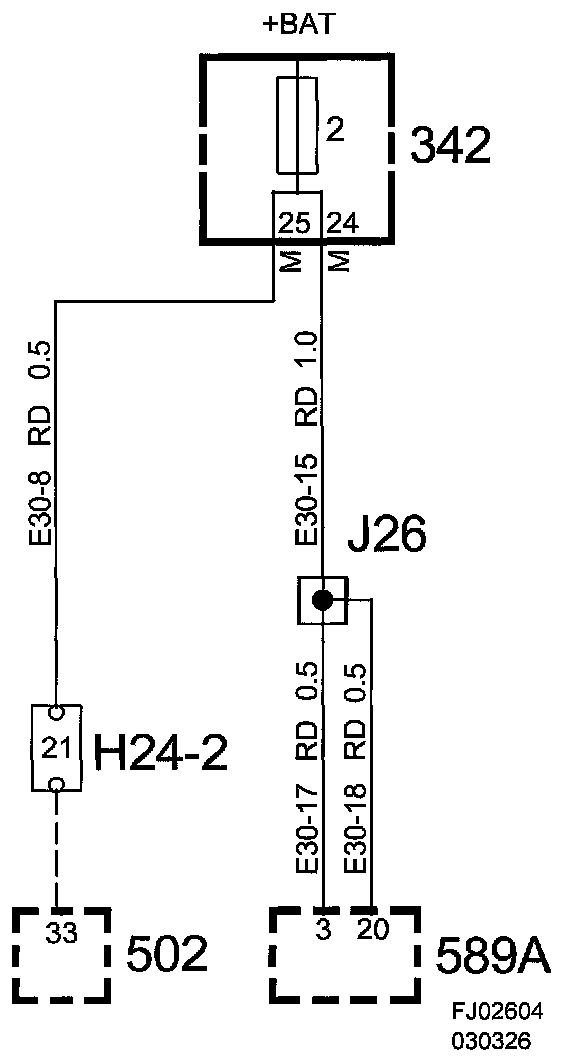

Crimp J26, Engine Harness, Trionic

Location: Approx. 210 mm from branching of connector H24-2 towards the engine control module

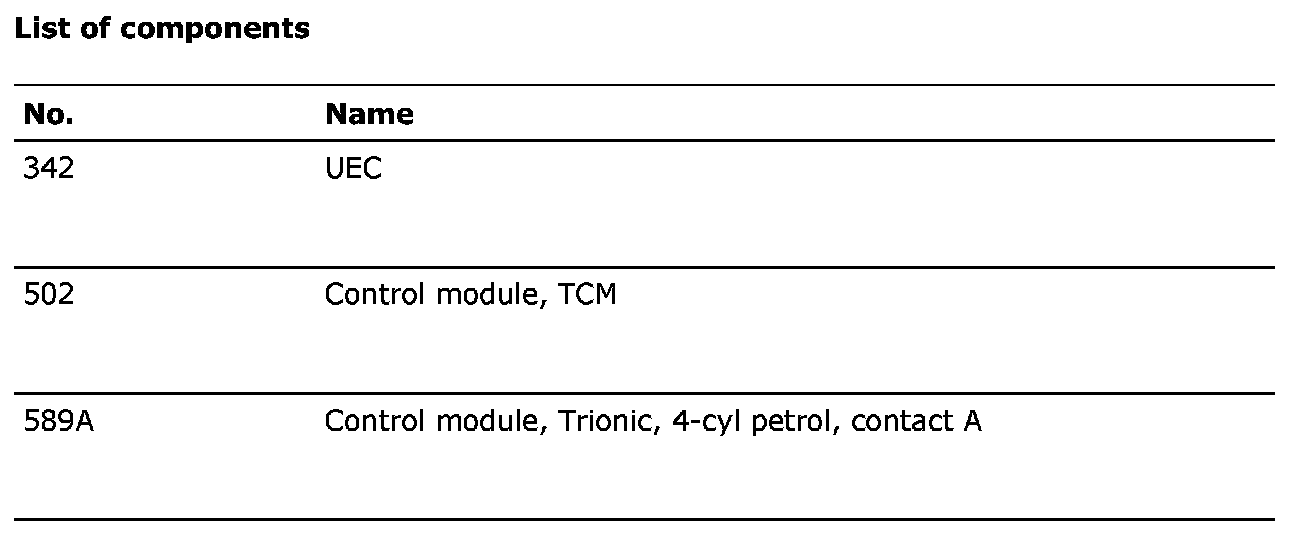

List Of Components:
