Crimp Connection J110, Main Harness
Crimp Connection J110, Main Harness

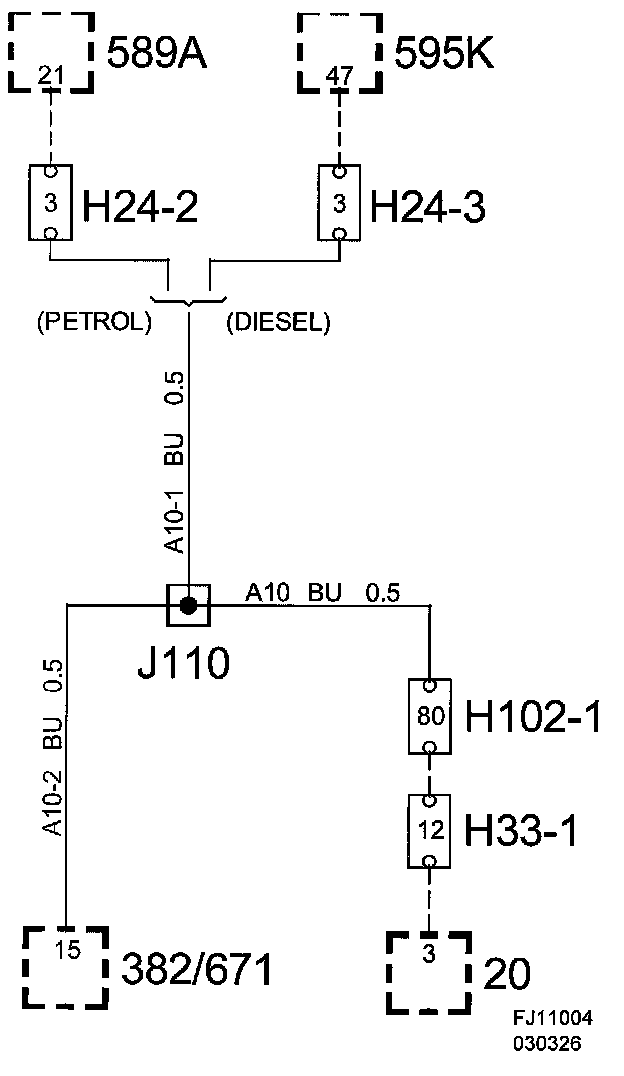

Crimp J110, Main Harness
Location:
Approx. 100 mm
from connector H24-2/3

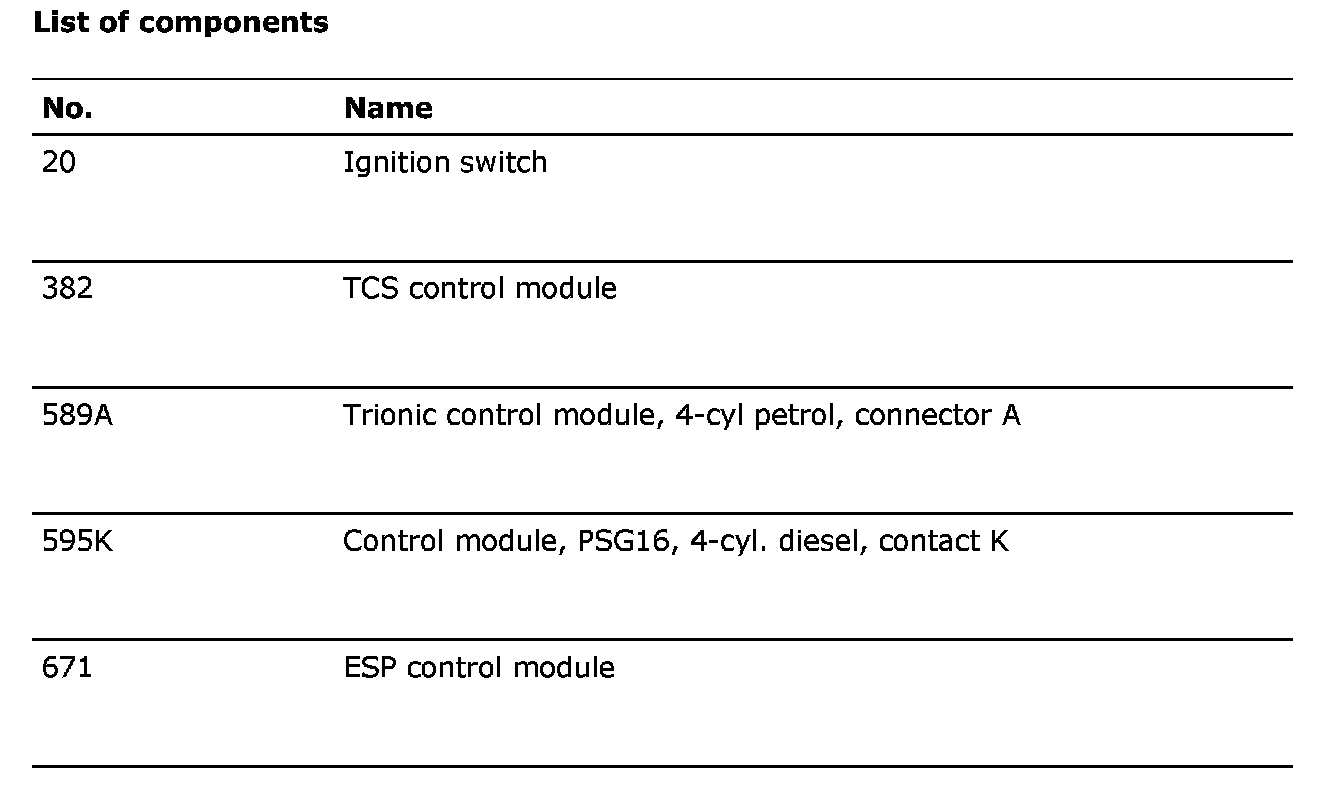

List Of Components:
