Crimp Connection J104, Main Harness
Crimp Connection J104, Main Harness

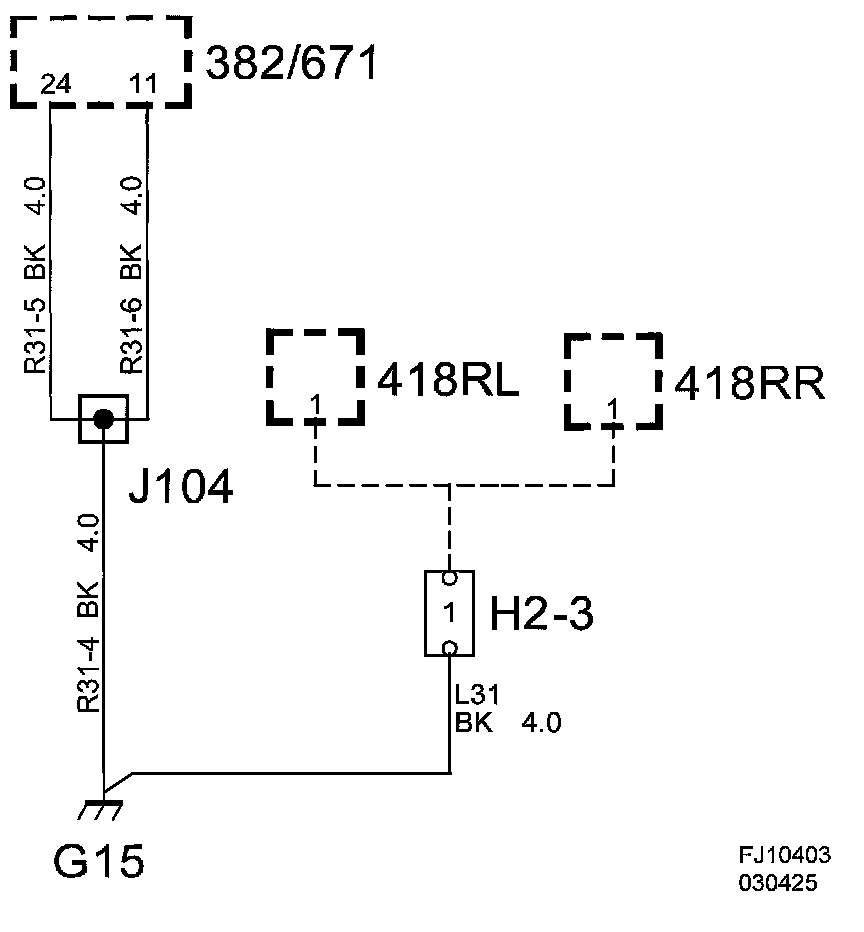

Crimp J104, Main Harness
Location:
Approx. 120 mm
from connector to TCS/ESP control module

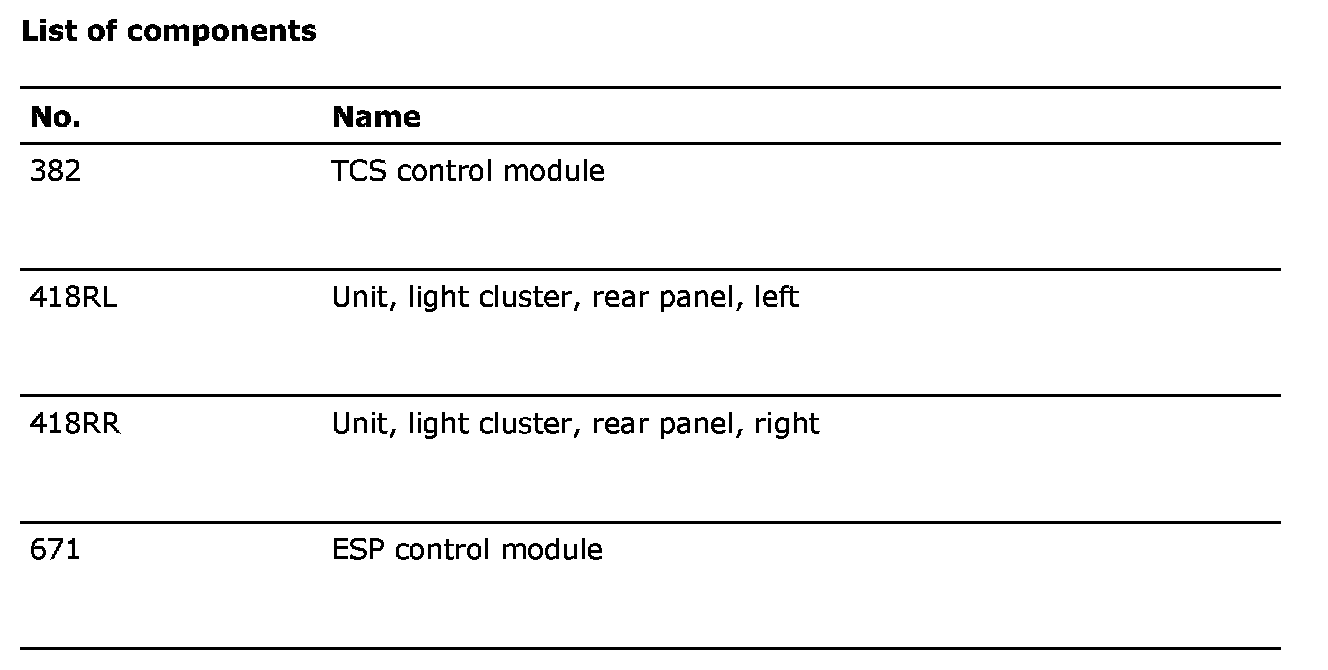

List Of Components:
