Crimp Connection J10, Front Harness

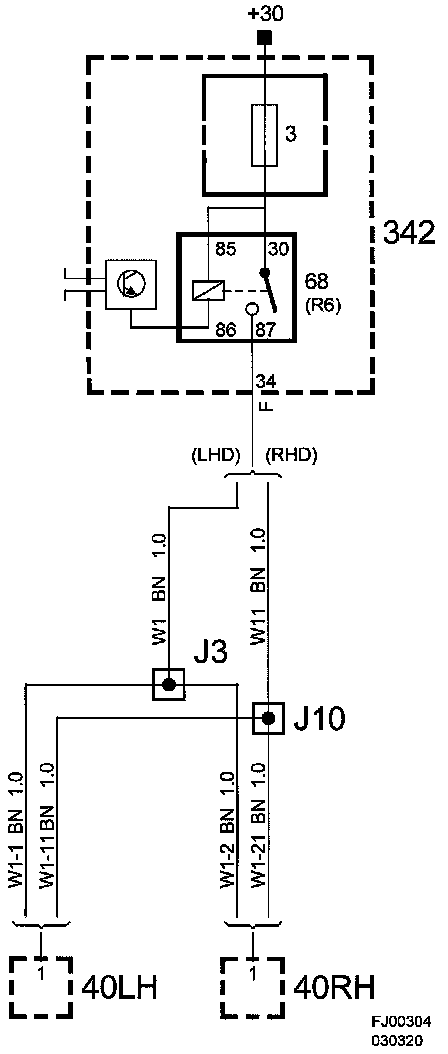

Crimp J10, Front Harness

Location: Approx. 230 mm from branching point grounding point G31 towards LH headlamp

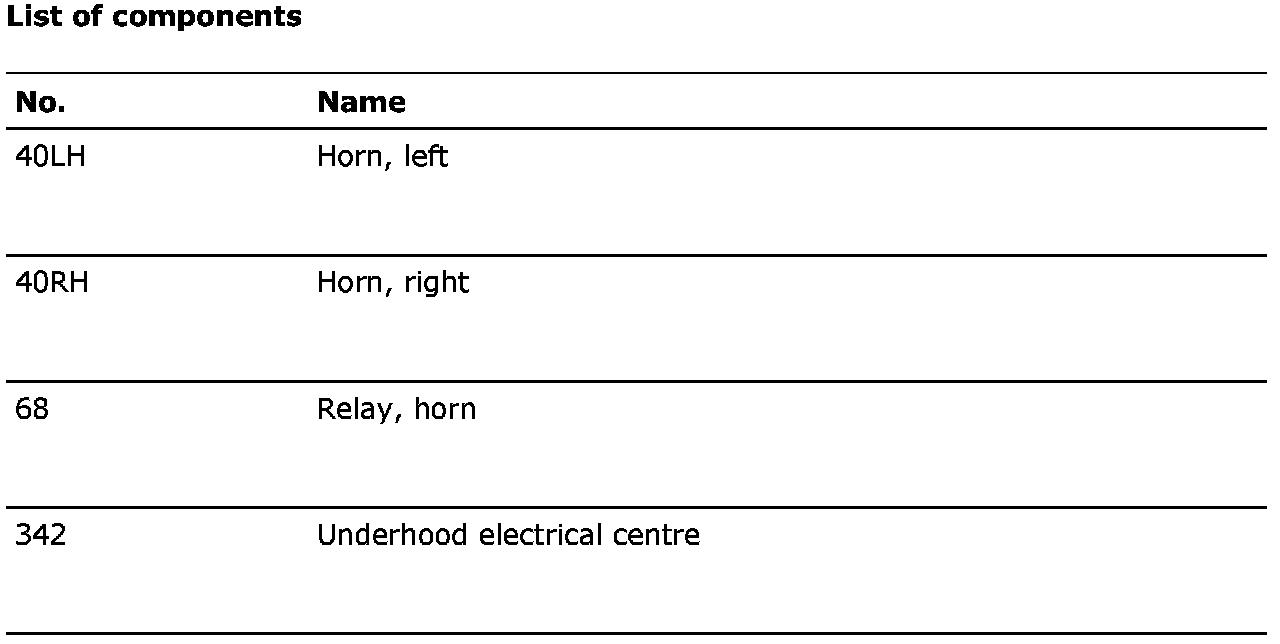

List Of Components:
