Home >> Saab >> 2004 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> System Diagram >> Seat Connectors In Numeric Order >> 357d (lowercase d is a motor)

357d (lowercase d is a motor)



Location: in the seat under the seat cushion

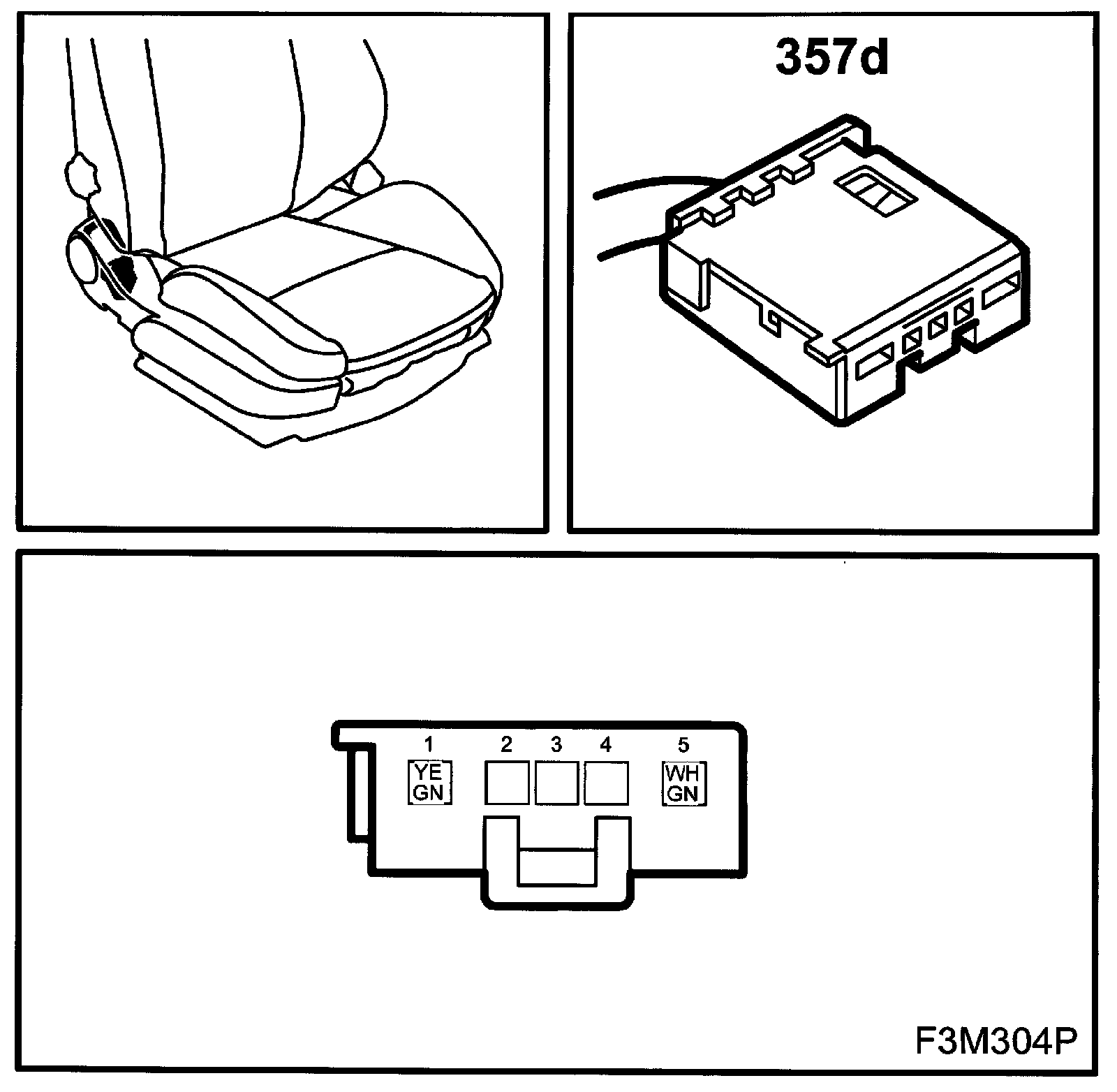

LH


Motor, Backrest Adjustment, Electrically Operated Seat (357d):

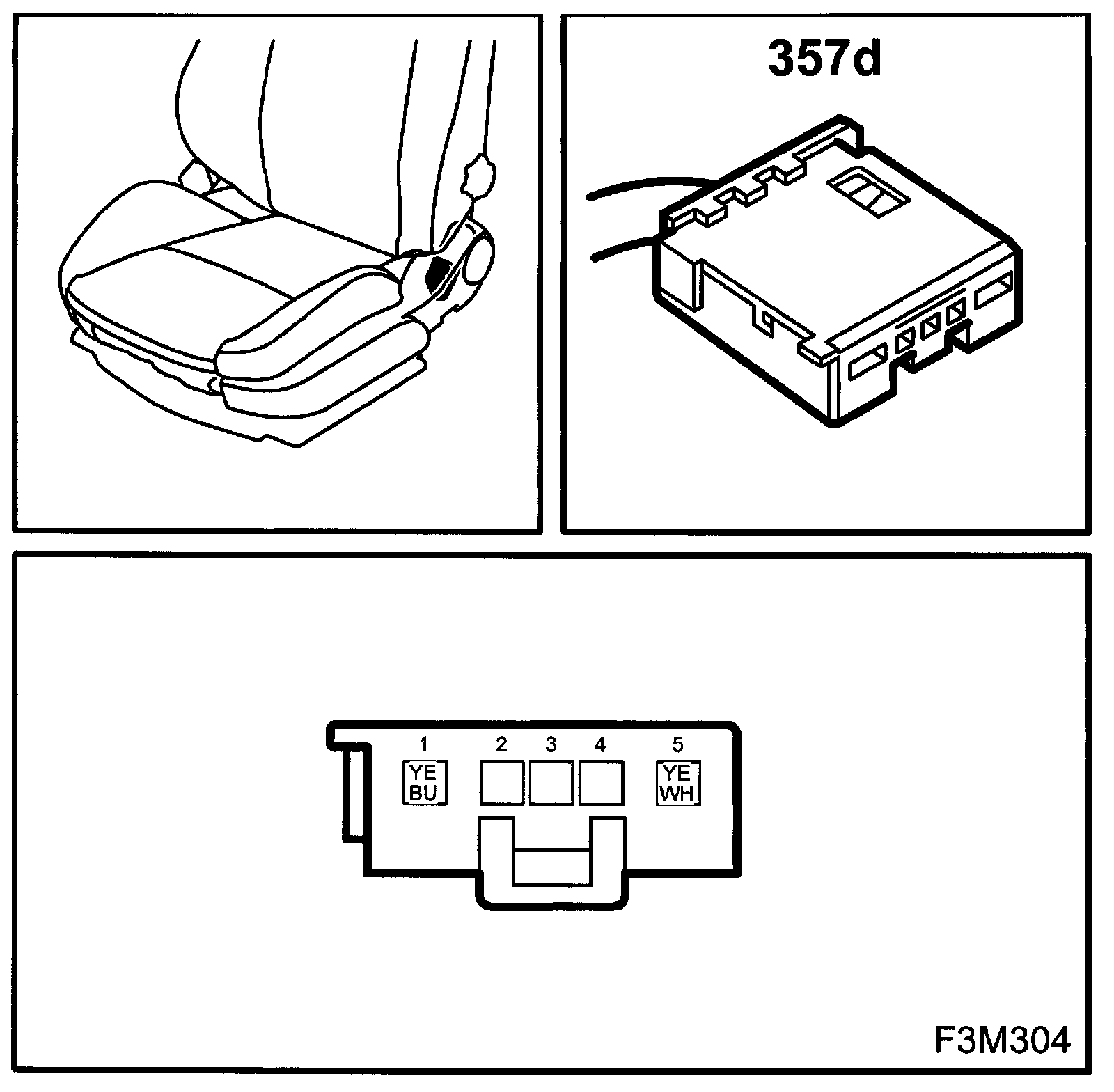

RH


Motor, Backrest Adjustment, Electrically Operated Seat (357d):
